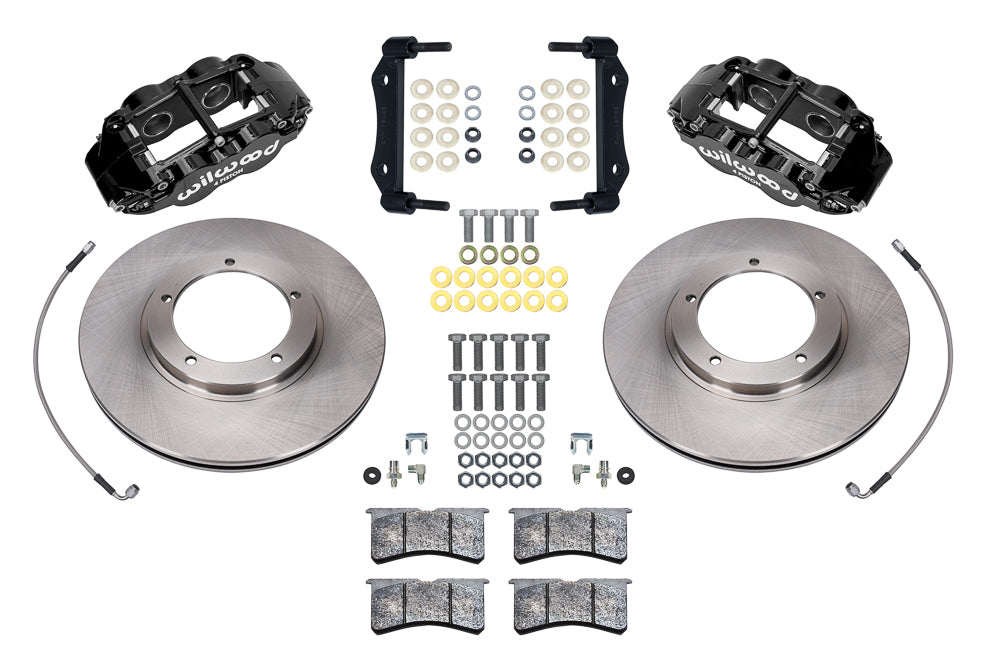

Wilwood black front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented undrilled 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners
Wilwood black front caliper beside the assembled 11.10-inch undrilled rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion

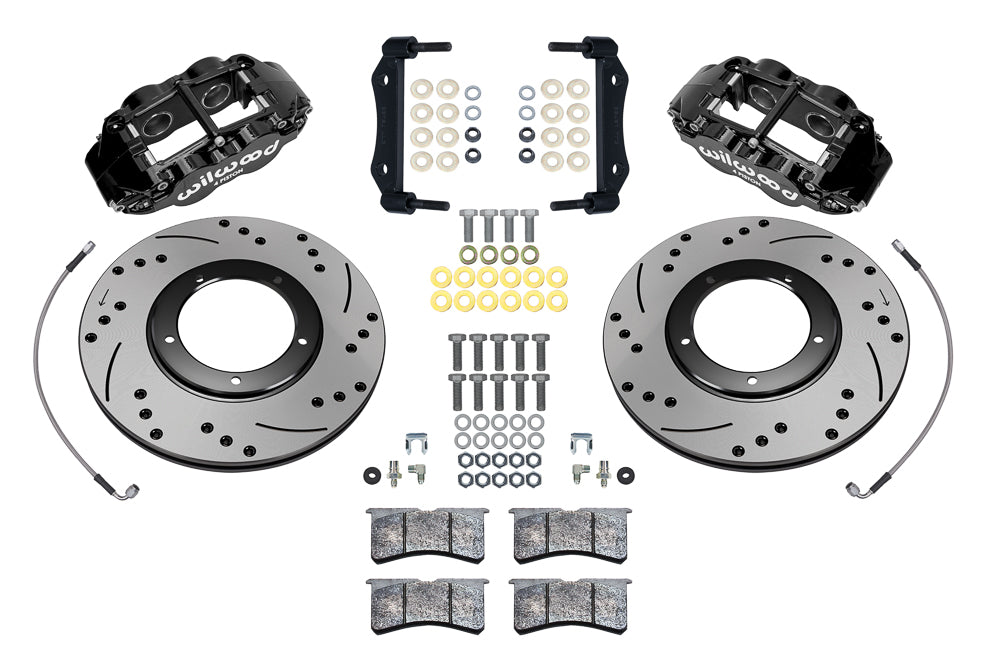

Wilwood black front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented drilled and slotted 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners

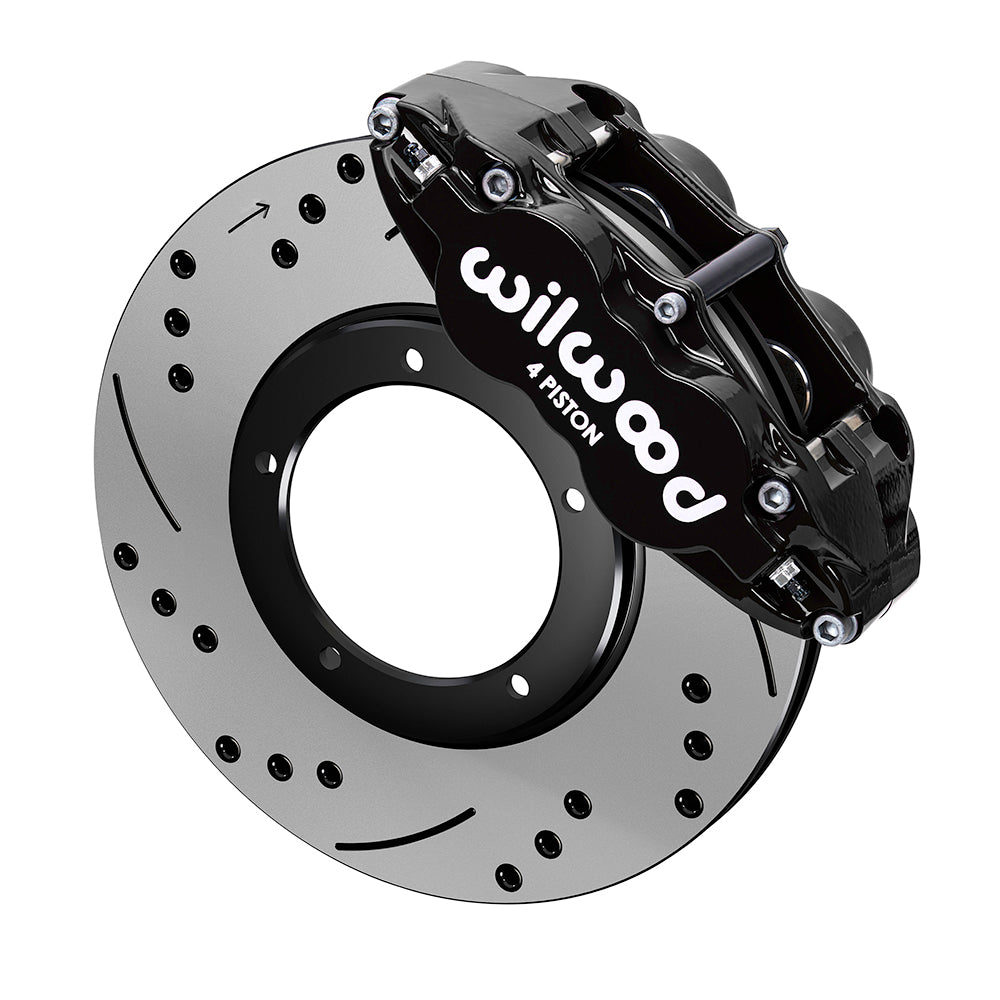

Wilwood black front caliper beside the assembled 11.10-inch drilled and slotted rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion

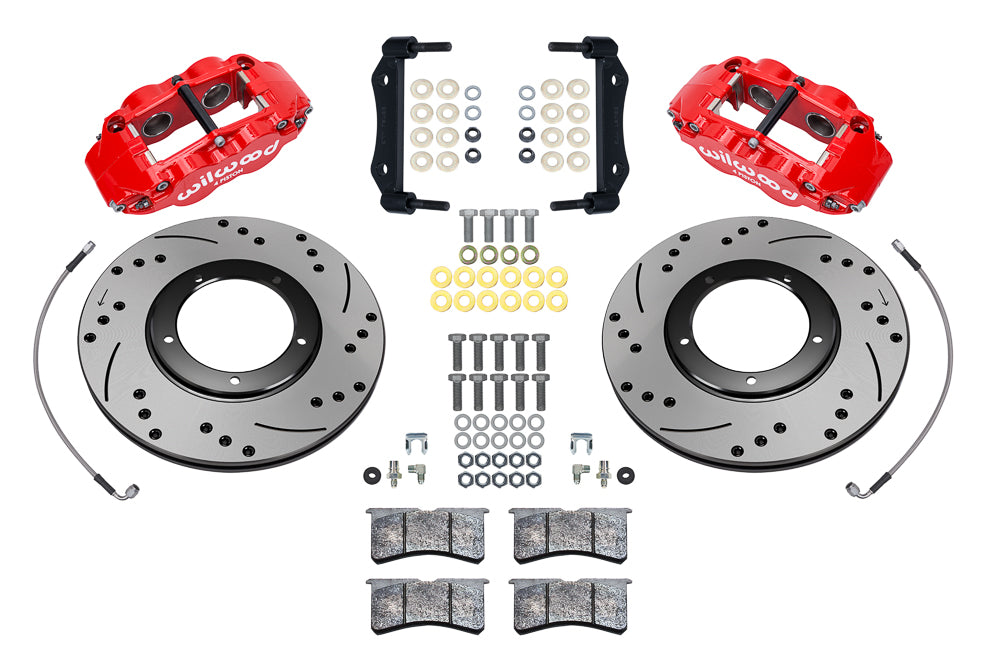

Wilwood red front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented drilled and slotted 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners

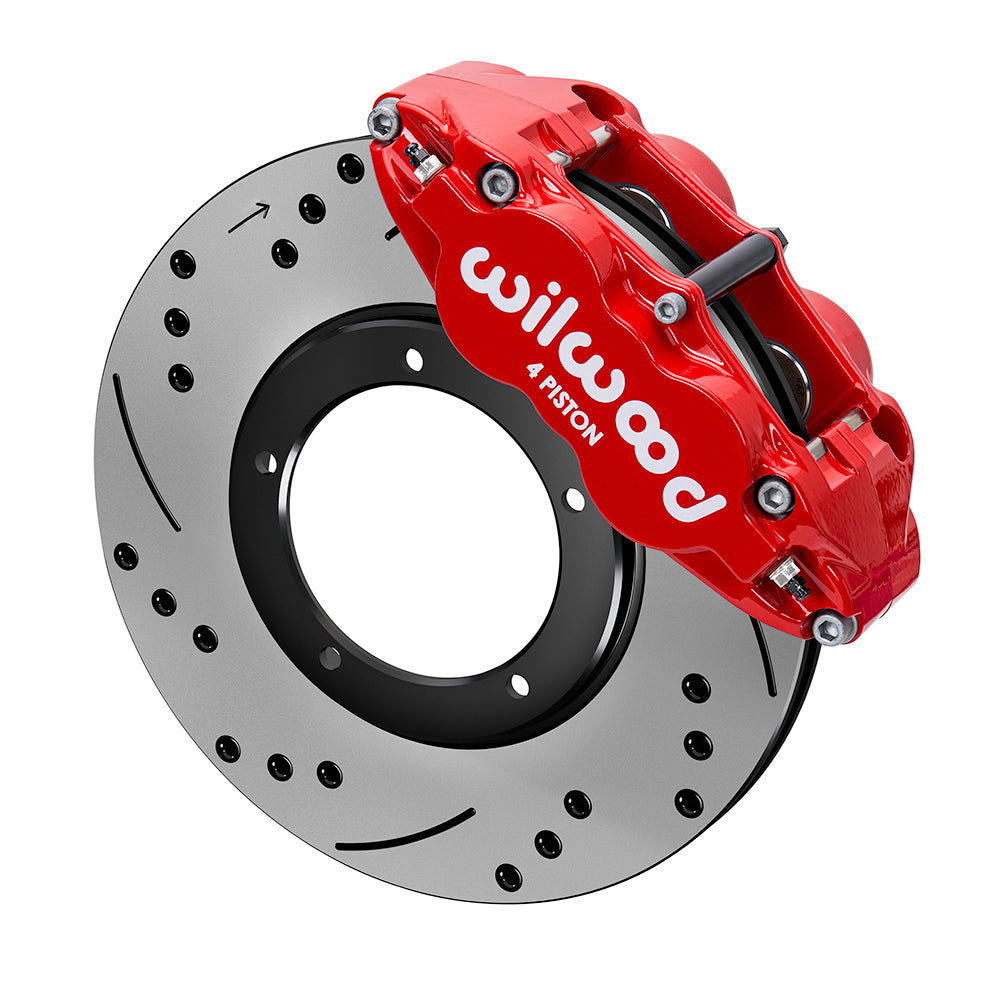

Wilwood red front caliper beside the assembled 11.10-inch drilled and slotted rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion

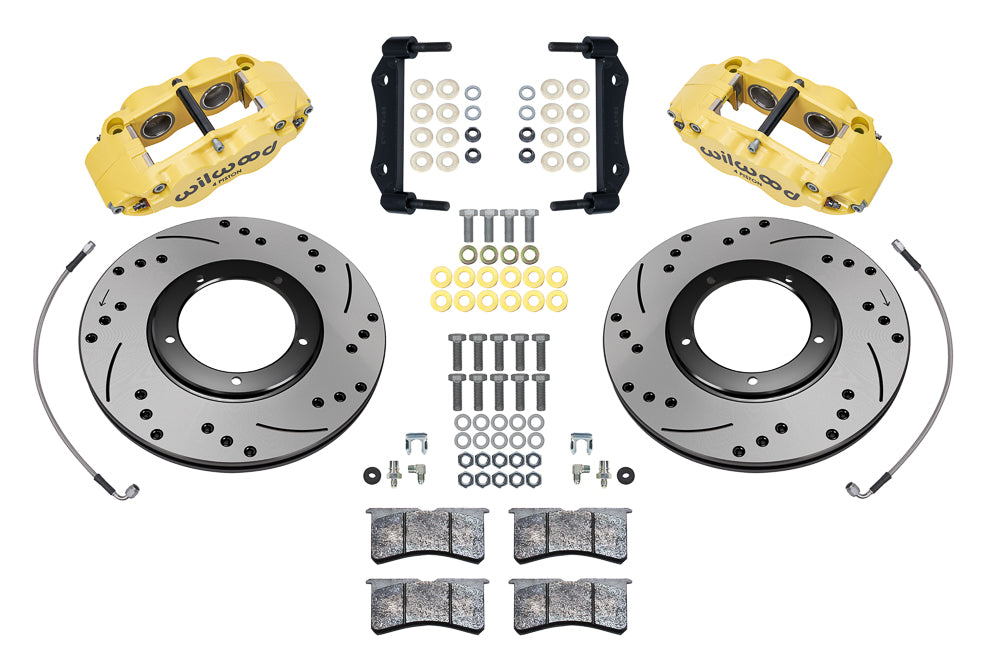

Wilwood yellow front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented drilled and slotted 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners

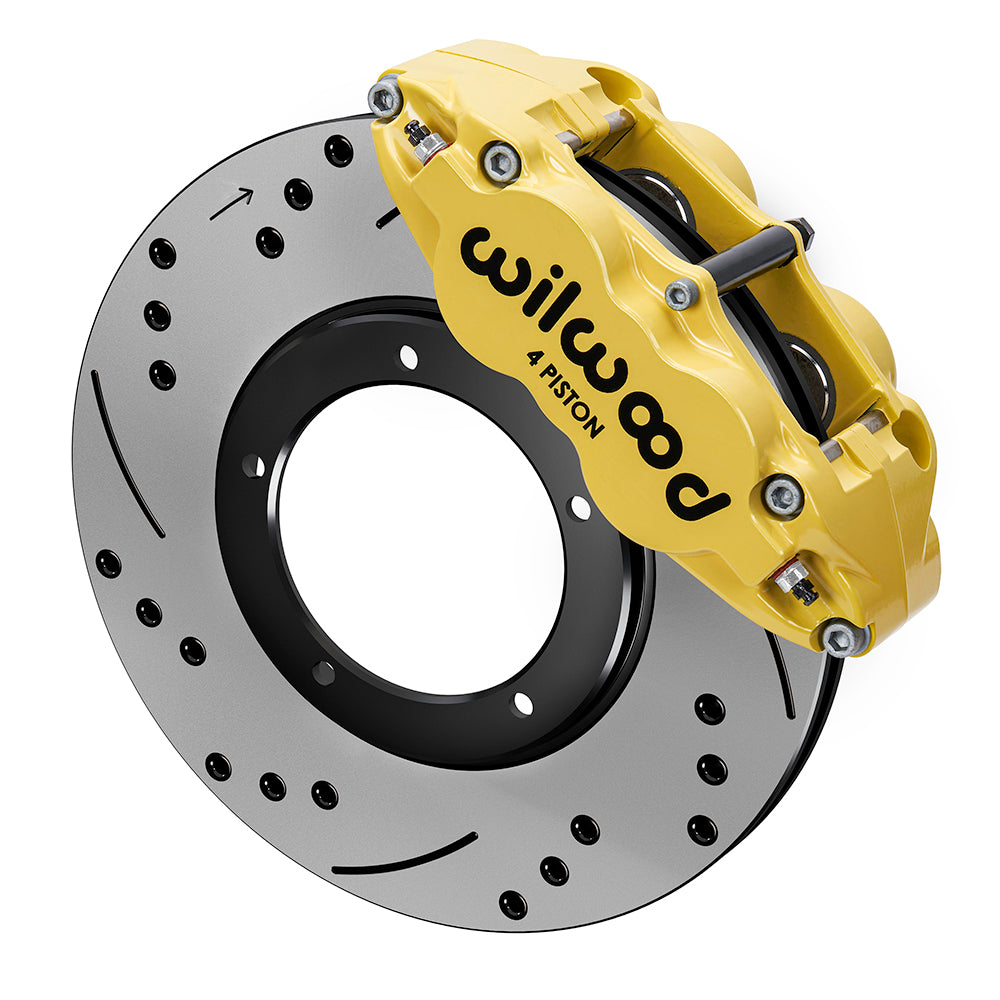

Wilwood yellow front caliper beside the assembled 11.10-inch drilled and slotted rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion

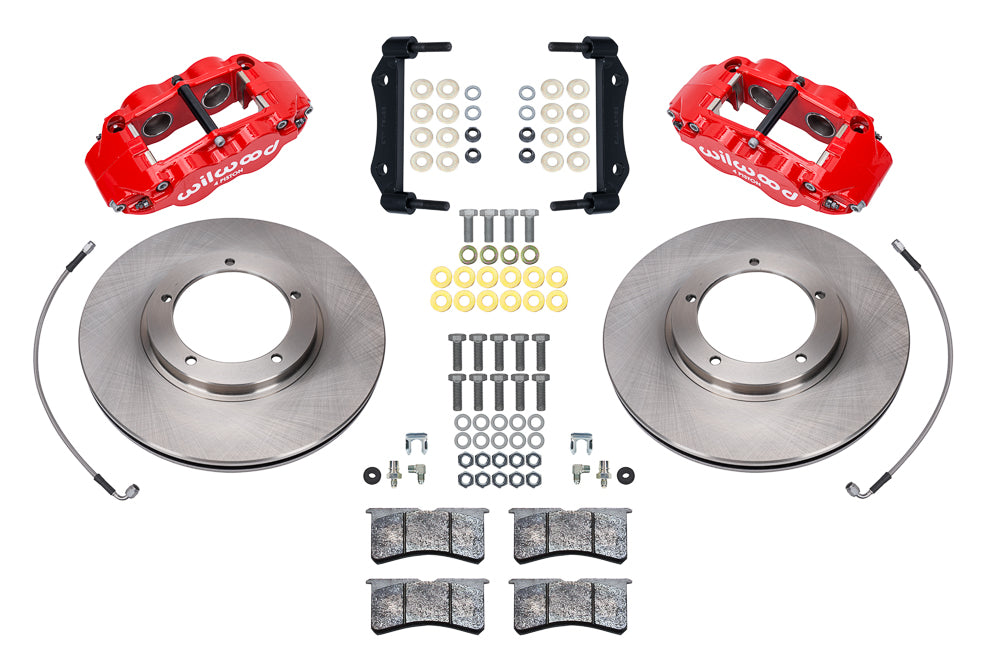

Wilwood red front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented undrilled 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners

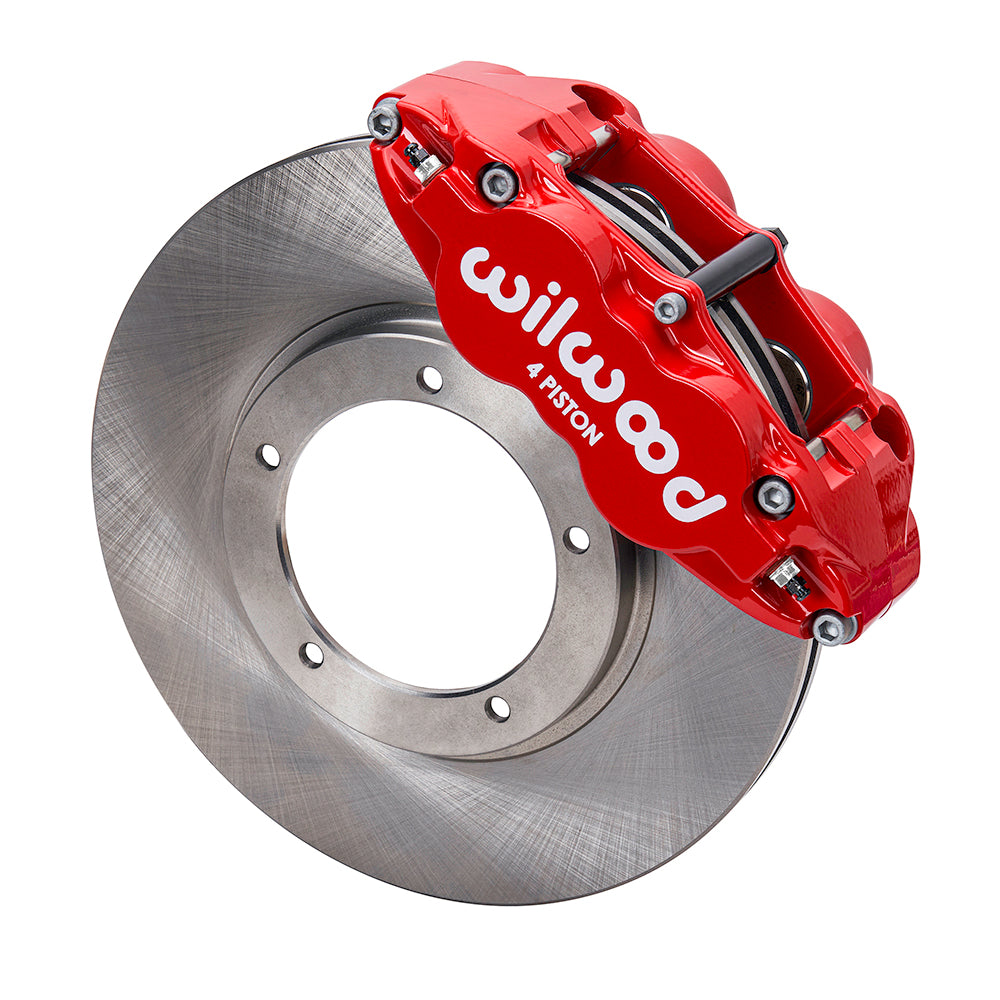

Wilwood red front caliper beside the assembled 11.10-inch undrilled rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion
Wilwood red Superlite front caliper mounted beside an undrilled rotor and five-stud hub in a Porsche 911 brake installation reference

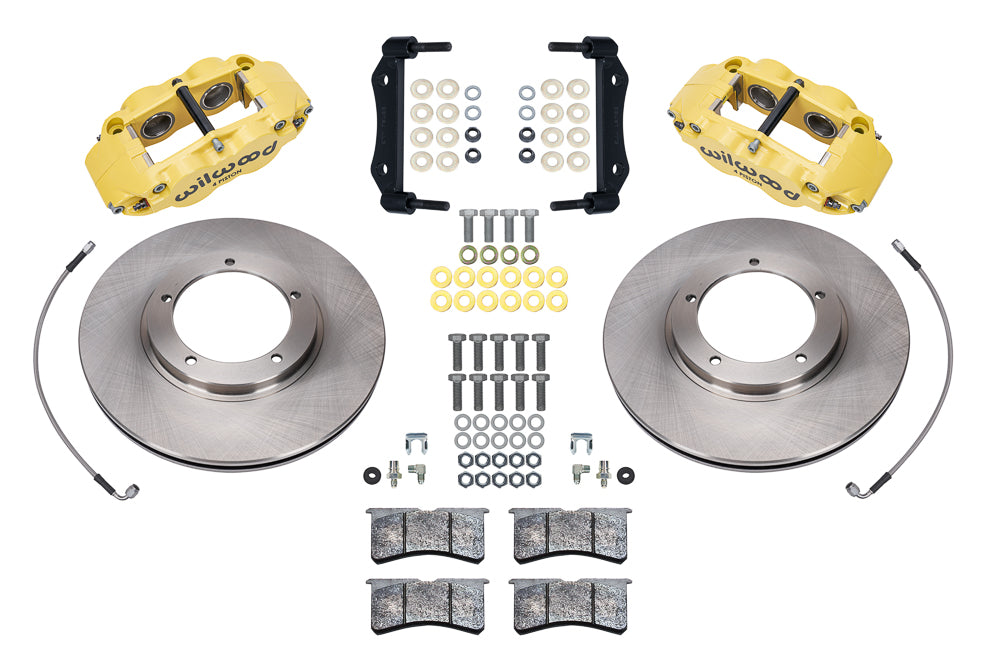

Wilwood front FNSL4R brake kit for Porsche 911 early 20 mm configuration: Two yellow FNSL4R calipers, plain-faced rotors with integral centers, mounting brackets, braided hoses, pads and fasteners arranged in pairs.

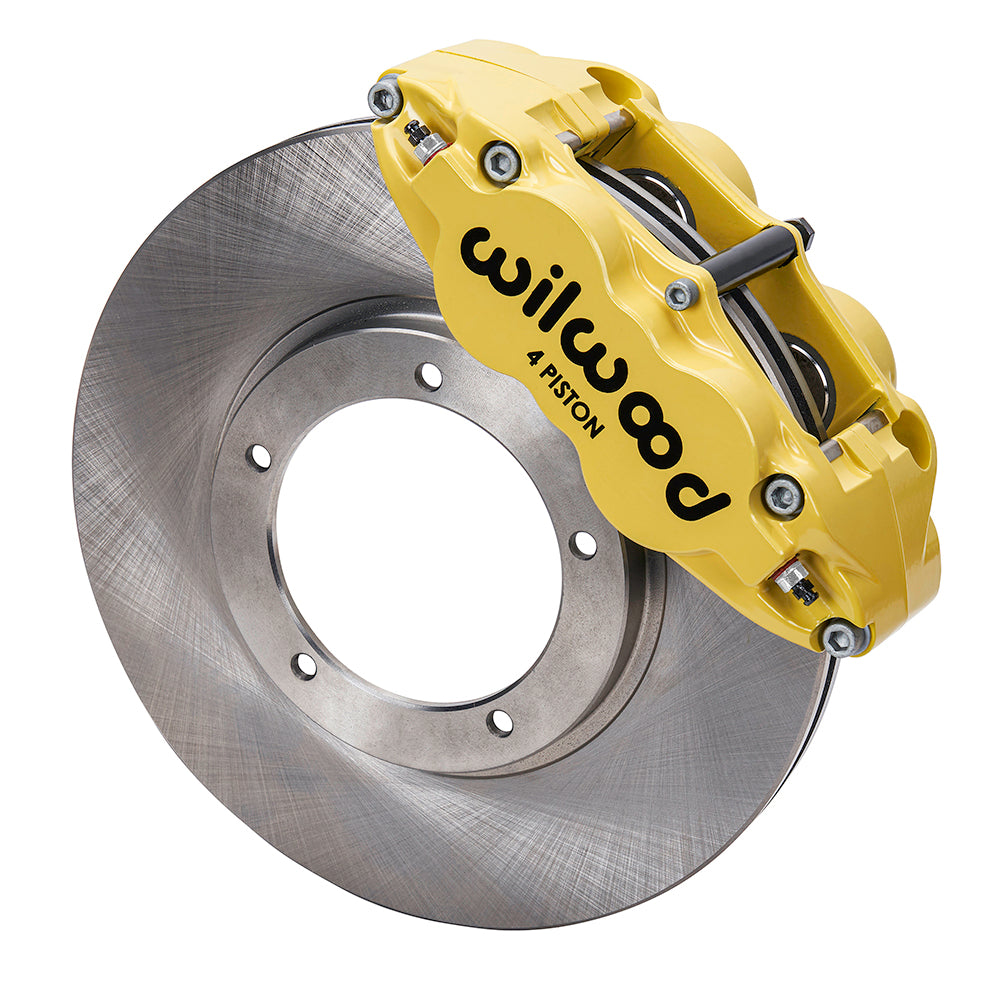

Wilwood front FNSL4R brake kit for Porsche 911 early 20 mm configuration: Yellow FNSL4R caliper positioned over a plain-faced rotor, with the central opening and five rotor-mount holes visible.
Wilwood black front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented undrilled 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners
Wilwood black front caliper beside the assembled 11.10-inch undrilled rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion
Wilwood black front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented drilled and slotted 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners
Wilwood black front caliper beside the assembled 11.10-inch drilled and slotted rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion
Wilwood red front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented drilled and slotted 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners
Wilwood red front caliper beside the assembled 11.10-inch drilled and slotted rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion
Wilwood yellow front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented drilled and slotted 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners
Wilwood yellow front caliper beside the assembled 11.10-inch drilled and slotted rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion
Wilwood red front brake kit for 1969–1983 Porsche 911 rotor-and-caliper applications, laid out with one-piece vented undrilled 11.10-inch rotors, caliper brackets, pads, braided hoses and fasteners
Wilwood red front caliper beside the assembled 11.10-inch undrilled rotor for the 1969–1983 Porsche 911 rotor-and-caliper brake conversion
Wilwood red Superlite front caliper mounted beside an undrilled rotor and five-stud hub in a Porsche 911 brake installation reference
Wilwood front FNSL4R brake kit for Porsche 911 early 20 mm configuration: Two yellow FNSL4R calipers, plain-faced rotors with integral centers, mounting brackets, braided hoses, pads and fasteners arranged in pairs.
Wilwood front FNSL4R brake kit for Porsche 911 early 20 mm configuration: Yellow FNSL4R caliper positioned over a plain-faced rotor, with the central opening and five rotor-mount holes visible.

Wilwood Front Brake Kit for Porsche 911 (1969–1983) – Superlite 4R

SKU: 140-16679

$1,134.23 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Refresh both front brakes with four-piston Superlite 4R calipers, new 11.10-inch vented rotors, BP-10 pads and braided hoses. The kit retains the compatible original hubs.

Vehicle Fitment

Vehicle fitment and required brake configuration
Porsche model Years Version / application Required brake setup
911 1969–1974 S-type front struts 3.50-inch S/A front caliper mounts; 20 mm front-rotor configuration
911 1975 Carrera 3.50-inch S/A front caliper mounts; 20 mm front-rotor configuration
911 1975–1977 S 3.50-inch S/A front caliper mounts; 20 mm front-rotor configuration
911 1978–1983 SC 3.50-inch S/A front caliper mounts; 20 mm front-rotor configuration
911 1983 Base 3.50-inch S/A front caliper mounts; 20 mm front-rotor configuration

Match the brakes and suspension actually fitted to the car. Changed struts, hubs, uprights or previous brake conversions need a separate fitment check.

Measure between the centers of the caliper mounting holes, not across the strut tube. Use the mounting distance specified in the table.

Watch: How to measure your 911 front strut mounts

See where to measure the front caliper mounting holes, then compare the result with the requirement in the fitment table.

Why choose this kit?

  • Refresh both front brakes with four-piston calipers and new factory-diameter vented rotors while retaining the original hubs and compatible struts.
  • 4-piston Superlite 4R calipers: forged aluminum bodies with stainless steel pistons.
  • BP-10 street-performance pads: a practical compound for everyday response and wear. Dedicated track use may require a different pad compound, fluid and cooling plan.

What is included?

  • 2 Superlite 4R calipers in the selected finish, 4 pistons per caliper.
  • 1 axle set of BP-10 brake pads, enough for both front calipers.
  • 2 vented rotors, 11.10 × 0.80 inches, in the selected surface pattern.
  • 2 caliper mounting brackets with the specified mounting hardware and alignment shims.
  • 1 front braided stainless steel flexline kit, part 220-16709, serving both wheels with the specified connection hardware.

Reused or purchased separately: Wheel hubs, struts/uprights, master cylinder, brake booster, wheels and brake fluid are not included.

Wheel clearance and installation

Wilwood lists a 15-inch nominal minimum wheel diameter. Diameter alone does not confirm fit: check the barrel and spoke profile against the wheel-clearance drawing and Figure 2, page 3 of the instructions. Maintain at least 0.080 inch (about 2mm) between the wheel and caliper in all areas.

The installer must check hose fittings, length and clearance through full suspension travel and steering lock. Bracket and caliper shimming are part of the alignment procedure; the kit is not an assembled hub/rotor unit.

Common questions

Does one kit cover the whole car?

No. Quantity 1 covers both front wheels. The opposite axle is a separate purchase; select it for your car’s actual brake configuration and evaluate the finished front-to-rear balance.

Do I need a different master cylinder?

Wilwood’s instructions permit the stock master cylinder for the documented application. The installer must still confirm pedal travel, system condition and front-to-rear brake balance, especially on a modified car.

Need help choosing? Ask PMB to check your Porsche’s brake configuration. Send the model/year, VIN, wheel size and photos of the installed brakes, plus caliper mounting-center and rotor-thickness measurements.

Installation Documents

Installation instructions and clearance drawings open in a new tab.

Installation must be performed by a person experienced in disc-brake systems. Follow the complete instructions for bleeding, bedding, testing and inspection before road use.
