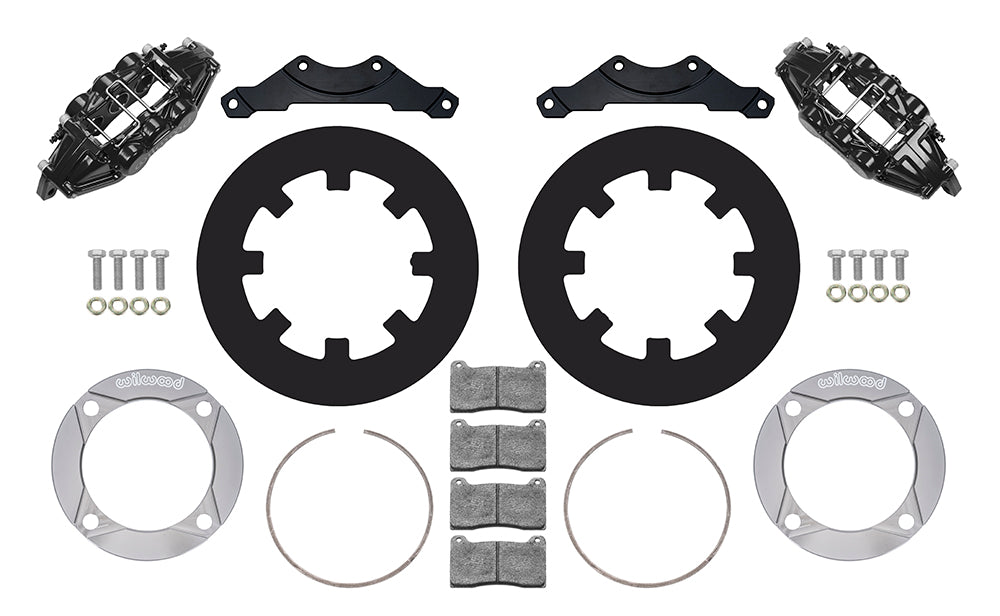

Wilwood black rear brake kit for Polaris RZR 1000 and RS1 UTV6 applications, laid out with dynamic undrilled 11.25-inch rotors, adapters, pads, caliper brackets and fasteners

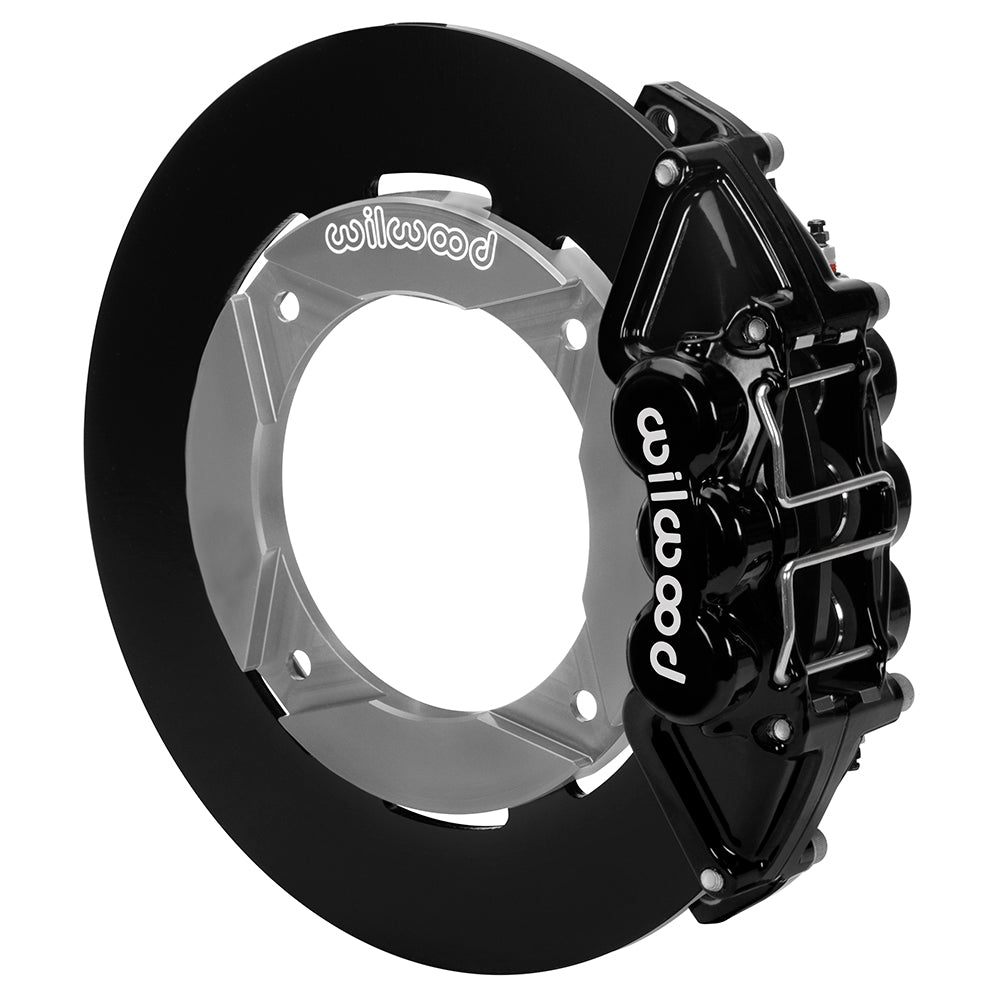

Wilwood black rear caliper beside the assembled 11.25-inch undrilled rotor for the Polaris RZR 1000 and RS1 UTV6 brake conversion
Wilwood black rear brake kit for Polaris RZR 1000 and RS1 UTV6 applications, laid out with dynamic undrilled 11.25-inch rotors, adapters, pads, caliper brackets and fasteners
Wilwood black rear caliper beside the assembled 11.25-inch undrilled rotor for the Polaris RZR 1000 and RS1 UTV6 brake conversion

Wilwood Plain Steel Rear Brake Conversion, Black Six-Piston UTV6 Calipers for Listed Polaris RZR 1000 and RS1 (2014–2023)

SKU: 140-16633

$1,480.00 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Listed Polaris RZR 1000 and RS1 rear applications use black six-piston calipers and plain 11.25-inch rotors. Verify wheel fit and the rotor adapter. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

  • Manufacturer part number: 140-16633
  • Kit function: Rear Brake Kits - Utility Vehicle; rear position
  • Service calipers: 6-piston UTV6; Black Powder Coat
  • Caliper mounting: Lug; piston material: stainless steel
  • Rotor package: 11.25 × 0.25 inches; Steel; solid; Plain Face
  • Supplied service-pad compound: BP-10
  • Hydraulic inlet: M10 x 1.25
  • Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
  • Hydraulic flexlines: Not included
  • Included installation items: mounting hardware
  • Not supplied: spindles, wheel hubs, master cylinder, brake booster
  • Quantity: Sold as a kit.

Fitment & Compatibility

Match the Polaris RZR 1000-family and RS1 year/trim rows in the table below before choosing this rear UTV6 assembly. The nonvented steel rotors mount dynamically to adapters on the existing hubs. DS-1500 includes shims for caliper alignment and specifies new supplied banjo bolts and crush washers; the stock banjo bolts must not be reused. Check pad position, wheel shape and the complete range of suspension movement. Aftermarket hubs or suspension parts require a separate clearance assessment, even when the machine is named in the chart.

Rear model coverage includes the listed XP 1000 and XP 4 1000 EPS variants, plus RS1, S 1000 and S4 1000 applications. Later Sport, High Lifter and Ultimate trims are covered only for their specified years. Compare the rear hub and upright on the actual machine; an RZR family name is not a substitute for the complete year and trim row.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
2014-2019 Polaris RZR XP 1000 EPS Base Base Disc Disc Rear Kit 1
2014-2019 Polaris RZR XP 4 1000 EPS Base Base Disc Disc Rear Kit 1
2015 Polaris RZR XP 1000 EPS Desert Edition Base Base Disc Disc Rear Kit 1
2015 Polaris RZR XP 1000 EPS Fox Edition Base Base Disc Disc Rear Kit 1
2015-2019 Polaris RZR XP 1000 EPS High Lifter Edition Base Base Disc Disc Rear Kit 1
2017 Polaris RZR XP 1000 EPS Gold Matte Metallic LE Base Base Disc Disc Rear Kit 1
2017 Polaris RZR XP 1000 EPS Velocity Blue LE Base Base Disc Disc Rear Kit 1
2017-2019 Polaris RZR XP 4 1000 EPS High Lifter Edition Base Base Disc Disc Rear Kit 1
2018-2021 Polaris RZR RS1 Base Base Disc Disc Rear Kit 1
2018-2019 Polaris RZR XP 1000 EPS Ride Command Edition Base Base Disc Disc Rear Kit 1
2018-2019 Polaris RZR XP 1000 EPS Trails and Rock Edition Base Base Disc Disc Rear Kit 1
2018-2019 Polaris RZR XP 4 1000 EPS Ride Command Edition Base Base Disc Disc Rear Kit 1
2019-2020 Polaris RZR S4 1000 EPS Base Base Disc Disc Rear Kit 1
2019 Polaris RZR XP 1000 EPS DYNAMIX Edition Base Base Disc Disc Rear Kit 1
2019 Polaris RZR XP 4 1000 EPS DYNAMIX Edition Base Base Disc Disc Rear Kit 1
2020-2021 Polaris RZR S 1000 EPS Base Base Disc Disc Rear Kit 1
2020-2021 Polaris RZR XP 1000 Base Base Disc Disc Rear Kit 1
2020-2021 Polaris RZR XP 1000 High Lifter Edition Base Base Disc Disc Rear Kit 1
2020 Polaris RZR XP 1000 Limited Edition Base Base Disc Disc Rear Kit 1
2020-2023 Polaris RZR XP 1000 Premium Base Base Disc Disc Rear Kit 1
2020 Polaris RZR XP 1000 Trails and Rock Edition Base Base Disc Disc Rear Kit 1
2020-2021 Polaris RZR XP 4 1000 Base Base Disc Disc Rear Kit 1
2020-2021 Polaris RZR XP 4 1000 High Lifter Edition Base Base Disc Disc Rear Kit 1
2020 Polaris RZR XP 4 1000 Limited Edition Base Base Disc Disc Rear Kit 1
2020-2023 Polaris RZR XP 4 1000 Premium Base Base Disc Disc Rear Kit 1
2021-2022 Polaris RZR XP 1000 Trails & Rocks Base Base Disc Disc Rear Kit 1
2022 Polaris RZR XP 1000 High Lifter Base Base Disc Disc Rear Kit 1
2022-2023 Polaris RZR XP 1000 Sport Base Base Disc Disc Rear Kit 1
2022 Polaris RZR XP 4 1000 High Lifter Base Base Disc Disc Rear Kit 1
2022-2023 Polaris RZR XP 4 1000 Sport Base Base Disc Disc Rear Kit 1
2023 Polaris RZR XP 1000 Ultimate Base Base Disc Disc Rear Kit 1
2023 Polaris RZR XP 4 1000 Ultimate Base Base Disc Disc Rear Kit 1
