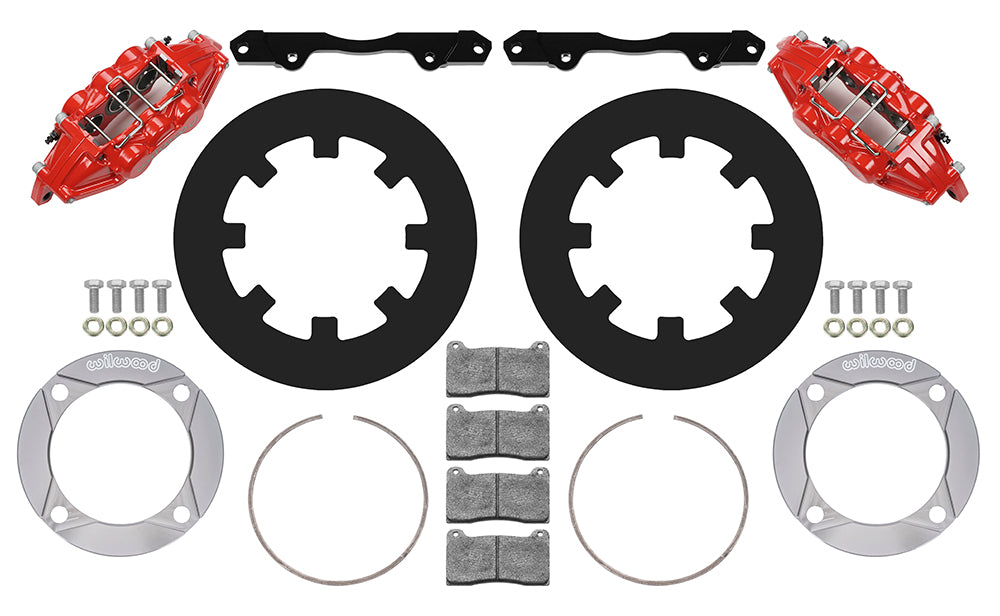

Wilwood red front brake kit for Polaris RZR 1000 and RS1 UTV6 applications, laid out with dynamic undrilled 11.25-inch rotors, adapters, pads, caliper brackets and fasteners

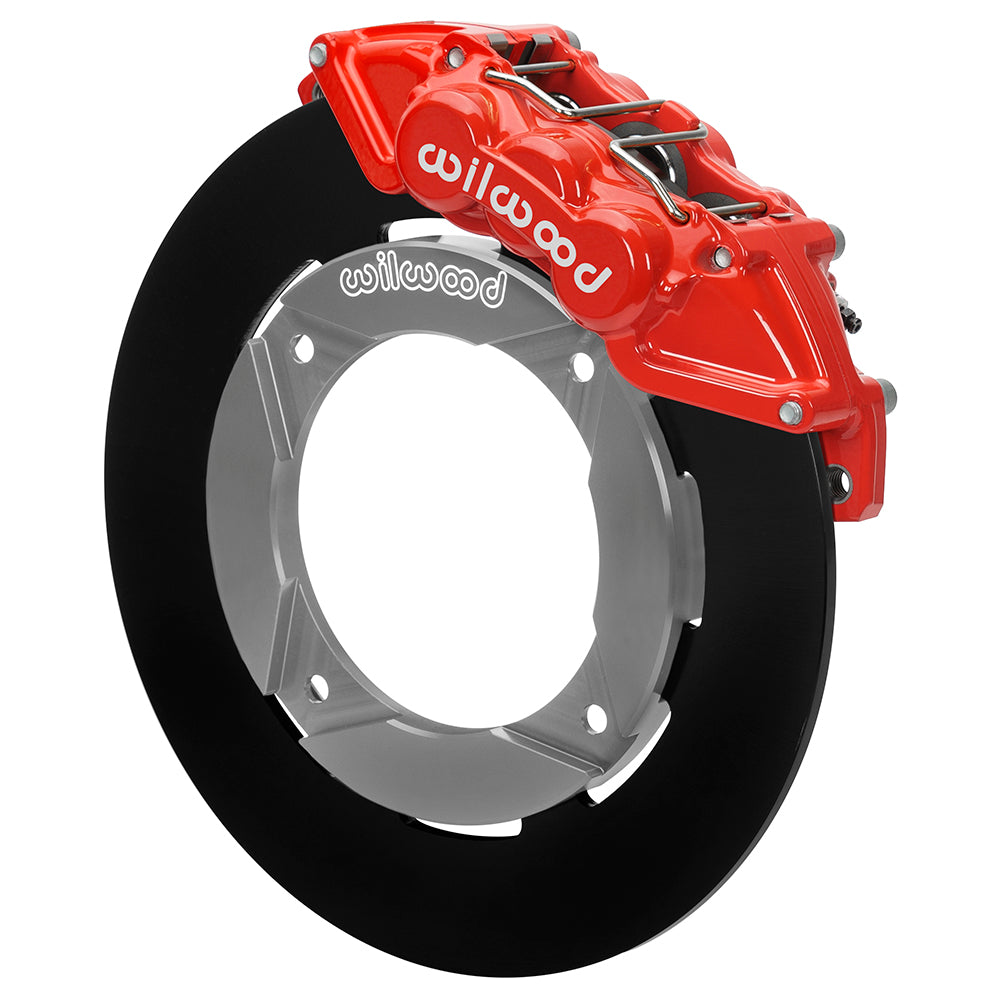

Wilwood red front caliper beside the assembled 11.25-inch undrilled rotor for the Polaris RZR 1000 and RS1 UTV6 brake conversion
Wilwood red front brake kit for Polaris RZR 1000 and RS1 UTV6 applications, laid out with dynamic undrilled 11.25-inch rotors, adapters, pads, caliper brackets and fasteners
Wilwood red front caliper beside the assembled 11.25-inch undrilled rotor for the Polaris RZR 1000 and RS1 UTV6 brake conversion

Wilwood Plain 11.25-Inch Front Brake Conversion with Red UTV6 Calipers for Polaris RZR 1000 and RS1 Applications (2014–2023)

SKU: 140-16632-R

$1,480.00 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Plain dynamic rotors and red UTV6 front calipers fit listed Polaris RZR 1000 and RS1 applications. Match year and trim, then verify upright clearance. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

  • Application / axle position: Front Brake Kits - Utility Vehicle; front position
  • Rotor specification: 11.25 × 0.25 inches; Steel; solid; Plain Face
  • Supplied service-pad compound: BP-10
  • Wheel-size starting point: 15 in; verify the complete clearance drawing
  • Flexline inclusion: Not included
  • Caliper family, piston count and finish: 6-piston UTV6; Red Powder Coat
  • Hydraulic inlet: M10 x 1.25
  • Caliper mounting: Lug; piston material: stainless steel
  • Items outside the kit: spindles, wheel hubs, master cylinder, brake booster
  • Supplied mounting components: mounting hardware
  • Manufacturer part number: 140-16632-R
  • Quantity: Sold as a kit.

Fitment & Compatibility

The table below includes the listed Polaris RZR XP 1000, XP 4 1000, S 1000, S4 1000 and RS1 configurations with year-specific trim coverage. The front conversion requires the upright grinding shown in DS-1499 for pad clearance. Reuse the factory hubs with the dynamic steel rotor adapters and use the supplied banjo bolts and crush washers. Do not reuse the original banjo bolts. Check the actual wheel section, at least 0.080-inch caliper clearance and the hose path through steering and full suspension articulation.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
2014-2019 Polaris RZR XP 1000 EPS Base Base Disc Disc Front Kit 1
2014-2019 Polaris RZR XP 4 1000 EPS Base Base Disc Disc Front Kit 1
2015 Polaris RZR XP 1000 EPS Desert Edition Base Base Disc Disc Front Kit 1
2015 Polaris RZR XP 1000 EPS Fox Edition Base Base Disc Disc Front Kit 1
2015-2019 Polaris RZR XP 1000 EPS High Lifter Edition Base Base Disc Disc Front Kit 1
2017 Polaris RZR XP 1000 EPS Gold Matte Metallic LE Base Base Disc Disc Front Kit 1
2017 Polaris RZR XP 1000 EPS Velocity Blue LE Base Base Disc Disc Front Kit 1
2017-2019 Polaris RZR XP 4 1000 EPS High Lifter Edition Base Base Disc Disc Front Kit 1
2018-2021 Polaris RZR RS1 Base Base Disc Disc Front Kit 1
2018-2019 Polaris RZR XP 1000 EPS Ride Command Edition Base Base Disc Disc Front Kit 1
2018-2019 Polaris RZR XP 1000 EPS Trails and Rock Edition Base Base Disc Disc Front Kit 1
2018-2019 Polaris RZR XP 4 1000 EPS Ride Command Edition Base Base Disc Disc Front Kit 1
2019-2020 Polaris RZR S4 1000 EPS Base Base Disc Disc Front Kit 1
2019 Polaris RZR XP 1000 EPS DYNAMIX Edition Base Base Disc Disc Front Kit 1
2019 Polaris RZR XP 4 1000 EPS DYNAMIX Edition Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR S 1000 EPS Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP 1000 Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP 1000 High Lifter Edition Base Base Disc Disc Front Kit 1
2020 Polaris RZR XP 1000 Limited Edition Base Base Disc Disc Front Kit 1
2020-2023 Polaris RZR XP 1000 Premium Base Base Disc Disc Front Kit 1
2020 Polaris RZR XP 1000 Trails and Rock Edition Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP 4 1000 Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP 4 1000 High Lifter Edition Base Base Disc Disc Front Kit 1
2020 Polaris RZR XP 4 1000 Limited Edition Base Base Disc Disc Front Kit 1
2020-2023 Polaris RZR XP 4 1000 Premium Base Base Disc Disc Front Kit 1
2021-2022 Polaris RZR XP 1000 Trails & Rocks Base Base Disc Disc Front Kit 1
2022 Polaris RZR XP 1000 High Lifter Base Base Disc Disc Front Kit 1
2022-2023 Polaris RZR XP 1000 Sport Base Base Disc Disc Front Kit 1
2022 Polaris RZR XP 4 1000 High Lifter Base Base Disc Disc Front Kit 1
2022-2023 Polaris RZR XP 4 1000 Sport Base Base Disc Disc Front Kit 1
2023 Polaris RZR XP 1000 Ultimate Base Base Disc Disc Front Kit 1
2023 Polaris RZR XP 4 1000 Ultimate Base Base Disc Disc Front Kit 1
