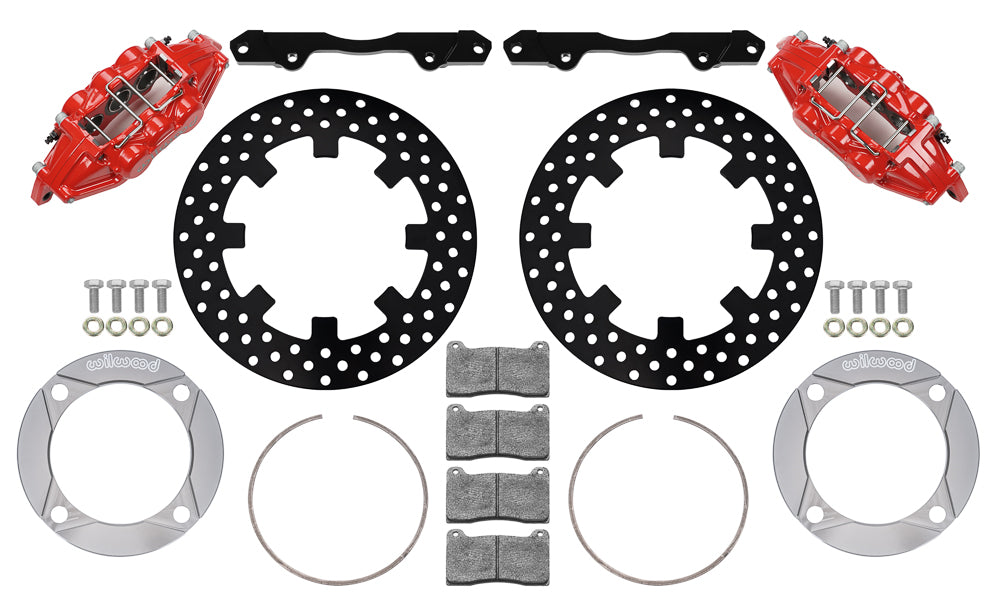

Wilwood red front brake kit for Polaris RZR 1000 and RS1 UTV6 applications, laid out with dynamic drilled 11.25-inch rotors, adapters, pads, caliper brackets and fasteners

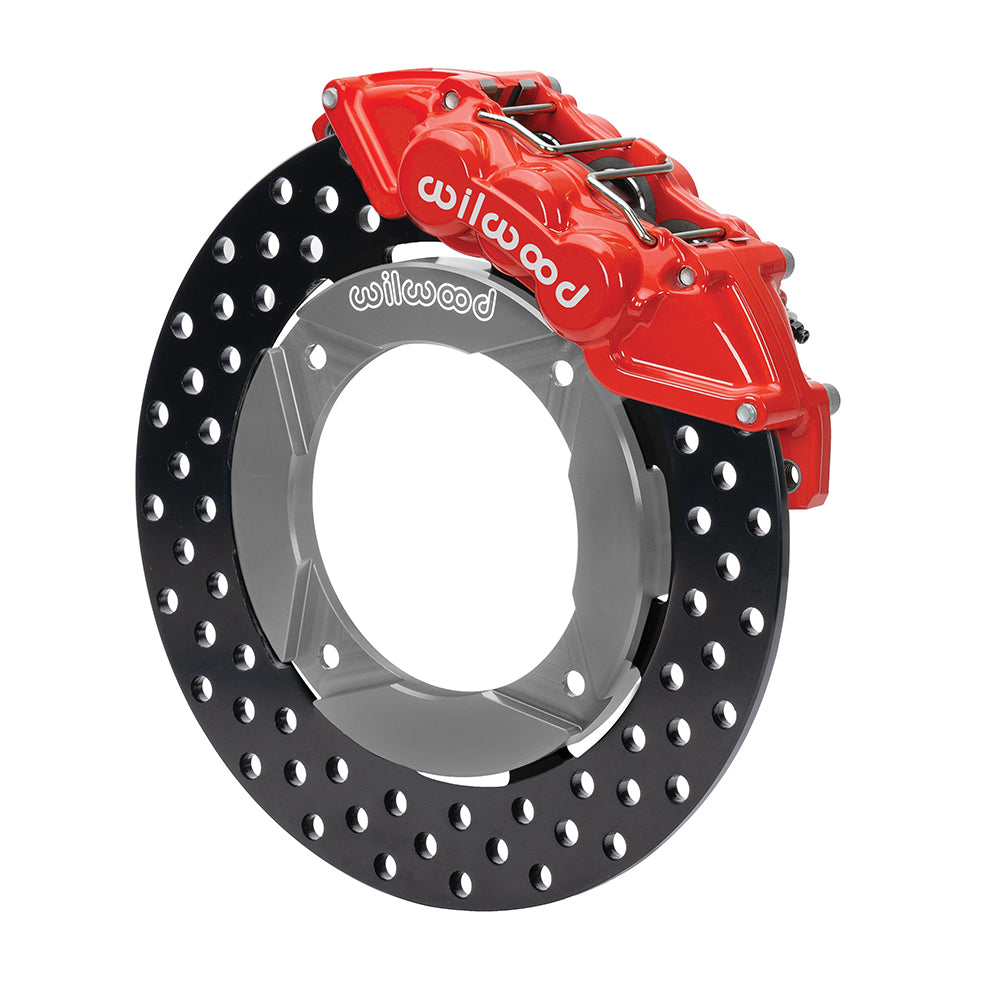

Wilwood red front caliper beside the assembled 11.25-inch drilled rotor for the Polaris RZR 1000 and RS1 UTV6 brake conversion
Wilwood red front brake kit for Polaris RZR 1000 and RS1 UTV6 applications, laid out with dynamic drilled 11.25-inch rotors, adapters, pads, caliper brackets and fasteners
Wilwood red front caliper beside the assembled 11.25-inch drilled rotor for the Polaris RZR 1000 and RS1 UTV6 brake conversion

Wilwood Red UTV6 Front Brake Kit, Drilled Dynamic Steel Rotors for Listed Polaris RZR 1000 and RS1 Models (2014–2023)

SKU: 140-16632-DR

$1,513.47 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Red six-piston front brakes use drilled 11.25-inch rotors for listed Polaris RZR 1000 and RS1 models. Check grinding locations and wheel profile. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

  • Service-brake configuration: 6-piston UTV6; Red Powder Coat
  • Brake pad selection supplied: BP-10
  • Caliper fluid connection: M10 x 1.25
  • Caliper mounting: Lug; piston material: stainless steel
  • Rotor assembly dimensions and material: 11.25 × 0.25 inches; Steel; solid; Drilled
  • Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
  • Included installation items: mounting hardware
  • Hydraulic flexlines: Not included
  • Quantity: Sold as a kit.
  • Separate components required: spindles, wheel hubs, master cylinder, brake booster
  • Manufacturer part number: 140-16632-DR
  • Kit function: Front Brake Kits - Utility Vehicle; front position

Fitment & Compatibility

The table below includes the listed Polaris RZR XP 1000, XP 4 1000, S 1000, S4 1000 and RS1 configurations with year-specific trim coverage. The front conversion requires the upright grinding shown in DS-1499 for pad clearance. Reuse the factory hubs with the dynamic steel rotor adapters and use the supplied banjo bolts and crush washers. Do not reuse the original banjo bolts. Check the actual wheel section, at least 0.080-inch caliper clearance and the hose path through steering and full suspension articulation.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
2014-2019 Polaris RZR XP 1000 EPS Base Base Disc Disc Front Kit 1
2014-2019 Polaris RZR XP 4 1000 EPS Base Base Disc Disc Front Kit 1
2015 Polaris RZR XP 1000 EPS Desert Edition Base Base Disc Disc Front Kit 1
2015 Polaris RZR XP 1000 EPS Fox Edition Base Base Disc Disc Front Kit 1
2015-2019 Polaris RZR XP 1000 EPS High Lifter Edition Base Base Disc Disc Front Kit 1
2017 Polaris RZR XP 1000 EPS Gold Matte Metallic LE Base Base Disc Disc Front Kit 1
2017 Polaris RZR XP 1000 EPS Velocity Blue LE Base Base Disc Disc Front Kit 1
2017-2019 Polaris RZR XP 4 1000 EPS High Lifter Edition Base Base Disc Disc Front Kit 1
2018-2021 Polaris RZR RS1 Base Base Disc Disc Front Kit 1
2018-2019 Polaris RZR XP 1000 EPS Ride Command Edition Base Base Disc Disc Front Kit 1
2018-2019 Polaris RZR XP 1000 EPS Trails and Rock Edition Base Base Disc Disc Front Kit 1
2018-2019 Polaris RZR XP 4 1000 EPS Ride Command Edition Base Base Disc Disc Front Kit 1
2019-2020 Polaris RZR S4 1000 EPS Base Base Disc Disc Front Kit 1
2019 Polaris RZR XP 1000 EPS DYNAMIX Edition Base Base Disc Disc Front Kit 1
2019 Polaris RZR XP 4 1000 EPS DYNAMIX Edition Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR S 1000 EPS Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP 1000 Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP 1000 High Lifter Edition Base Base Disc Disc Front Kit 1
2020 Polaris RZR XP 1000 Limited Edition Base Base Disc Disc Front Kit 1
2020-2023 Polaris RZR XP 1000 Premium Base Base Disc Disc Front Kit 1
2020 Polaris RZR XP 1000 Trails and Rock Edition Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP 4 1000 Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP 4 1000 High Lifter Edition Base Base Disc Disc Front Kit 1
2020 Polaris RZR XP 4 1000 Limited Edition Base Base Disc Disc Front Kit 1
2020-2023 Polaris RZR XP 4 1000 Premium Base Base Disc Disc Front Kit 1
2021-2022 Polaris RZR XP 1000 Trails & Rocks Base Base Disc Disc Front Kit 1
2022 Polaris RZR XP 1000 High Lifter Base Base Disc Disc Front Kit 1
2022-2023 Polaris RZR XP 1000 Sport Base Base Disc Disc Front Kit 1
2022 Polaris RZR XP 4 1000 High Lifter Base Base Disc Disc Front Kit 1
2022-2023 Polaris RZR XP 4 1000 Sport Base Base Disc Disc Front Kit 1
2023 Polaris RZR XP 1000 Ultimate Base Base Disc Disc Front Kit 1
2023 Polaris RZR XP 4 1000 Ultimate Base Base Disc Disc Front Kit 1
