Product details

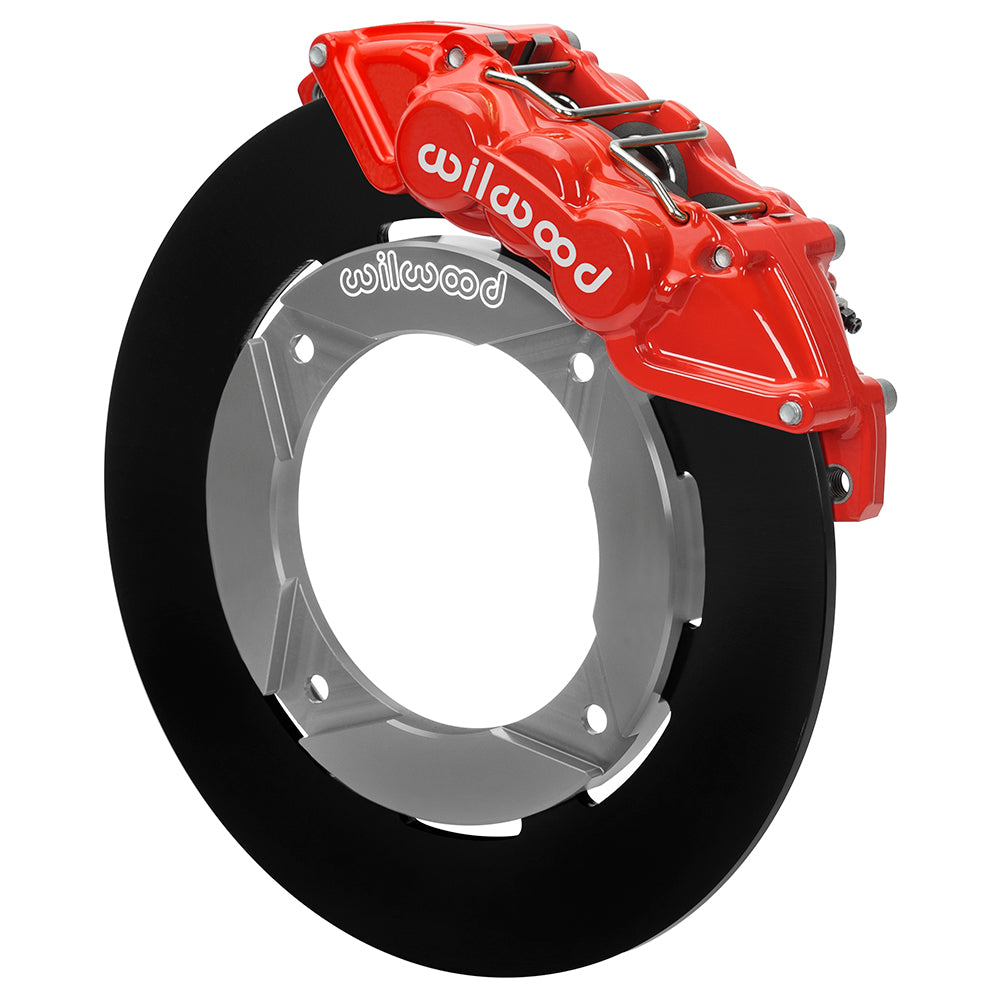

Plain dynamic steel rotors and red six-piston front calipers serve listed Polaris RZR Turbo and Pro XP models. Verify model year and wheel envelope. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.
Technical Details
- Application / axle position: Front Brake Kits - Utility Vehicle; front position
- Rotor specification: 11.25 × 0.25 inches; Steel; solid; Plain Face
- Supplied service-pad compound: BP-10
- Wheel-size starting point: 15 in; verify the complete clearance drawing
- Flexline inclusion: Not included
- Caliper family, piston count and finish: 6-piston UTV6; Red Powder Coat
- Hydraulic inlet: M10 x 1.25
- Caliper mounting: Lug; piston material: stainless steel

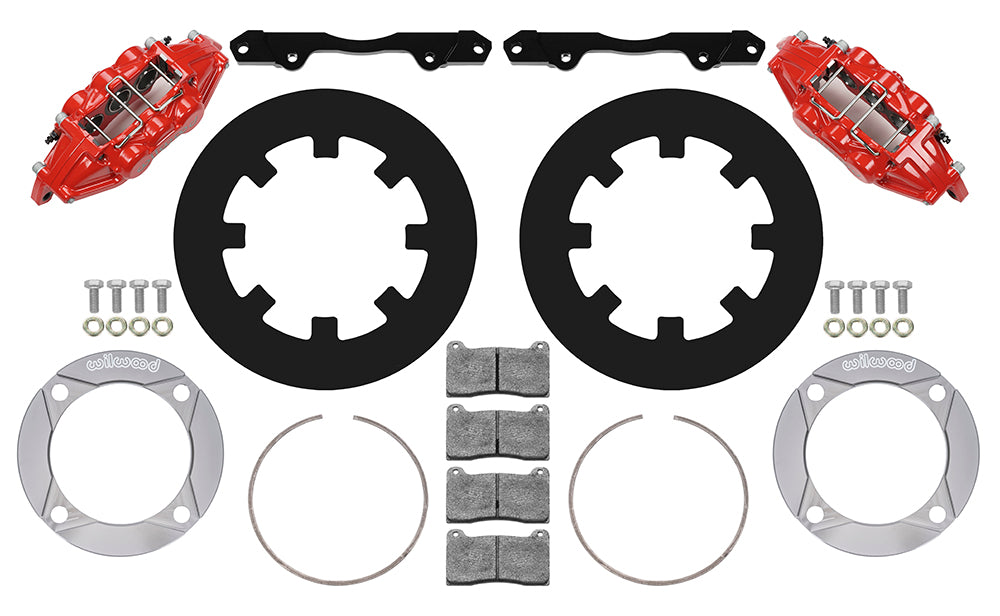

- Items outside the kit: spindles, wheel hubs, master cylinder, brake booster
- Supplied mounting components: mounting hardware
- Manufacturer part number: 140-16630-R
- Quantity: Sold as a kit.
Fitment & Compatibility
The application table below lists the supported Polaris RZR Turbo, XP 4 Turbo, Turbo S and Pro XP variants with their own years and trims. DS-1497 illustrates the earlier XP Turbo/XP 4 Turbo installation; compare the exact later vehicle configuration before assembly. The front UTV6 kit uses dynamic nonvented steel rotors and retains the existing hub. Use the supplied M10 × 1.25 banjo bolts rather than reusing the stock bolts. Maintain clearance through steering and suspension travel and verify at least 0.080 inch between caliper and wheel.
Wilwood product specifications · Installation instructions
PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2016-2019 | Polaris | RZR XP 4 Turbo EPS | Base | Base | Disc | Disc | Front Kit | 1 |
| 2016-2019 | Polaris | RZR XP Turbo EPS | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018-2019 | Polaris | RZR XP 4 Turbo EPS DYNAMIX Edition | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018 | Polaris | RZR XP 4 Turbo EPS Fox Edition | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018-2019 | Polaris | RZR XP Turbo EPS DYNAMIX Edition | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018 | Polaris | RZR XP Turbo EPS Fox Edition | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018-2020 | Polaris | RZR XP Turbo S | Base | Base | Disc | Disc | Front Kit | 1 |
| 2019 | Polaris | RZR XP 4 Turbo EPS LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2019 | Polaris | RZR XP Turbo EPS LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2021 | Polaris | RZR PRO XP | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2021 | Polaris | RZR PRO XP 4 | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020 | Polaris | RZR PRO XP 4 Orange Madness LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2023 | Polaris | RZR PRO XP 4 Premium | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2023 | Polaris | RZR PRO XP 4 Ultimate | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020 | Polaris | RZR PRO XP Orange Madness LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2023 | Polaris | RZR PRO XP Premium | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2023 | Polaris | RZR PRO XP Ultimate | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2021 | Polaris | RZR XP 4 Turbo | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2021 | Polaris | RZR XP Turbo | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020 | Polaris | RZR XP Turbo S Velocity | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021-2023 | Polaris | RZR PRO XP Sport | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021 | Polaris | RZR PRO XP Sport Rockford Fosgate LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021 | Polaris | RZR Turbo S | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021 | Polaris | RZR Turbo S Lifted Lime LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021 | Polaris | RZR Turbo S Velocity | Base | Base | Disc | Disc | Front Kit | 1 |
| 2022-2023 | Polaris | RZR PRO XP 4 Sport | Base | Base | Disc | Disc | Front Kit | 1 |
| 2022 | Polaris | RZR Pro XP 4 Ultimate Rockford Fosgate | Base | Base | Disc | Disc | Front Kit | 1 |
| 2022 | Polaris | RZR Pro XP Ultimate Rockford Fosgate LE | Base | Base | Disc | Disc | Front Kit | 1 |
