Product details

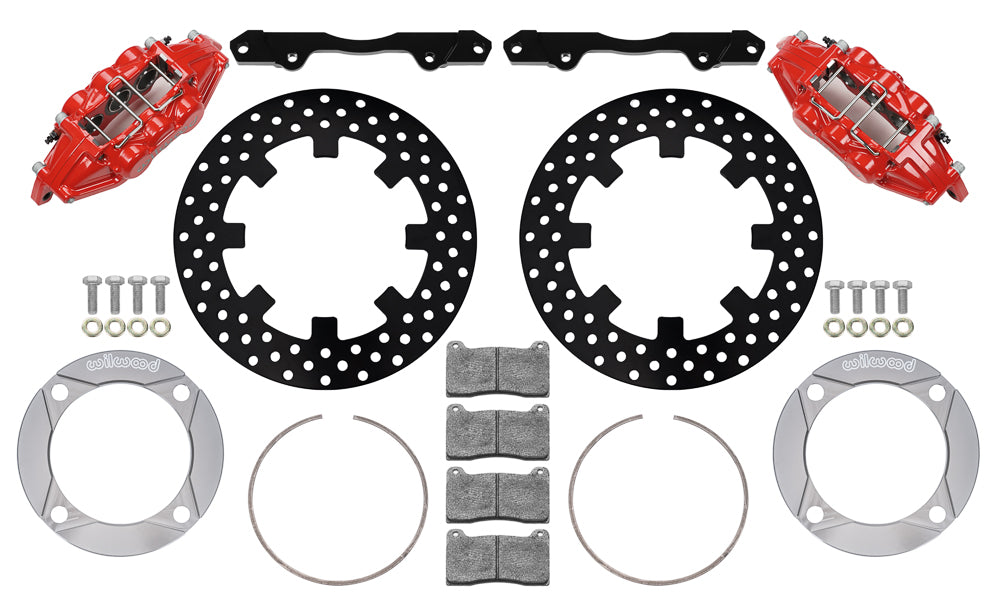

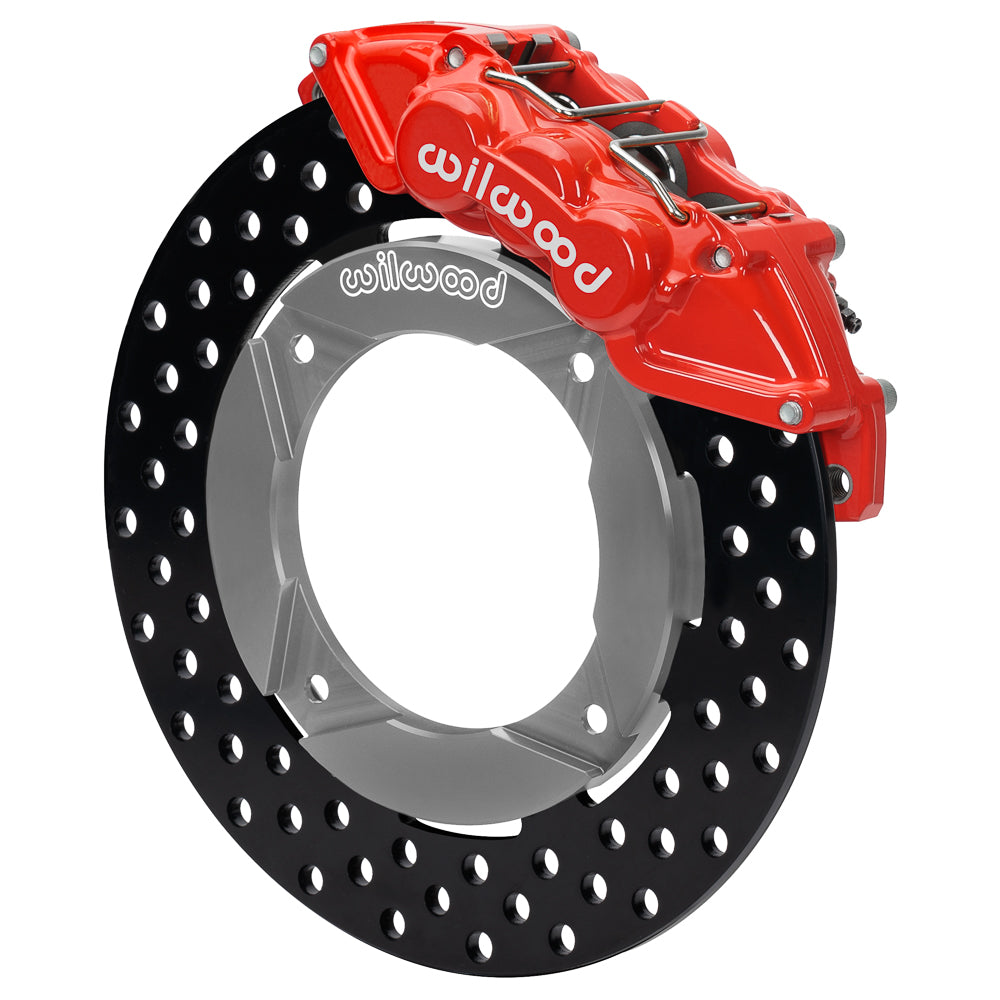

Red UTV6 front calipers and drilled 11.25-inch rotors equip listed Polaris RZR Turbo and Pro XP models. Confirm trim and banjo-hose clearance. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.
Technical Details
- Service-brake configuration: 6-piston UTV6; Red Powder Coat
- Brake pad selection supplied: BP-10
- Caliper fluid connection: M10 x 1.25
- Caliper mounting: Lug; piston material: stainless steel
- Rotor assembly dimensions and material: 11.25 × 0.25 inches; Steel; solid; Drilled
- Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
- Included installation items: mounting hardware
- Hydraulic flexlines: Not included
- Quantity: Sold as a kit.
- Separate components required: spindles, wheel hubs, master cylinder, brake booster
- Manufacturer part number: 140-16630-DR
- Kit function: Front Brake Kits - Utility Vehicle; front position
Fitment & Compatibility
The application table below lists the supported Polaris RZR Turbo, XP 4 Turbo, Turbo S and Pro XP variants with their own years and trims. DS-1497 illustrates the earlier XP Turbo/XP 4 Turbo installation; compare the exact later vehicle configuration before assembly. The front UTV6 kit uses dynamic nonvented steel rotors and retains the existing hub. Use the supplied M10 × 1.25 banjo bolts rather than reusing the stock bolts. Maintain clearance through steering and suspension travel and verify at least 0.080 inch between caliper and wheel.
Wilwood product specifications · Installation instructions
PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2016-2019 | Polaris | RZR XP 4 Turbo EPS | Base | Base | Disc | Disc | Front Kit | 1 |
| 2016-2019 | Polaris | RZR XP Turbo EPS | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018-2019 | Polaris | RZR XP 4 Turbo EPS DYNAMIX Edition | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018 | Polaris | RZR XP 4 Turbo EPS Fox Edition | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018-2019 | Polaris | RZR XP Turbo EPS DYNAMIX Edition | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018 | Polaris | RZR XP Turbo EPS Fox Edition | Base | Base | Disc | Disc | Front Kit | 1 |
| 2018-2020 | Polaris | RZR XP Turbo S | Base | Base | Disc | Disc | Front Kit | 1 |
| 2019 | Polaris | RZR XP 4 Turbo EPS LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2019 | Polaris | RZR XP Turbo EPS LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2021 | Polaris | RZR PRO XP | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2021 | Polaris | RZR PRO XP 4 | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020 | Polaris | RZR PRO XP 4 Orange Madness LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2023 | Polaris | RZR PRO XP 4 Premium | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2023 | Polaris | RZR PRO XP 4 Ultimate | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020 | Polaris | RZR PRO XP Orange Madness LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2023 | Polaris | RZR PRO XP Premium | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2023 | Polaris | RZR PRO XP Ultimate | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2021 | Polaris | RZR XP 4 Turbo | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020-2021 | Polaris | RZR XP Turbo | Base | Base | Disc | Disc | Front Kit | 1 |
| 2020 | Polaris | RZR XP Turbo S Velocity | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021-2023 | Polaris | RZR PRO XP Sport | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021 | Polaris | RZR PRO XP Sport Rockford Fosgate LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021 | Polaris | RZR Turbo S | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021 | Polaris | RZR Turbo S Lifted Lime LE | Base | Base | Disc | Disc | Front Kit | 1 |
| 2021 | Polaris | RZR Turbo S Velocity | Base | Base | Disc | Disc | Front Kit | 1 |
| 2022-2023 | Polaris | RZR PRO XP 4 Sport | Base | Base | Disc | Disc | Front Kit | 1 |
| 2022 | Polaris | RZR Pro XP 4 Ultimate Rockford Fosgate | Base | Base | Disc | Disc | Front Kit | 1 |
| 2022 | Polaris | RZR Pro XP Ultimate Rockford Fosgate LE | Base | Base | Disc | Disc | Front Kit | 1 |
