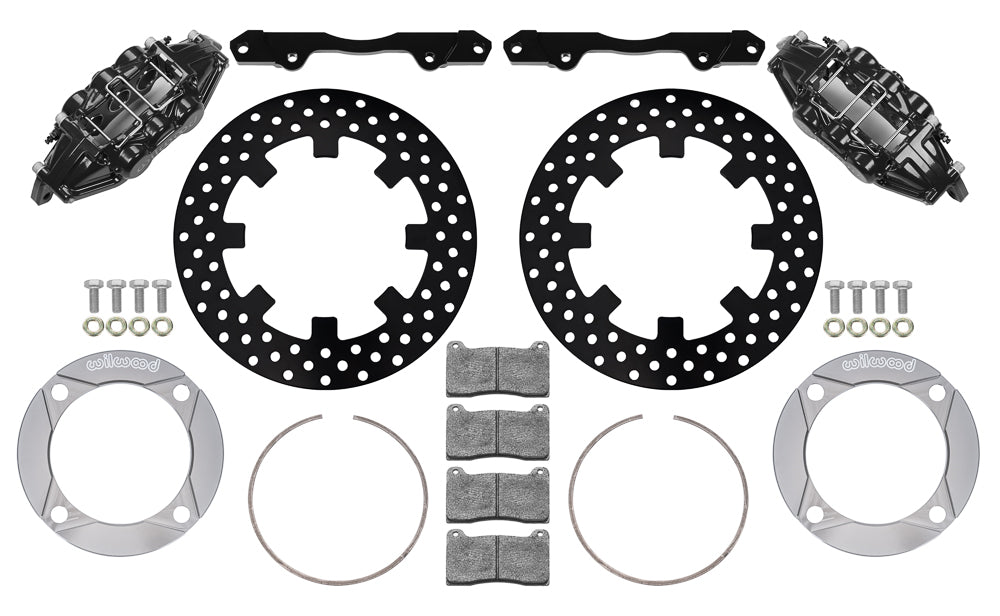

Wilwood black front brake kit for Polaris RZR Turbo and Pro XP UTV6 applications, laid out with dynamic drilled 11.25-inch rotors, adapters, pads, caliper brackets and fasteners

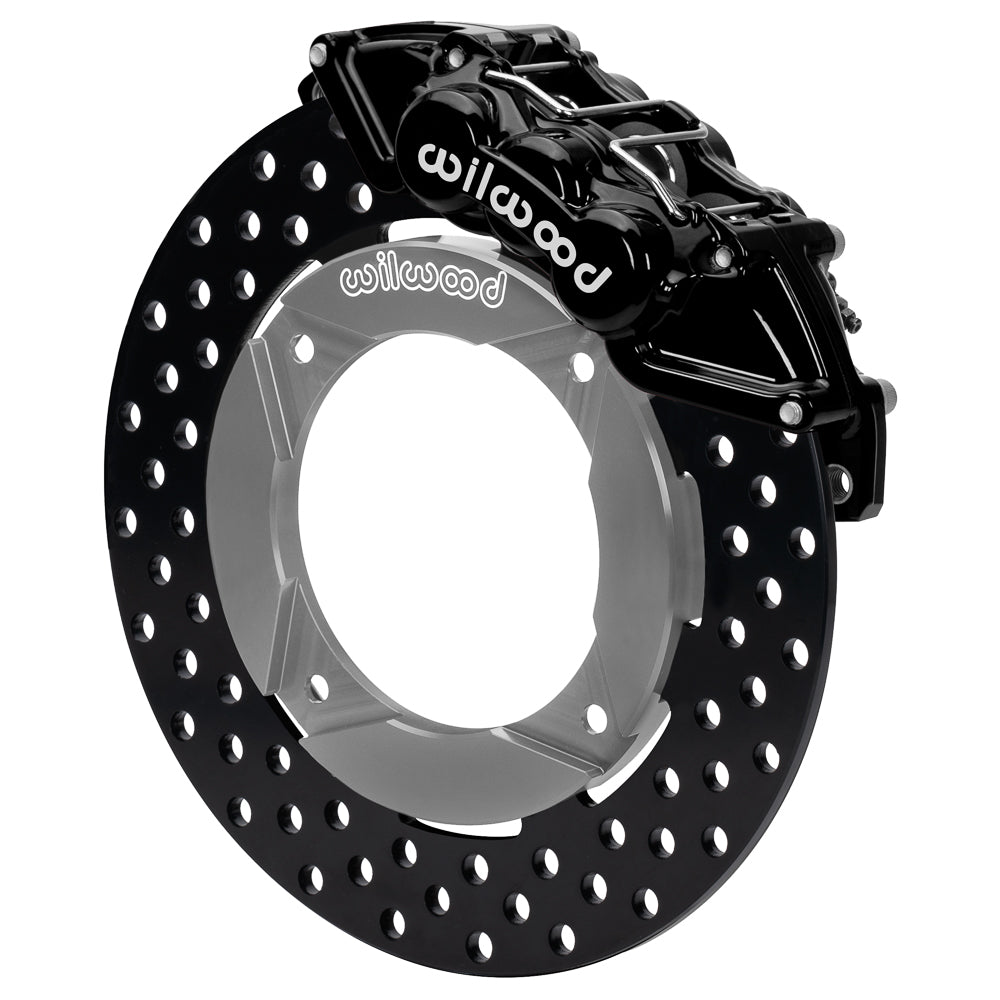

Wilwood black front caliper beside the assembled 11.25-inch drilled rotor for the Polaris RZR Turbo and Pro XP UTV6 brake conversion
Wilwood black front brake kit for Polaris RZR Turbo and Pro XP UTV6 applications, laid out with dynamic drilled 11.25-inch rotors, adapters, pads, caliper brackets and fasteners
Wilwood black front caliper beside the assembled 11.25-inch drilled rotor for the Polaris RZR Turbo and Pro XP UTV6 brake conversion

Wilwood Polaris RZR Turbo/Pro XP Front Brake Conversion (2016–2023), Black UTV6 Calipers and Drilled Rotors

SKU: 140-16630-D

$1,513.47 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Fit drilled steel front rotors and black UTV6 calipers to listed Polaris RZR Turbo and Pro XP models. Use the supplied banjo bolts; check wheel fit. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

  • Rotor dimensions, construction and face: 11.25 × 0.25 inches; Steel; solid; Drilled
  • Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
  • Hydraulic caliper specification: 6-piston UTV6; Black Powder Coat
  • Supplied service-pad compound: BP-10
  • Mounting and piston details: Lug; piston material: stainless steel
  • Hydraulic inlet: M10 x 1.25
  • Hose provision: Not included
  • Hardware supplied: mounting hardware
  • Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
  • Manufacturer part number: 140-16630-D
  • Kit function: Front Brake Kits - Utility Vehicle; front position
  • Quantity: Sold as a kit.

Fitment & Compatibility

The application table below lists the supported Polaris RZR Turbo, XP 4 Turbo, Turbo S and Pro XP variants with their own years and trims. DS-1497 illustrates the earlier XP Turbo/XP 4 Turbo installation; compare the exact later vehicle configuration before assembly. The front UTV6 kit uses dynamic nonvented steel rotors and retains the existing hub. Use the supplied M10 × 1.25 banjo bolts rather than reusing the stock bolts. Maintain clearance through steering and suspension travel and verify at least 0.080 inch between caliper and wheel.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
2016-2019 Polaris RZR XP 4 Turbo EPS Base Base Disc Disc Front Kit 1
2016-2019 Polaris RZR XP Turbo EPS Base Base Disc Disc Front Kit 1
2018-2019 Polaris RZR XP 4 Turbo EPS DYNAMIX Edition Base Base Disc Disc Front Kit 1
2018 Polaris RZR XP 4 Turbo EPS Fox Edition Base Base Disc Disc Front Kit 1
2018-2019 Polaris RZR XP Turbo EPS DYNAMIX Edition Base Base Disc Disc Front Kit 1
2018 Polaris RZR XP Turbo EPS Fox Edition Base Base Disc Disc Front Kit 1
2018-2020 Polaris RZR XP Turbo S Base Base Disc Disc Front Kit 1
2019 Polaris RZR XP 4 Turbo EPS LE Base Base Disc Disc Front Kit 1
2019 Polaris RZR XP Turbo EPS LE Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR PRO XP Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR PRO XP 4 Base Base Disc Disc Front Kit 1
2020 Polaris RZR PRO XP 4 Orange Madness LE Base Base Disc Disc Front Kit 1
2020-2023 Polaris RZR PRO XP 4 Premium Base Base Disc Disc Front Kit 1
2020-2023 Polaris RZR PRO XP 4 Ultimate Base Base Disc Disc Front Kit 1
2020 Polaris RZR PRO XP Orange Madness LE Base Base Disc Disc Front Kit 1
2020-2023 Polaris RZR PRO XP Premium Base Base Disc Disc Front Kit 1
2020-2023 Polaris RZR PRO XP Ultimate Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP 4 Turbo Base Base Disc Disc Front Kit 1
2020-2021 Polaris RZR XP Turbo Base Base Disc Disc Front Kit 1
2020 Polaris RZR XP Turbo S Velocity Base Base Disc Disc Front Kit 1
2021-2023 Polaris RZR PRO XP Sport Base Base Disc Disc Front Kit 1
2021 Polaris RZR PRO XP Sport Rockford Fosgate LE Base Base Disc Disc Front Kit 1
2021 Polaris RZR Turbo S Base Base Disc Disc Front Kit 1
2021 Polaris RZR Turbo S Lifted Lime LE Base Base Disc Disc Front Kit 1
2021 Polaris RZR Turbo S Velocity Base Base Disc Disc Front Kit 1
2022-2023 Polaris RZR PRO XP 4 Sport Base Base Disc Disc Front Kit 1
2022 Polaris RZR Pro XP 4 Ultimate Rockford Fosgate Base Base Disc Disc Front Kit 1
2022 Polaris RZR Pro XP Ultimate Rockford Fosgate LE Base Base Disc Disc Front Kit 1
