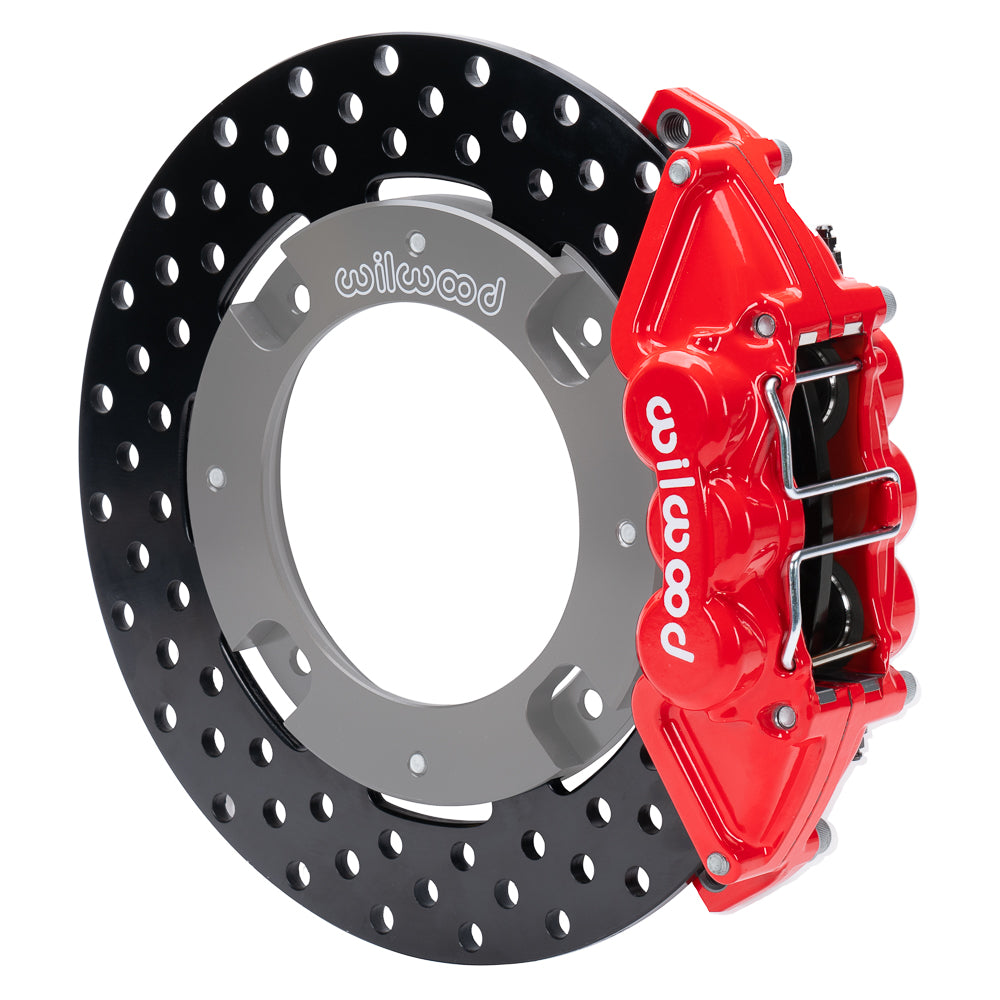

Wilwood Red Four-Piston Rear UTV4 Conversion for Can-Am Maverick X3 (2017–2024), Dynamic-Mount Drilled 11.25-Inch Rotors

Red UTV4 rear calipers and drilled steel rotors equip listed Can-Am Maverick X3 trims. Verify model year, rotor adapter and 15-inch wheel clearance. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Service-brake configuration: 4-piston UTV4; Red Powder Coat
• Brake pad selection supplied: BP-10
• Caliper fluid connection: M10 x 1.25
• Caliper mounting: Lug; piston material: stainless steel
• Rotor assembly dimensions and material: 11.25 × 0.25 inches; Steel; solid; Drilled
• Nominal wheel diameter reference: 15 in; verify the complete clearance drawing

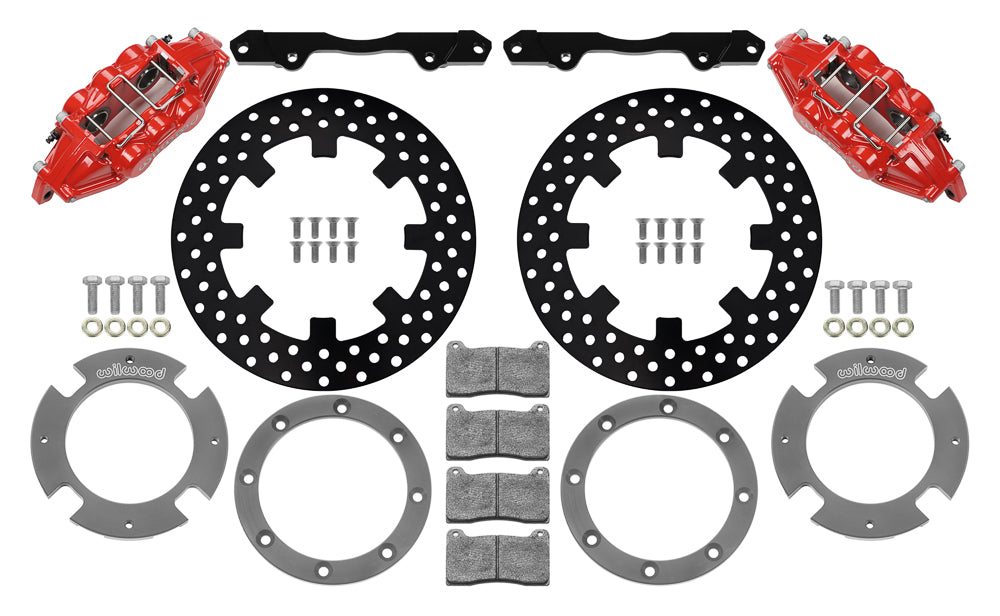

• Included installation items: mounting hardware
• Hydraulic flexlines: Not included
• Quantity: Sold as a kit.
• Separate components required: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16629-DR
• Kit function: Rear Brake Kits - Utility Vehicle; rear position

Fitment & Compatibility

This rear UTV4 conversion uses the existing hub and the dynamic rotor adapter for the listed Can-Am Maverick X3/X3 Max applications. Match the complete year and Turbo/DS/RS/X mr/X rc trim information below, including the separate width and Smart-Shox entries where listed. The 11.25-inch steel rotors are nonvented; do not confuse a drilled face with internal rotor ventilation. Use DS-1489 for alignment and the supplied M10 × 1.25 banjo hardware. Check wheel clearance and the hose path throughout suspension movement.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
