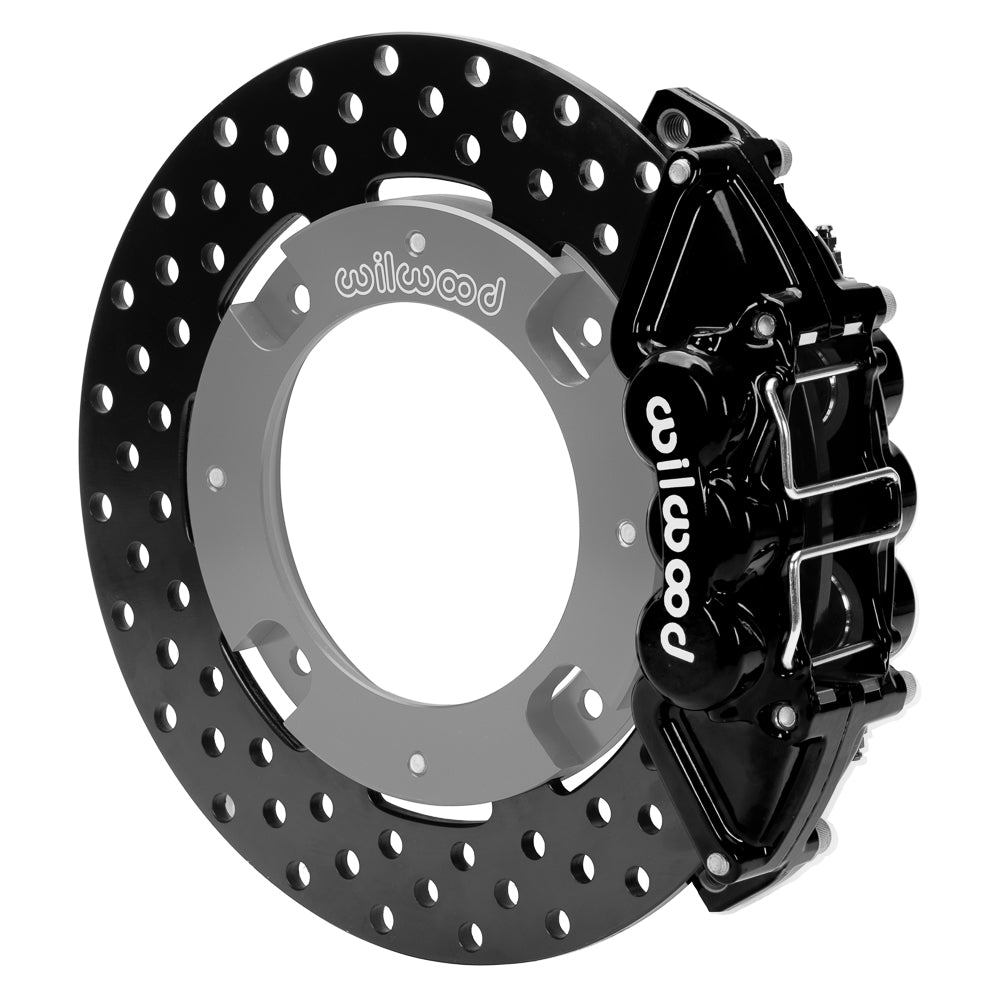

Wilwood Drilled-Rotor Rear Brake Conversion for Can-Am Maverick X3 (2017–2024), Black Four-Piston UTV4 Calipers

Drilled 11.25-inch rear rotors combine with black four-piston calipers for Can-Am Maverick X3 models. Check wheel space and the listed trim/year. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Rotor dimensions, construction and face: 11.25 × 0.25 inches; Steel; solid; Drilled
• Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
• Hydraulic caliper specification: 4-piston UTV4; Black Powder Coat
• Supplied service-pad compound: BP-10
• Mounting and piston details: Lug; piston material: stainless steel
• Hydraulic inlet: M10 x 1.25
• Hose provision: Not included

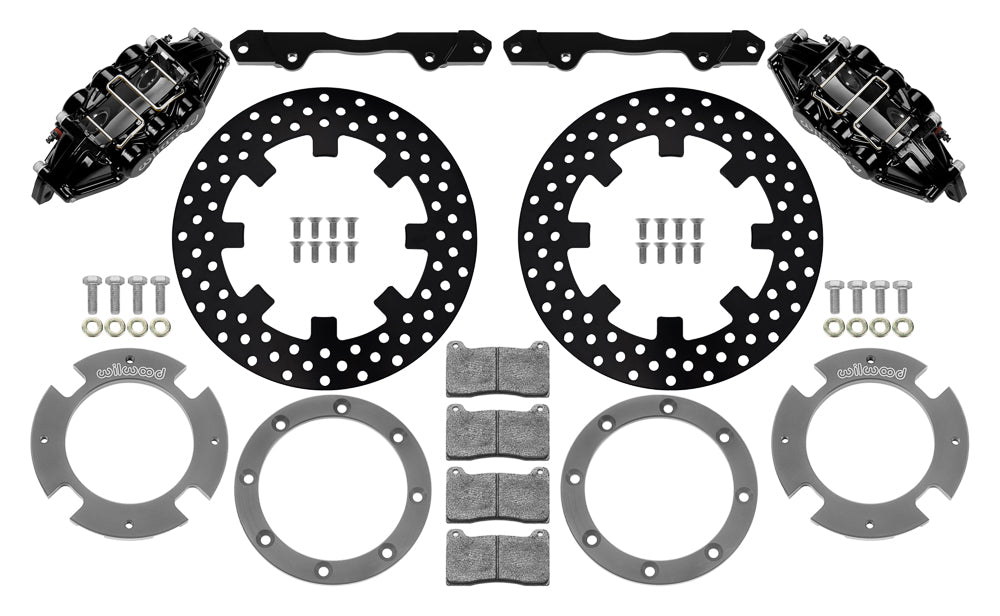

• Hardware supplied: mounting hardware
• Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16629-D
• Kit function: Rear Brake Kits - Utility Vehicle; rear position
• Quantity: Sold as a kit.

Fitment & Compatibility

This rear UTV4 conversion uses the existing hub and the dynamic rotor adapter for the listed Can-Am Maverick X3/X3 Max applications. Match the complete year and Turbo/DS/RS/X mr/X rc trim information below, including the separate width and Smart-Shox entries where listed. The 11.25-inch steel rotors are nonvented; do not confuse a drilled face with internal rotor ventilation. Use DS-1489 for alignment and the supplied M10 × 1.25 banjo hardware. Check wheel clearance and the hose path throughout suspension movement.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.
