Product details

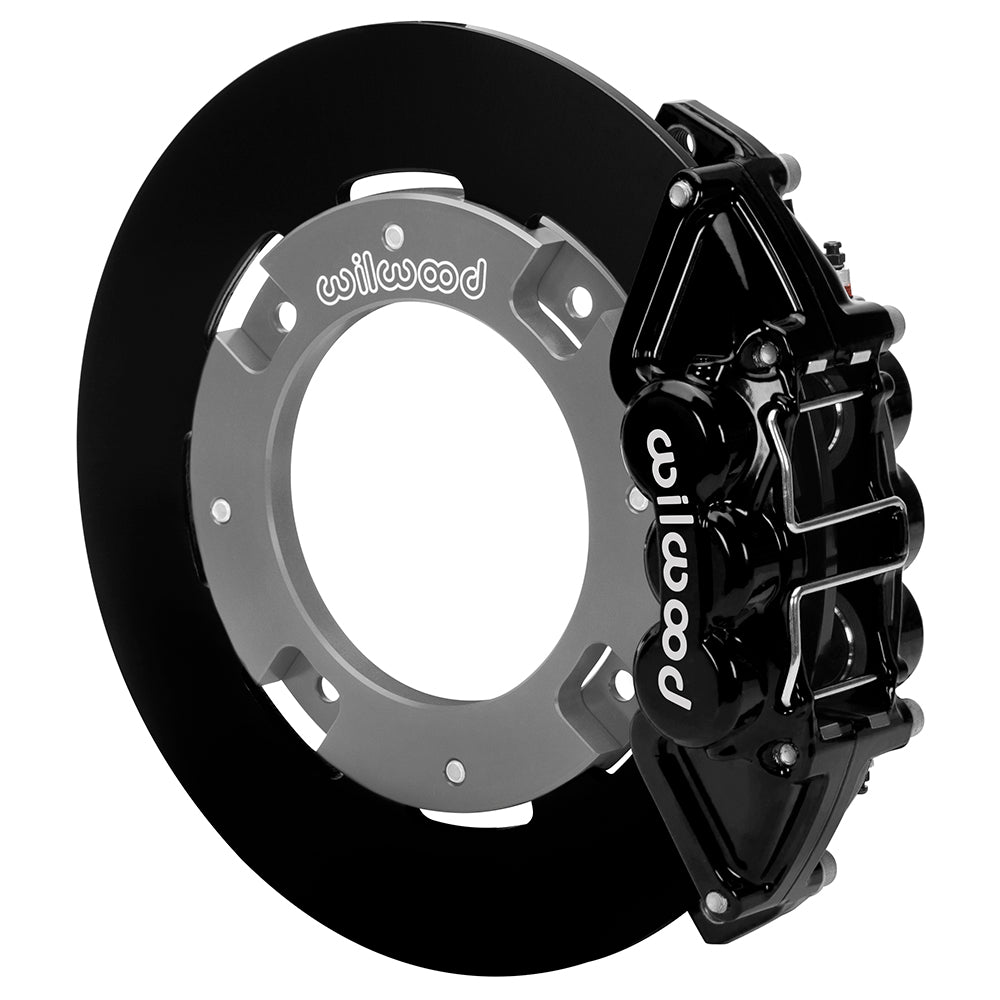

Listed Can-Am Maverick X3 rear applications use black UTV4 calipers and plain steel rotors. Confirm trim and the dynamic-mount rotor interface. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.
Technical Details

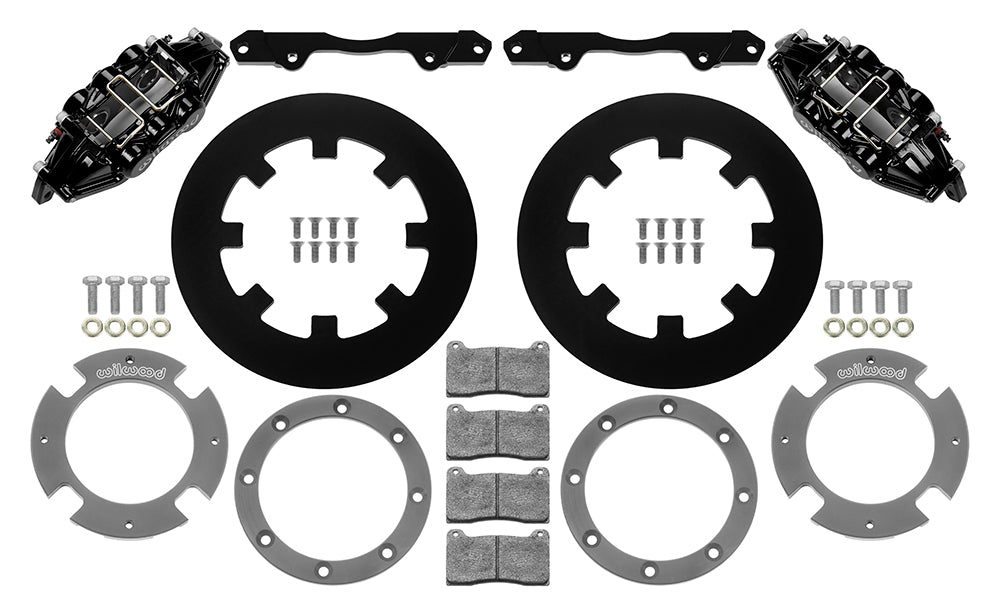

- Manufacturer part number: 140-16629
- Kit function: Rear Brake Kits - Utility Vehicle; rear position
- Service calipers: 4-piston UTV4; Black Powder Coat
- Caliper mounting: Lug; piston material: stainless steel
- Rotor package: 11.25 × 0.25 inches; Steel; solid; Plain Face
- Supplied service-pad compound: BP-10
- Hydraulic inlet: M10 x 1.25
- Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
- Hydraulic flexlines: Not included
- Included installation items: mounting hardware
- Not supplied: spindles, wheel hubs, master cylinder, brake booster
- Quantity: Sold as a kit.
Fitment & Compatibility
This rear UTV4 conversion uses the existing hub and the dynamic rotor adapter for the listed Can-Am Maverick X3/X3 Max applications. Match the complete year and Turbo/DS/RS/X mr/X rc trim information below, including the separate width and Smart-Shox entries where listed. The 11.25-inch steel rotors are nonvented; do not confuse a drilled face with internal rotor ventilation. Use DS-1489 for alignment and the supplied M10 × 1.25 banjo hardware. Check wheel clearance and the hose path throughout suspension movement.
Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.
Wilwood product specifications · Installation instructions
PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
| Years | Make | Model | Submodel | Model option | Front brakes | Rear brakes | Kit application | Notes |
|---|---|---|---|---|---|---|---|---|
| 2017-2019 | Can-Am | Maverick X3 Max Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2017-2019 | Can-Am | Maverick X3 Max X ds Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2017-2019 | Can-Am | Maverick X3 Max X rs Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2017-2019 | Can-Am | Maverick X3 Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2017-2019 | Can-Am | Maverick X3 X ds Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2017-2019 | Can-Am | Maverick X3 X rs Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2018 | Can-Am | Maverick X3 900 HO | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2018-2020 | Can-Am | Maverick X3 Max Turbo | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2018-2020 | Can-Am | Maverick X3 Turbo | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2018-2021 | Can-Am | Maverick X3 X mr Turbo | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2018-2019 | Can-Am | Maverick X3 X mr Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2018-2021 | Can-Am | Maverick X3 X rc Turbo | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2018-2019 | Can-Am | Maverick X3 X rc Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2021 | Can-Am | Maverick X3 DS Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2021 | Can-Am | Maverick X3 Max DS Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2021 | Can-Am | Maverick X3 Max RS Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2024 | Can-Am | Maverick X3 Max X ds Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2024 | Can-Am | Maverick X3 Max X mr Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2024 | Can-Am | Maverick X3 Max X rs Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2021 | Can-Am | Maverick X3 RS Turbo R | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2024 | Can-Am | Maverick X3 X ds Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2021 | Can-Am | Maverick X3 X mr Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2021 | Can-Am | Maverick X3 X rc Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2020-2024 | Can-Am | Maverick X3 X rs Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2021-2024 | Can-Am | Maverick X3 DS Turbo | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2021-2024 | Can-Am | Maverick X3 Max DS Turbo | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2021-2024 | Can-Am | Maverick X3 Max X rs Turbo RR Smart-Sho | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2021-2024 | Can-Am | Maverick X3 X rs Turbo RR Smart-Shox | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2022-2024 | Can-Am | Maverick X3 DS Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2022-2024 | Can-Am | Maverick X3 Max DS Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2022-2024 | Can-Am | Maverick X3 Max RS Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2022-2024 | Can-Am | Maverick X3 RS Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2022-2024 | Can-Am | Maverick X3 X mr Turbo RR 64 | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2022-2024 | Can-Am | Maverick X3 X mr Turbo RR 72 | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2022-2024 | Can-Am | Maverick X3 X rc Turbo RR 64 | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2022-2024 | Can-Am | Maverick X3 X rc Turbo RR 72 | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2024 | Can-Am | Maverick X3 Max RS Turbo | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2024 | Can-Am | Maverick X3 Max X rc Turbo RR | Base | Base | Disc | Disc | Rear Kit | 1 |
| 2024 | Can-Am | Maverick X3 RS Turbo | Base | Base | Disc | Disc | Rear Kit | 1 |
