Wilwood Can-Am Maverick X3 Front Brake Kit (2017–2024), Red UTV6 Calipers and Drilled Dynamic Steel Rotors

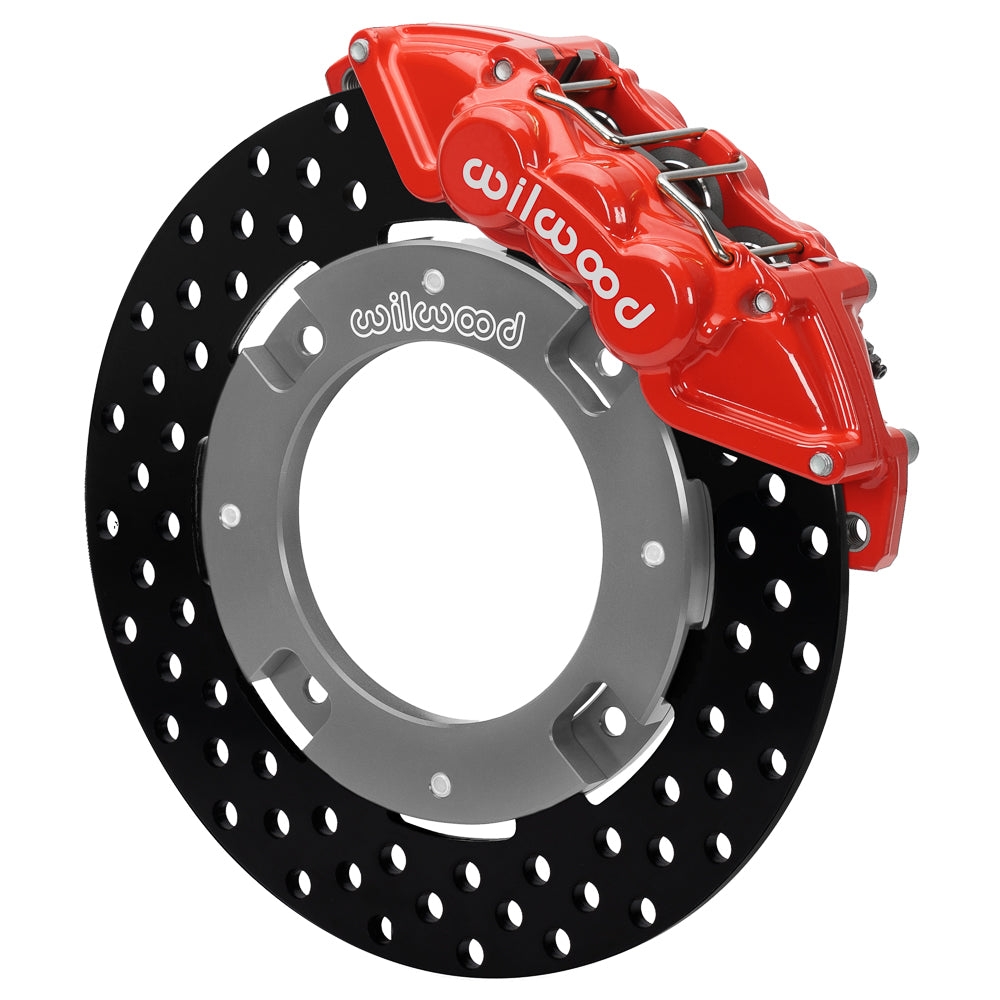

Red six-piston front calipers clamp drilled 11.25-inch rotors for listed Can-Am Maverick X3 models. Match trim and check upright clearance. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Service-brake configuration: 6-piston UTV6; Red Powder Coat
• Brake pad selection supplied: BP-10
• Caliper fluid connection: M10 x 1.25
• Caliper mounting: Lug; piston material: stainless steel
• Rotor assembly dimensions and material: 11.25 × 0.25 inches; Steel; solid; Drilled
• Nominal wheel diameter reference: 15 in; verify the complete clearance drawing

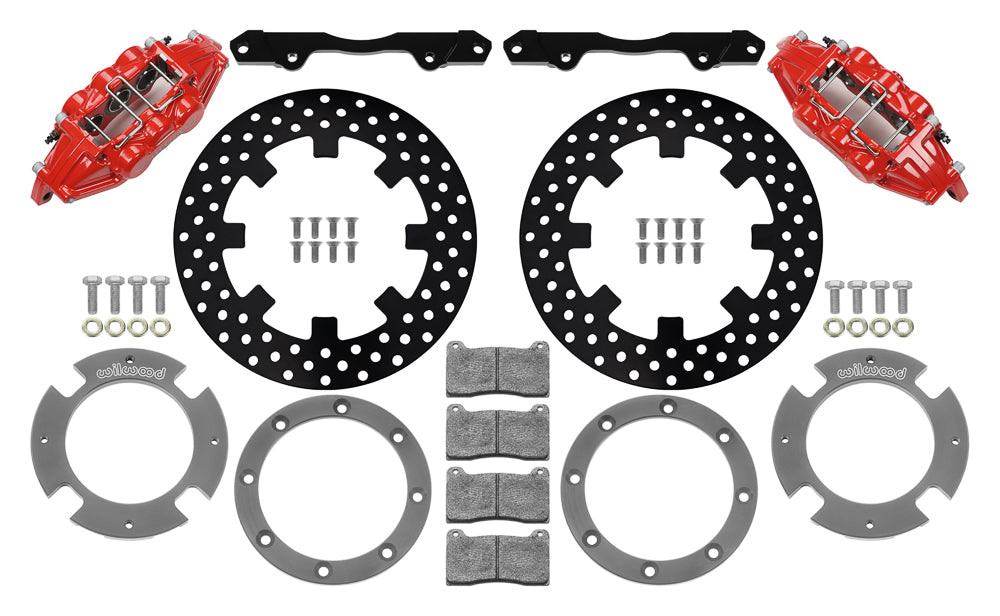

• Included installation items: mounting hardware
• Hydraulic flexlines: Not included
• Quantity: Sold as a kit.
• Separate components required: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16628-DR
• Kit function: Front Brake Kits - Utility Vehicle; front position

Fitment & Compatibility

Read the exact Can-Am Maverick X3 and X3 Max year/trim rows below; Turbo, Turbo R, Turbo RR, DS, RS, X mr and X rc names are not interchangeable coverage claims. The front UTV6 kit retains the hubs and uses dynamically mounted 11.25-inch steel rotors. DS-1488 notes that minor grinding of the casting line on the lower caliper mounting tab may be needed for caliper clearance. Remove material only if necessary as shown. Follow the diagram rather than assuming a no-modification installation. Verify the supplied banjo connection, hose routing and at least 0.080-inch clearance between caliper and wheel over the full steering range.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
