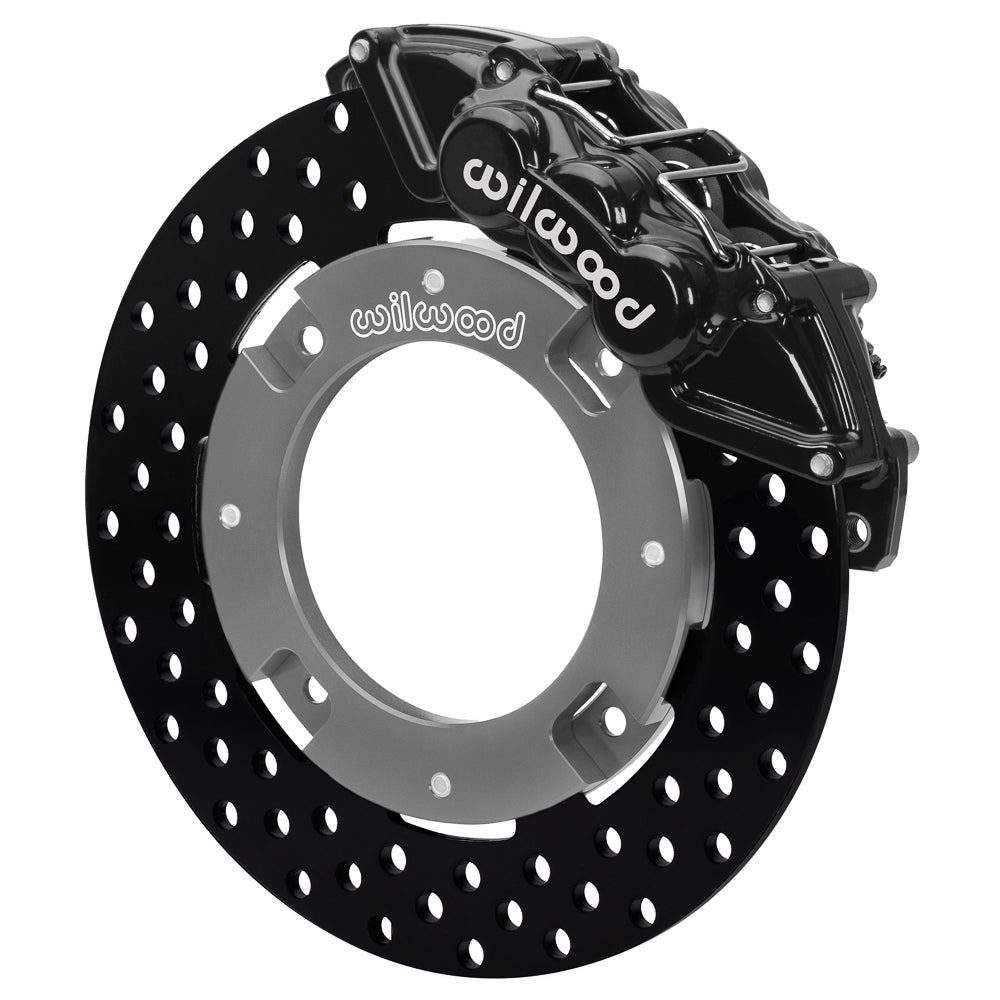

Wilwood Black Six-Piston Front Brake Conversion for Can-Am Maverick X3 (2017–2024), Drilled 11.25-Inch Rotors

Choose drilled front rotors with black six-piston calipers for listed Can-Am Maverick X3 trims. Confirm the upright grinding and wheel envelope. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Rotor dimensions, construction and face: 11.25 × 0.25 inches; Steel; solid; Drilled
• Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
• Hydraulic caliper specification: 6-piston UTV6; Black Powder Coat
• Supplied service-pad compound: BP-10
• Mounting and piston details: Lug; piston material: stainless steel
• Hydraulic inlet: M10 x 1.25
• Hose provision: Not included

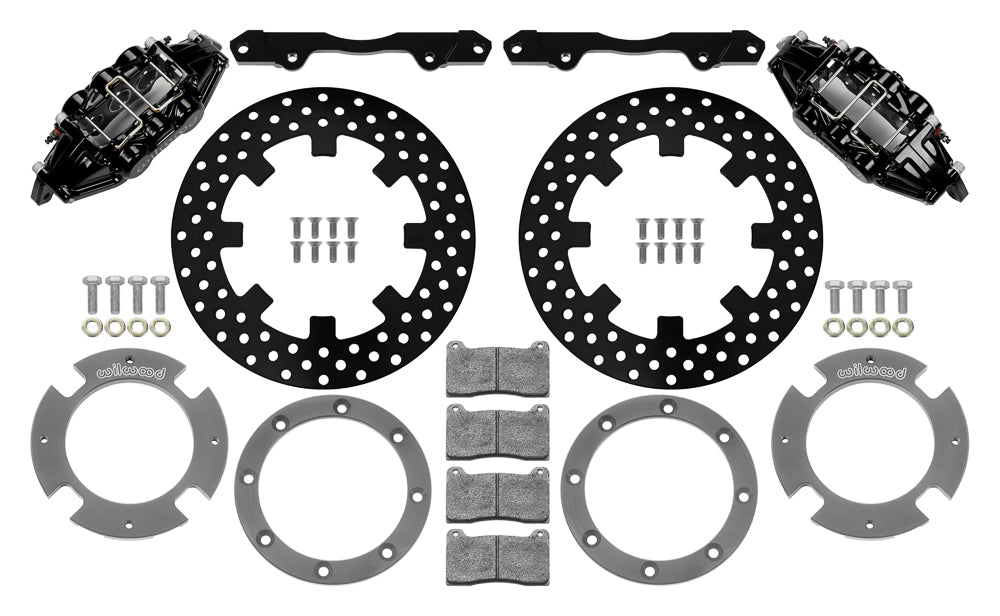

• Hardware supplied: mounting hardware
• Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16628-D
• Kit function: Front Brake Kits - Utility Vehicle; front position
• Quantity: Sold as a kit.

Fitment & Compatibility

Read the exact Can-Am Maverick X3 and X3 Max year/trim rows below; Turbo, Turbo R, Turbo RR, DS, RS, X mr and X rc names are not interchangeable coverage claims. The front UTV6 kit retains the hubs and uses dynamically mounted 11.25-inch steel rotors. DS-1488 notes that minor grinding of the casting line on the lower caliper mounting tab may be needed for caliper clearance. Remove material only if necessary as shown. Follow the diagram rather than assuming a no-modification installation. Verify the supplied banjo connection, hose routing and at least 0.080-inch clearance between caliper and wheel over the full steering range.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
