Wilwood Front UTV6 Brake Kit for Listed Can-Am Maverick X3 Models (2017–2024), Black Calipers and Plain Steel Rotors

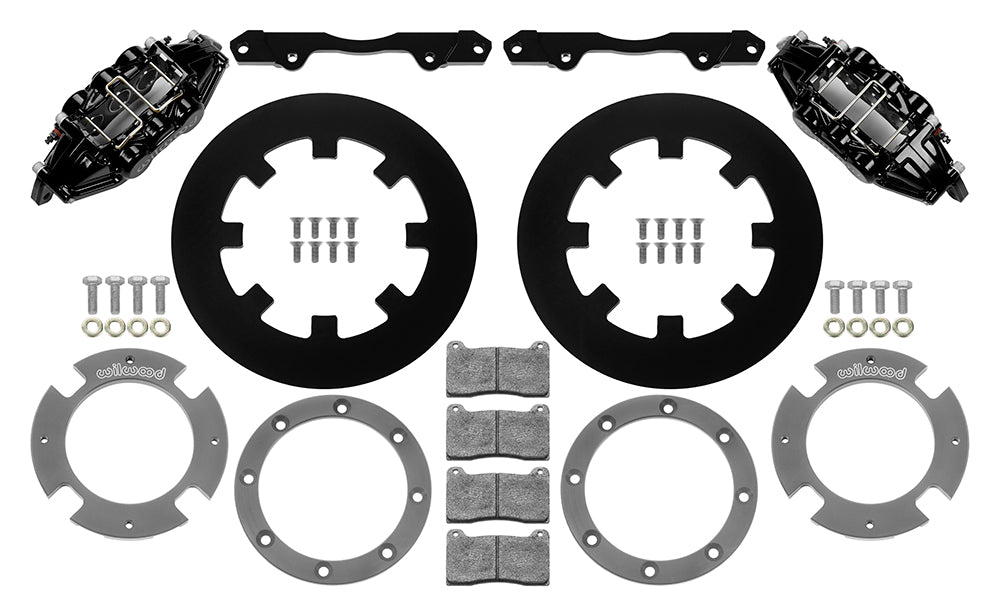

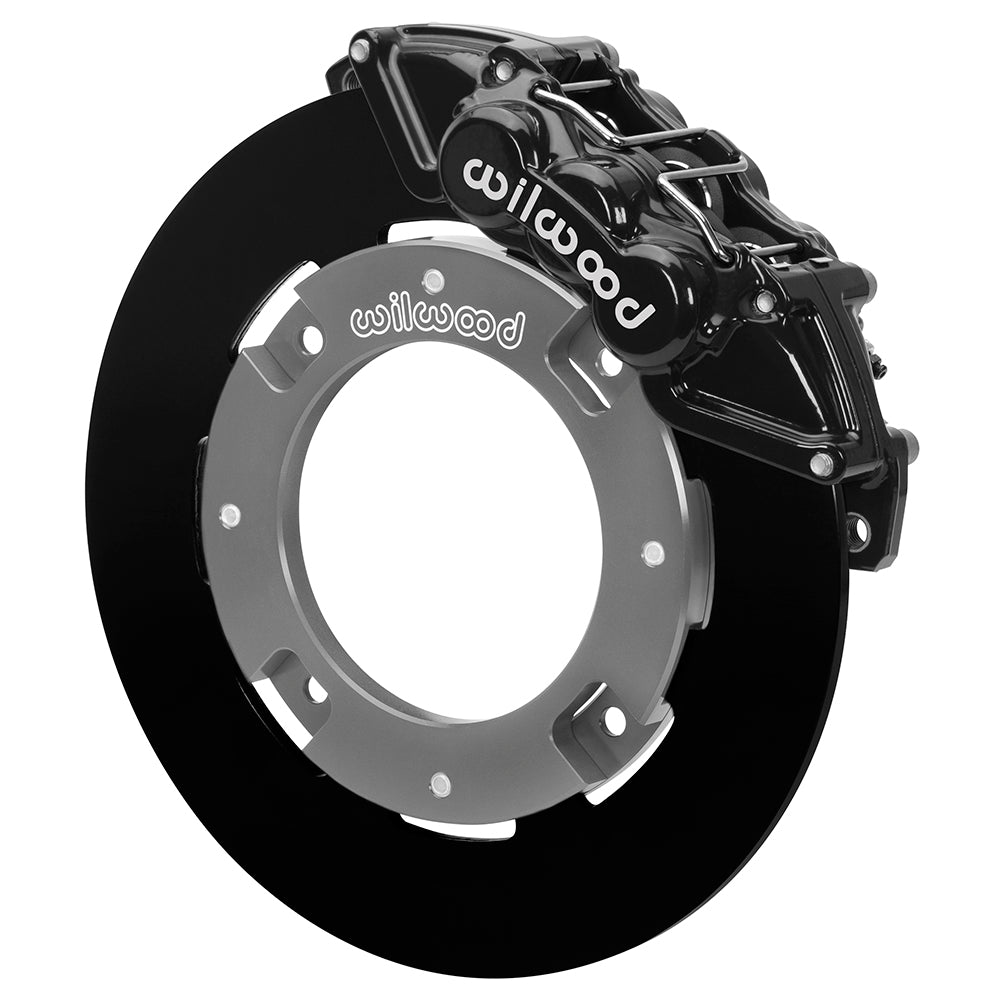

Black UTV6 front calipers and plain dynamic steel rotors serve listed Can-Am Maverick X3 models. Verify trim, wheel fit and upright clearancing. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Manufacturer part number: 140-16628
• Kit function: Front Brake Kits - Utility Vehicle; front position
• Service calipers: 6-piston UTV6; Black Powder Coat
• Caliper mounting: Lug; piston material: stainless steel
• Rotor package: 11.25 × 0.25 inches; Steel; solid; Plain Face
• Supplied service-pad compound: BP-10
• Hydraulic inlet: M10 x 1.25
• Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
• Hydraulic flexlines: Not included
• Included installation items: mounting hardware
• Not supplied: spindles, wheel hubs, master cylinder, brake booster
• Quantity: Sold as a kit.

Fitment & Compatibility

Read the exact Can-Am Maverick X3 and X3 Max year/trim rows below; Turbo, Turbo R, Turbo RR, DS, RS, X mr and X rc names are not interchangeable coverage claims. The front UTV6 kit retains the hubs and uses dynamically mounted 11.25-inch steel rotors. DS-1488 notes that minor grinding of the casting line on the lower caliper mounting tab may be needed for caliper clearance. Remove material only if necessary as shown. Follow the diagram rather than assuming a no-modification installation. Verify the supplied banjo connection, hose routing and at least 0.080-inch clearance between caliper and wheel over the full steering range.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
