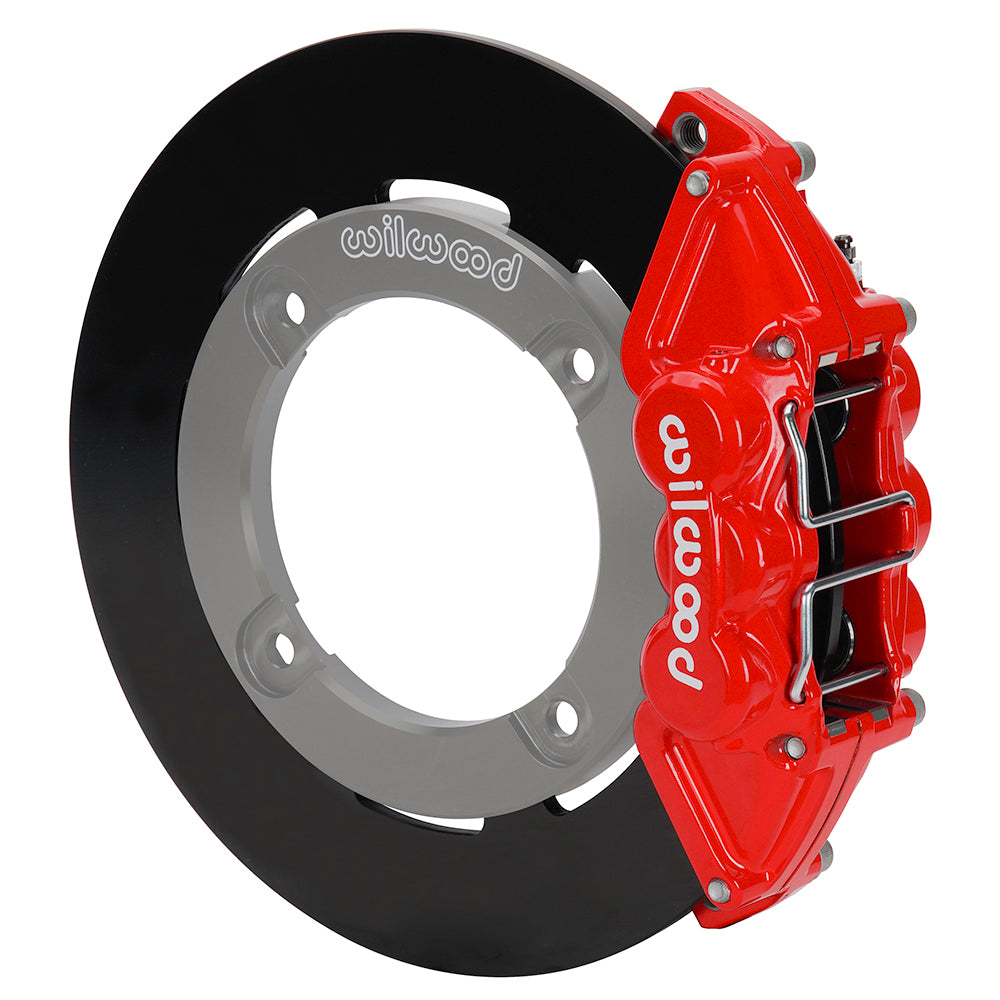

Wilwood Rear Dynamic-Mount Brake Conversion, Red UTV4 Calipers and Plain Rotors for Honda Talon (2019–2021)

Plain 11.25-inch rear rotors pair with red four-piston calipers on the Honda Talon. Confirm listed trim, model year and original hose clearance changes. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Application / axle position: Rear Brake Kits - Utility Vehicle; rear position
• Rotor specification: 11.25 × 0.25 inches; Steel; solid; Plain Face
• Supplied service-pad compound: BP-10
• Wheel-size starting point: 15 in; verify the complete clearance drawing
• Flexline inclusion: Not included; listed optional reference 220-17627 must be checked for the actual application
• Caliper family, piston count and finish: 4-piston UTV4; Red Powder Coat
• Hydraulic inlet: M10 x 1.25
• Caliper mounting: Lug; piston material: stainless steel
• Items outside the kit: spindles, wheel hubs, master cylinder, brake booster

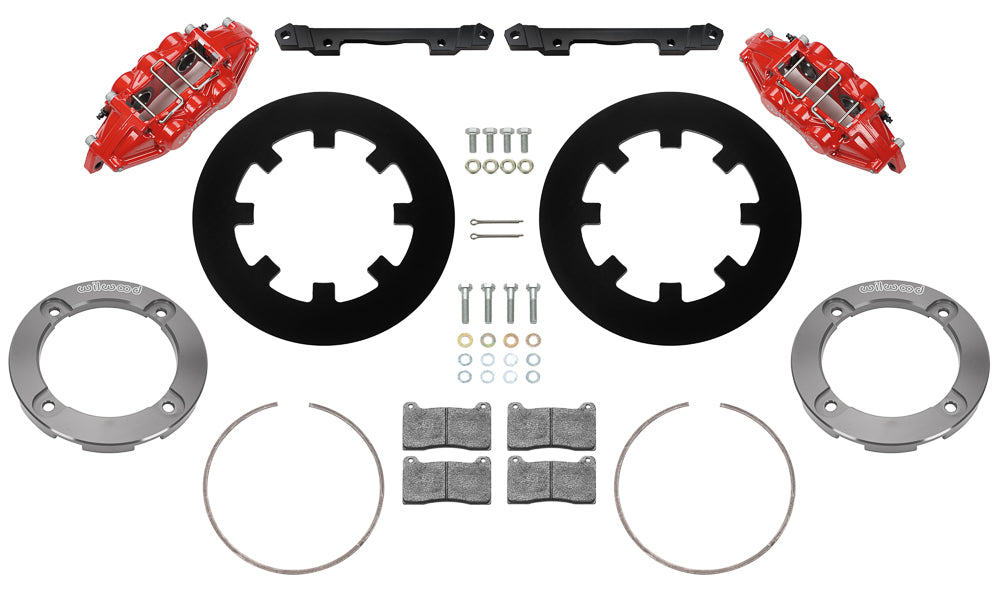

• Supplied mounting components: mounting hardware
• Manufacturer part number: 140-16627-R
• Quantity: Sold as a kit.

Fitment & Compatibility

The rear UTV4 assembly is documented for the Honda Talon applications in the table below, including two- and four-seat variants and the listed FOX Live Valve/Special Edition configurations. It uses four-piston calipers and dynamic nonvented rotors with the existing hubs. DS-1496 specifies modification of the original hose tabs, not an included replacement hose kit. Verify the banjo hardware and crush washers, the exact wheel profile and hose clearance through suspension travel. Changes to other suspension or hub components require an additional fit check.
