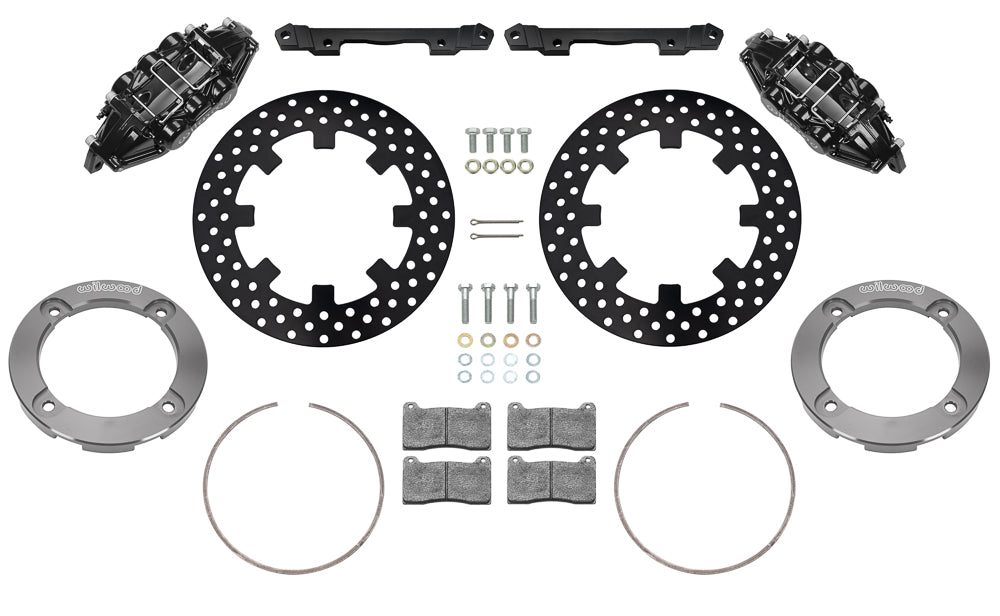

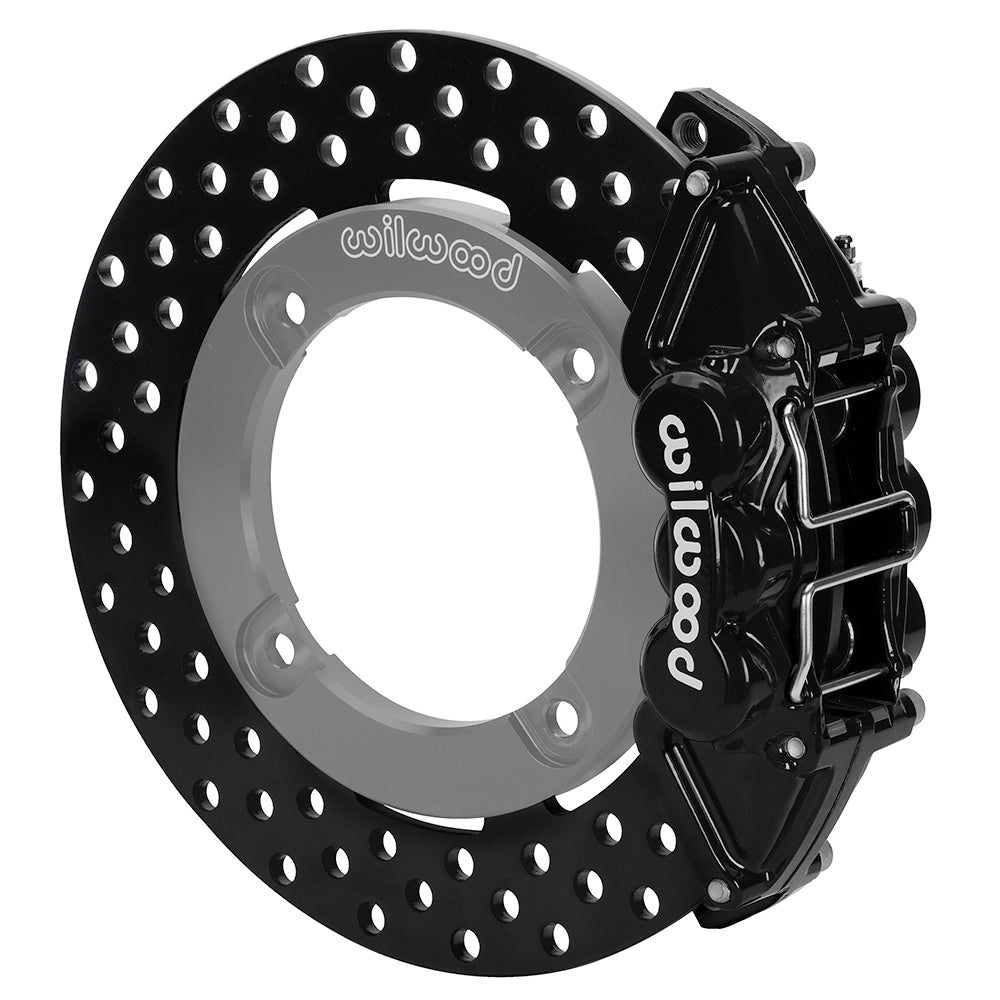

Wilwood Black UTV4 Rear Brake Conversion for Honda Talon (2019–2021), Drilled Steel Rotors and Dynamic Mounts

Drilled rear steel rotors and black four-piston calipers serve listed Honda Talon applications. Verify hose-tab changes and 15-inch wheel clearance. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Rotor dimensions, construction and face: 11.25 × 0.25 inches; Steel; solid; Drilled
• Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
• Hydraulic caliper specification: 4-piston UTV4; Black Powder Coat
• Supplied service-pad compound: BP-10
• Mounting and piston details: Lug; piston material: stainless steel
• Hydraulic inlet: M10 x 1.25
• Hose provision: Not included; listed optional reference 220-17627 must be checked for the actual application
• Hardware supplied: mounting hardware
• Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16627-D
• Kit function: Rear Brake Kits - Utility Vehicle; rear position
• Quantity: Sold as a kit.

Fitment & Compatibility

The rear UTV4 assembly is documented for the Honda Talon applications in the table below, including two- and four-seat variants and the listed FOX Live Valve/Special Edition configurations. It uses four-piston calipers and dynamic nonvented rotors with the existing hubs. DS-1496 specifies modification of the original hose tabs, not an included replacement hose kit. Verify the banjo hardware and crush washers, the exact wheel profile and hose clearance through suspension travel. Changes to other suspension or hub components require an additional fit check.

The rear four-piston UTV4 specification uses 1.00-inch piston bores and BP-10 pads. Its drilled face is still a solid, nonvented 0.25-inch-thick rotor. Check the rear caliper mounting and hose-tab procedure together before fitting the new rotors.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
