Wilwood Plain-Rotor Front Brake Conversion for Honda Talon (2019–2021), Red Six-Piston Calipers and Dynamic Rotor Mounts

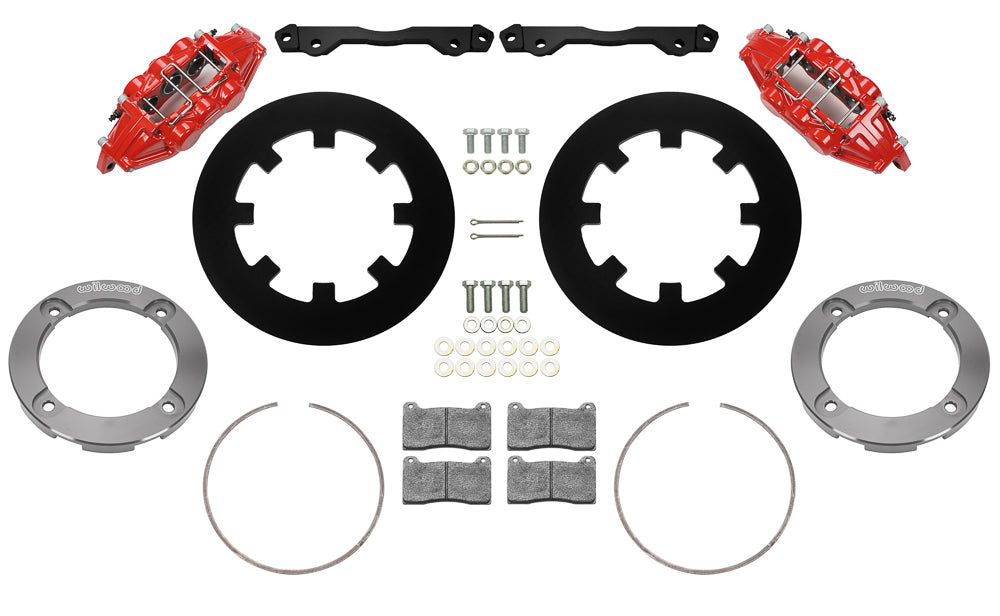

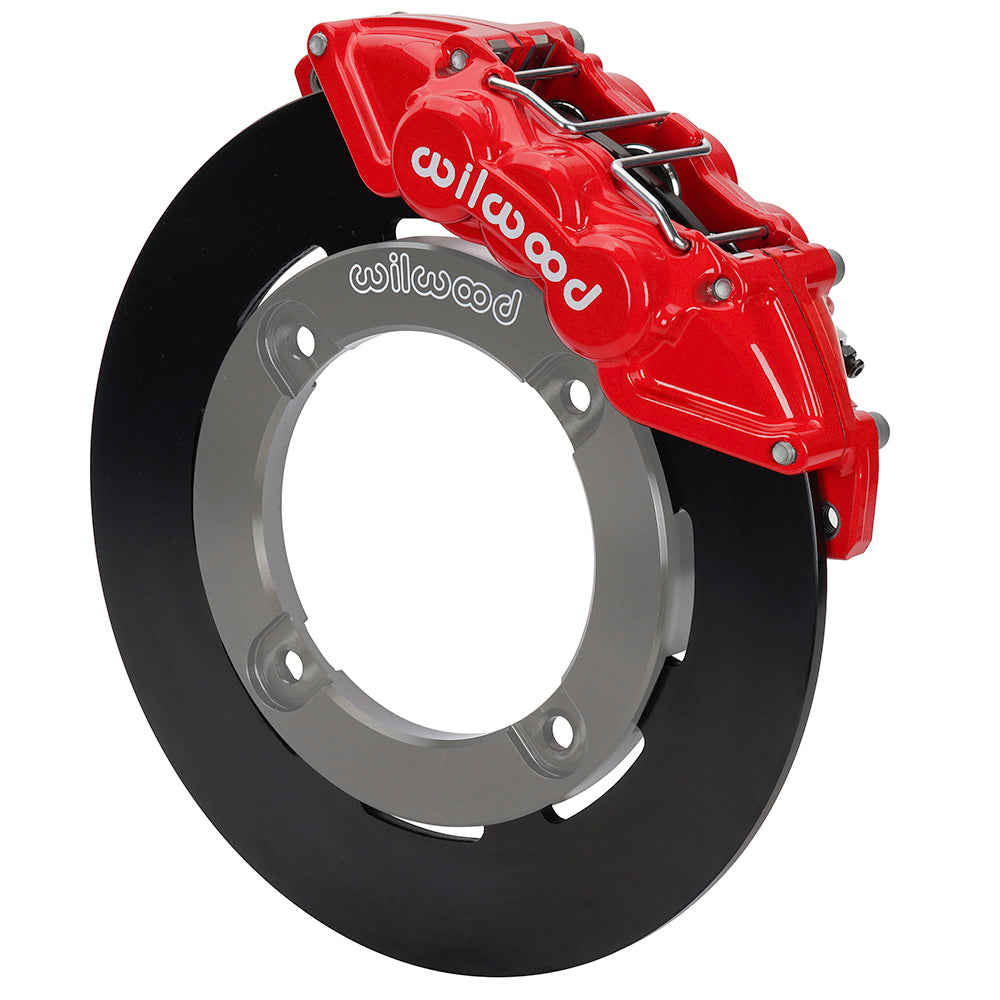

Red six-piston front calipers clamp plain steel rotors for the listed Honda Talon. Confirm 15-inch wheel space and modify original hoses as instructed. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Application / axle position: Front Brake Kits - Utility Vehicle; front position
• Rotor specification: 11.25 × 0.25 inches; Steel; solid; Plain Face
• Supplied service-pad compound: BP-10
• Wheel-size starting point: 15 in; verify the complete clearance drawing
• Flexline inclusion: Not included; listed optional reference 220-17626 must be checked for the actual application
• Caliper family, piston count and finish: 6-piston UTV6; Red Powder Coat
• Hydraulic inlet: M10 x 1.25
• Caliper mounting: Lug; piston material: stainless steel
• Items outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Supplied mounting components: mounting hardware
• Manufacturer part number: 140-16626-R
• Quantity: Sold as a kit.

Fitment & Compatibility

Match every Honda Talon model and trim row in the table below, including the listed 1000R, 1000X and 1000X-4 versions. The six-piston UTV6 conversion reuses the front hubs and uses dynamically mounted nonvented steel rotors. DS-1495 requires modification of the original brake-hose locating tabs; alternative flexlines must be selected separately. Use the supplied M10 × 1.25 banjo hardware and copper washers as instructed. Check at least 0.080-inch caliper-to-wheel clearance and hose movement through the full steering and suspension range.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
