Wilwood Red UTV6 Front Brake Kit, Drilled 11.25-Inch Dynamic Rotors for Honda Talon (2019–2021)

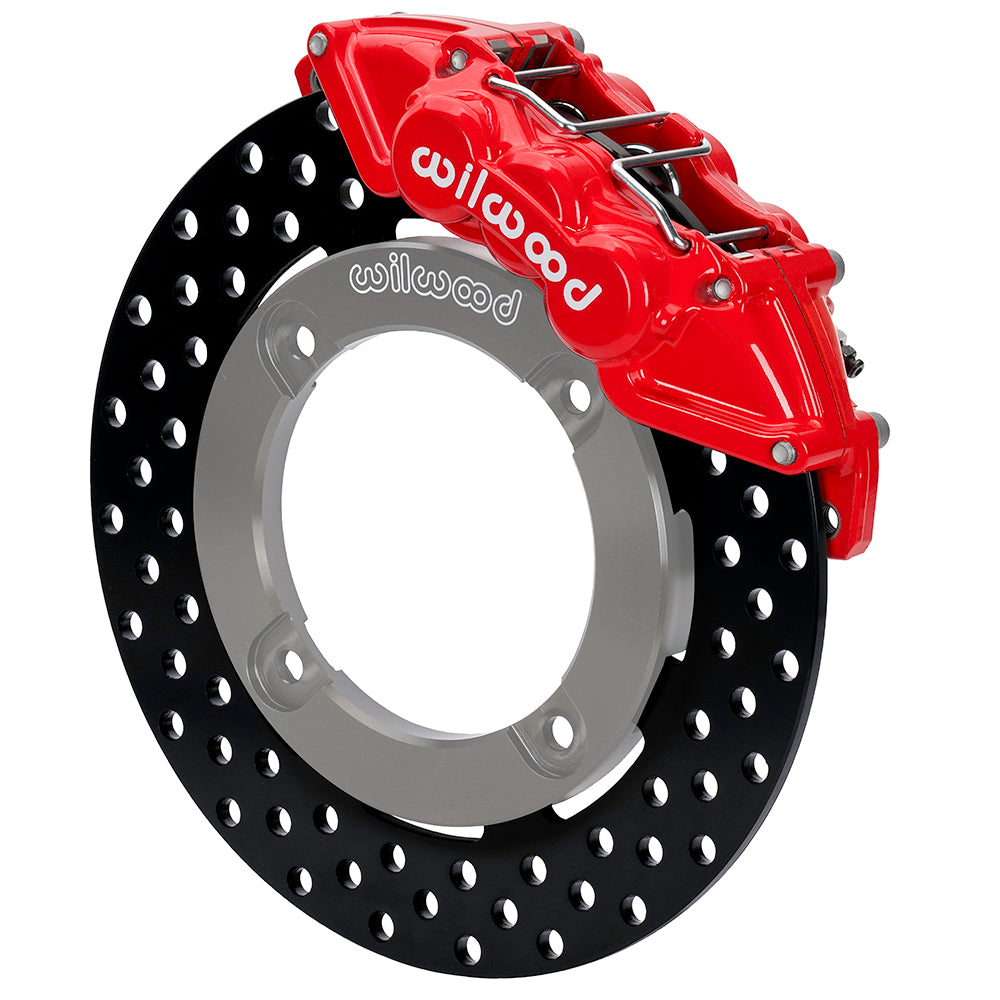

Red UTV6 front calipers and drilled dynamic-mount rotors suit listed Honda Talon machines. Match year and trim, then check banjo-hose modifications. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Service-brake configuration: 6-piston UTV6; Red Powder Coat
• Brake pad selection supplied: BP-10
• Caliper fluid connection: M10 x 1.25
• Caliper mounting: Lug; piston material: stainless steel
• Rotor assembly dimensions and material: 11.25 × 0.25 inches; Steel; solid; Drilled
• Nominal wheel diameter reference: 15 in; verify the complete clearance drawing

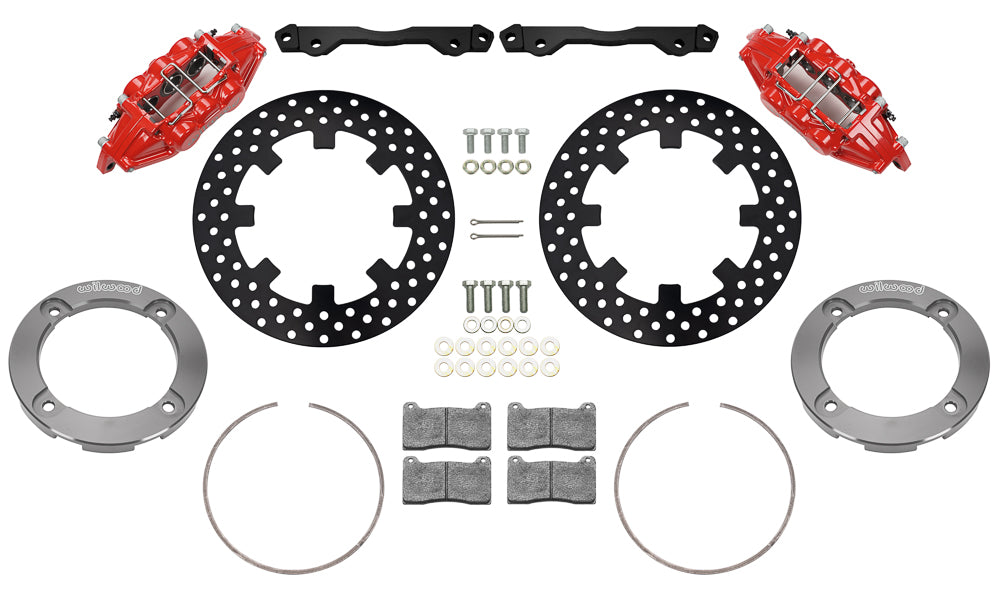

• Included installation items: mounting hardware
• Hydraulic flexlines: Not included; listed optional reference 220-17626 must be checked for the actual application
• Quantity: Sold as a kit.
• Separate components required: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16626-DR
• Kit function: Front Brake Kits - Utility Vehicle; front position

Fitment & Compatibility

Match every Honda Talon model and trim row in the table below, including the listed 1000R, 1000X and 1000X-4 versions. The six-piston UTV6 conversion reuses the front hubs and uses dynamically mounted nonvented steel rotors. DS-1495 requires modification of the original brake-hose locating tabs; alternative flexlines must be selected separately. Use the supplied M10 × 1.25 banjo hardware and copper washers as instructed. Check at least 0.080-inch caliper-to-wheel clearance and hose movement through the full steering and suspension range.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
