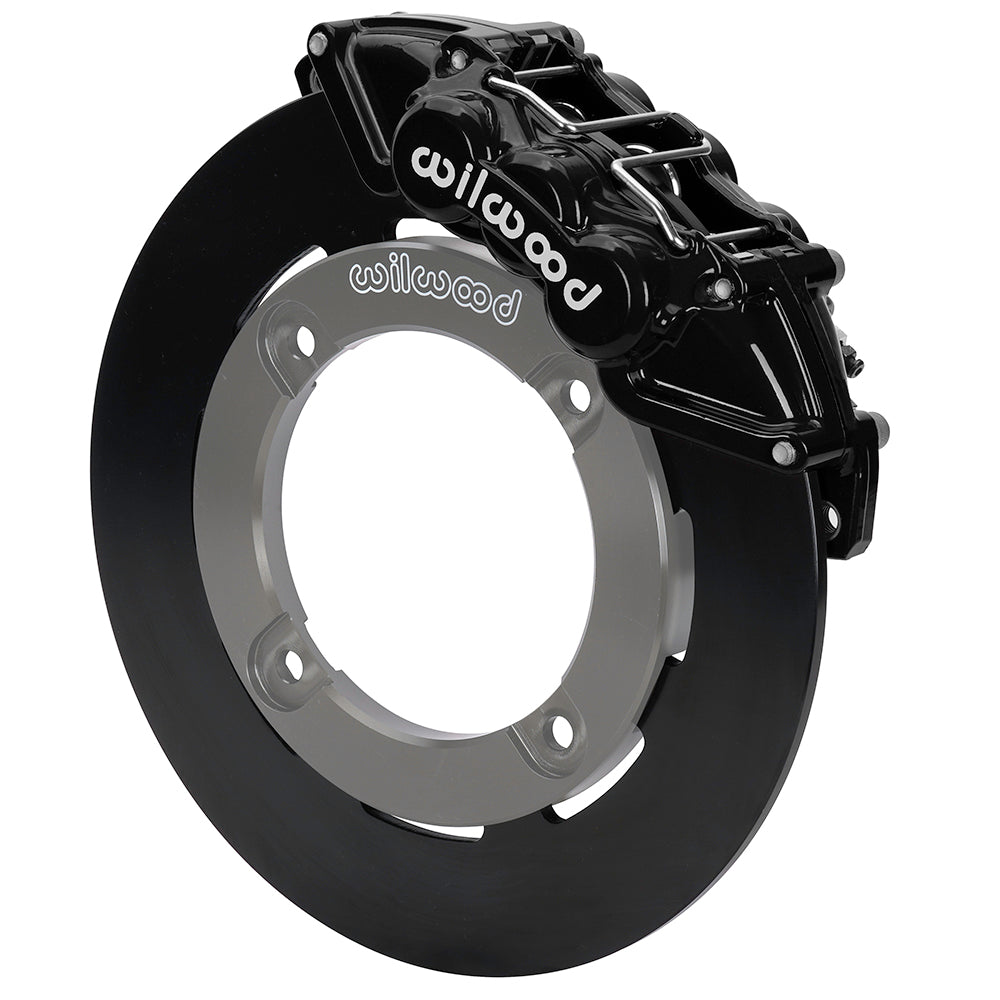

Wilwood UTV6 Front Brake Kit for Honda Talon (2019–2021), Black Six-Piston Calipers and Plain 11.25-Inch Rotors

Honda Talon front conversion uses black UTV6 calipers and plain 11.25-inch steel rotors. Check model year, 15-inch wheel fit and hose modifications. This UTV conversion combines fixed multi-piston calipers with dynamically mounted solid steel rotors, retaining the specified original hubs. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Manufacturer part number: 140-16626
• Kit function: Front Brake Kits - Utility Vehicle; front position
• Service calipers: 6-piston UTV6; Black Powder Coat
• Caliper mounting: Lug; piston material: stainless steel
• Rotor package: 11.25 × 0.25 inches; Steel; solid; Plain Face
• Supplied service-pad compound: BP-10
• Hydraulic inlet: M10 x 1.25
• Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
• Hydraulic flexlines: Not included; listed optional reference 220-17626 must be checked for the actual application

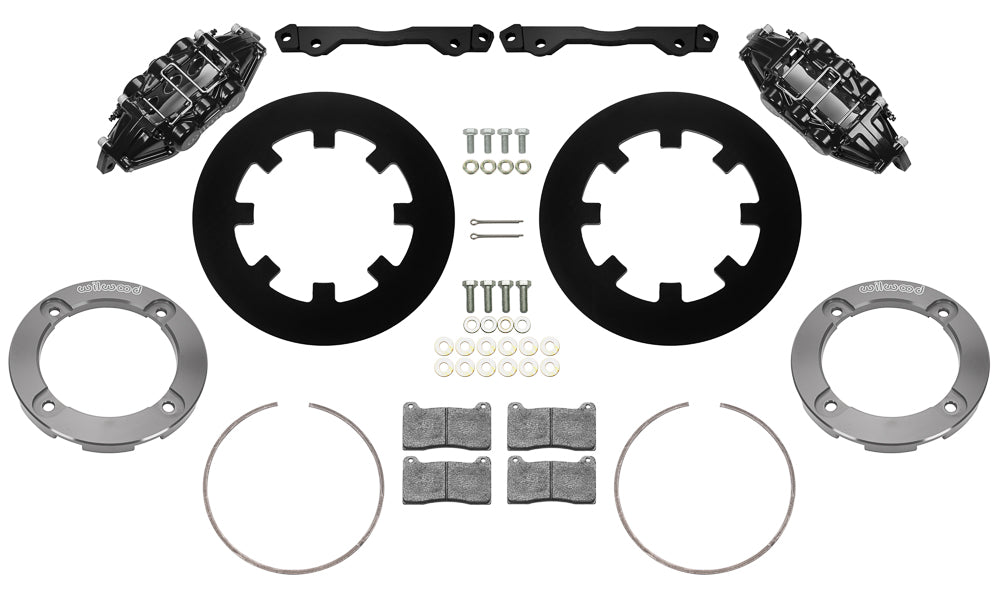

• Included installation items: mounting hardware
• Not supplied: spindles, wheel hubs, master cylinder, brake booster
• Quantity: Sold as a kit.

Fitment & Compatibility

Match every Honda Talon model and trim row in the table below, including the listed 1000R, 1000X and 1000X-4 versions. The six-piston UTV6 conversion reuses the front hubs and uses dynamically mounted nonvented steel rotors. DS-1495 requires modification of the original brake-hose locating tabs; alternative flexlines must be selected separately. Use the supplied M10 × 1.25 banjo hardware and copper washers as instructed. Check at least 0.080-inch caliper-to-wheel clearance and hose movement through the full steering and suspension range.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
