Product details

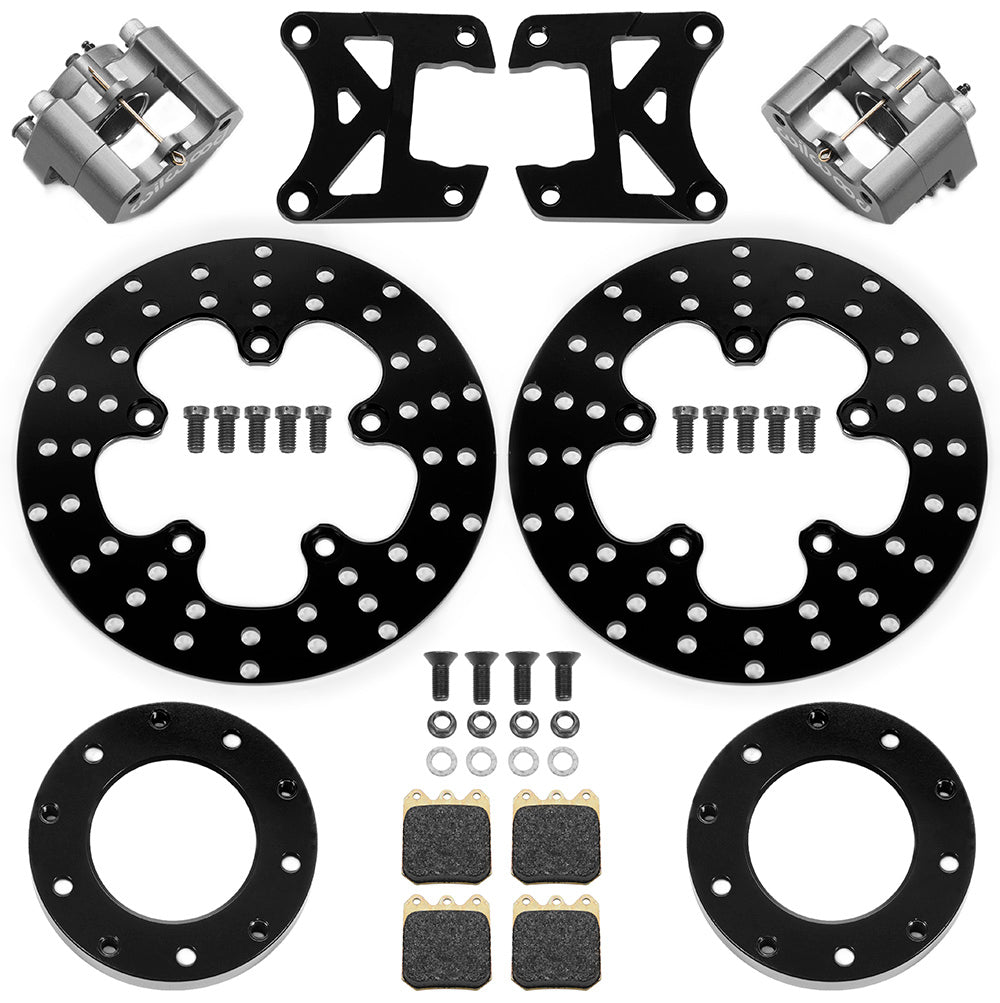

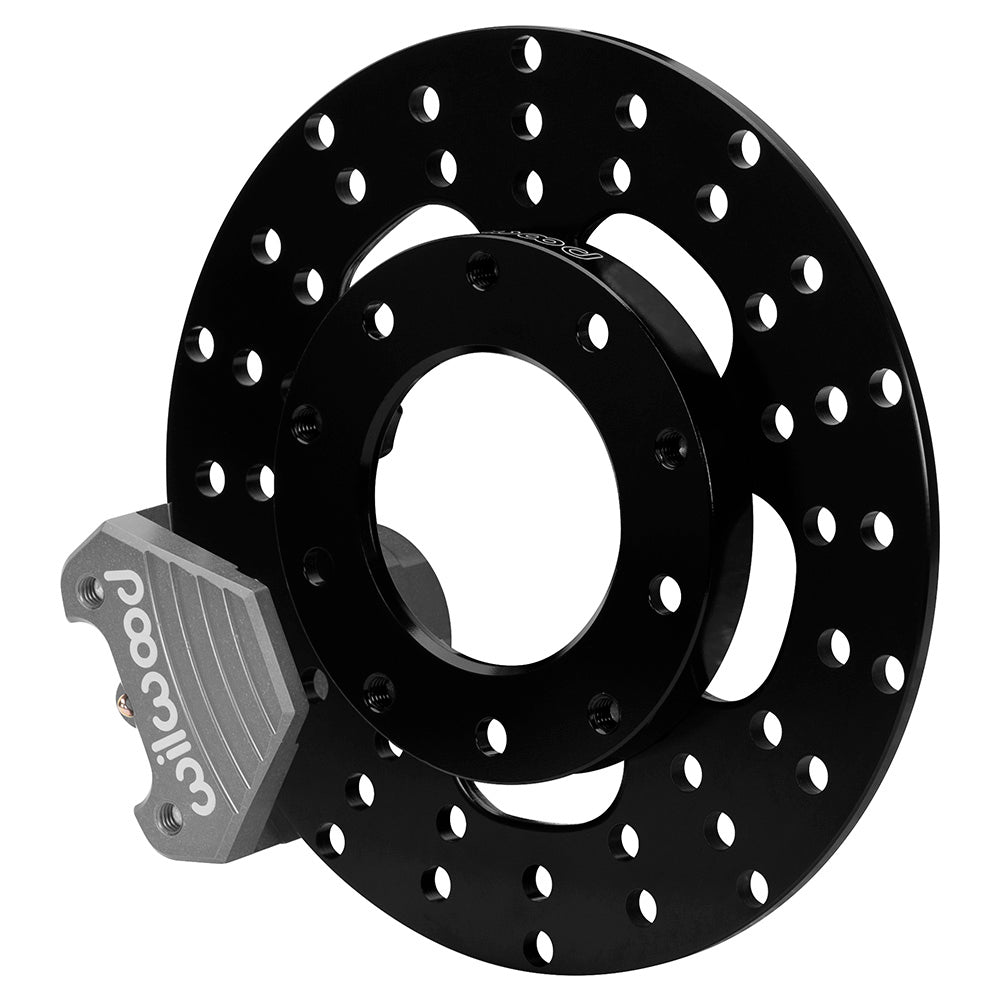

Santhuff spindle-mount front drag brakes use floating single-piston calipers and drilled steel rotors. Verify strut type and the 0.900-inch hat offset. The Dynalite Single Floater configuration mounts its rotor to the spindle-mount wheel for a purpose-built lightweight drag-racing installation. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its range serves motorsport, street-performance and specialized applications; each component must match the complete brake system.
Technical Details
- Rotor dimensions, construction and face: 10.00 × 0.25 inches; Steel; solid; Drilled
- Rotor / hub bolt-circle specification: 5 x 4.75 in; 5 x 120.65 mm
- Hydraulic caliper specification: 1-piston Dynalite Single Floater; Type III Anodize
- Supplied service-pad compound: BP-20
- Mounting and piston details: Floating; piston material: stainless steel
- Hydraulic inlet: 1/8-27 NPT
- Hose provision: Not included
- Hardware supplied: mounting hardware
- Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
- Manufacturer part number: 140-16559-D
- Kit function: Front Brake Kits - Drag Race; front position
- Quantity: Sold as a kit.
Fitment & Compatibility
Match the Santhuff strut/spindle and spindle-mount wheel before ordering. This version uses a 0.900-inch hat offset, which differs from the related AFCO configuration. DS-1476 covers the wheel-mounted drilled steel rotor and floating caliper arrangement. The lightweight front assembly is intended for drag-race staging or supplementary braking, with the vehicle relying on its rear brakes and appropriate other stopping systems. Supply the hydraulic connection and retention hardware, check bracket fit and hose routing, and keep this kit within its race-only installation scope.
Wilwood product specifications · Installation instructions
For a race-brake fitment check backed by more than 20 years of parts experience, send PMB Performance the hub, spindle, wheel and complete brake-system details. Selection depends on the actual competition installation.
