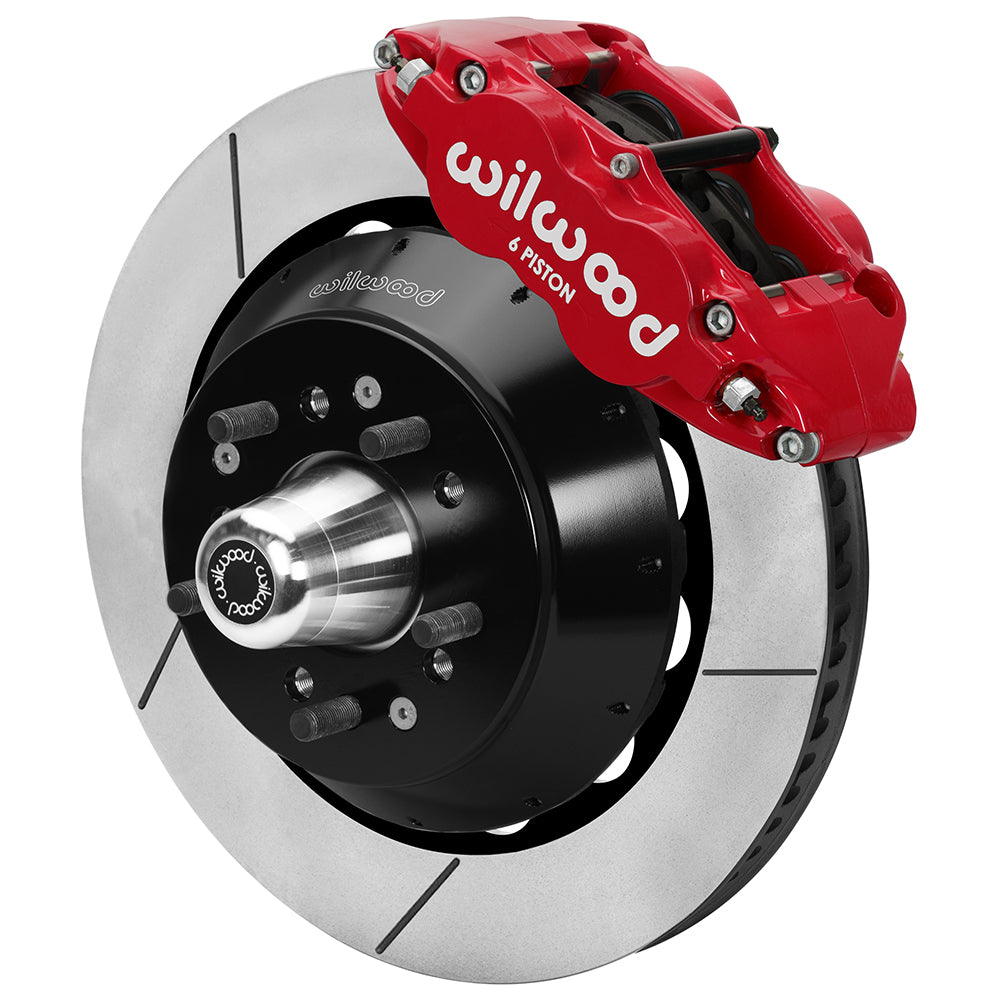

Wilwood Ford/Mercury Front GT Brake Conversion (1970–1973), Red Superlite Calipers and Aluminum Hubs for Factory Disc Spindles

Red six-piston calipers and slotted GT front rotors equip listed Ford/Mercury factory disc spindles. Match spindle year and 0.25-inch hub change. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use. Calipers, master cylinders, brake rotors, valves, brake lines and fittings form its range; the complete brake system determines which individual components are suitable.

Technical Details

• Application / axle position: Front Brake Kits - Street Performance; front position
• Rotor specification: 14.00 × 1.10 inches; Spec-37 Iron; vented; GT Slotted
• Supplied service-pad compound: BP-20
• Wheel-size starting point: 18 in; verify the complete clearance drawing
• Flexline inclusion: Not included; listed optional reference 220-9195 must be checked for the actual application
• Caliper family, piston count and finish: 6-piston Forged Narrow Superlite 6R; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Wheel-face change: +.25 inches per side relative to the original wheel face; verify wheel and fender clearance
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Caliper mounting: Radial; piston material: stainless steel
• Items outside the kit: spindles, master cylinder, brake booster

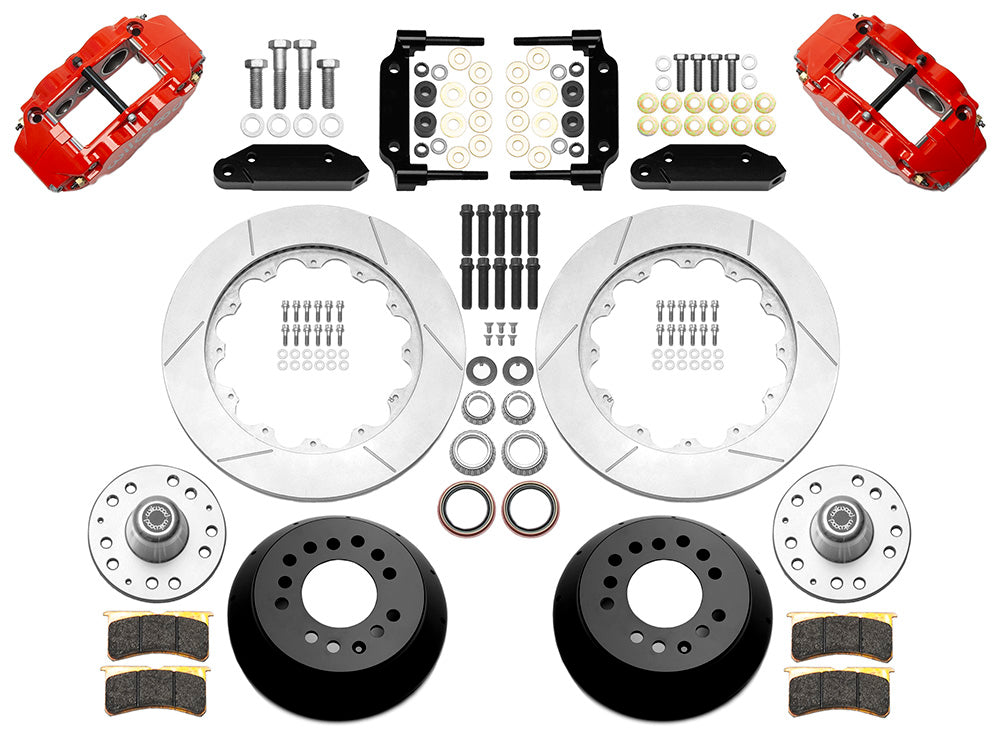

• Supplied mounting components: mounting hardware, wheel hubs
• Manufacturer part number: 140-16496-R
• Quantity: Sold as a kit.

Fitment & Compatibility

The factory disc-brake spindle is essential on these listed Ford and Mercury applications. DS-1449 documents the 1970–1973 five-lug Mustang arrangement; the chart below adds individually specified Fairlane, Falcon, Ranchero, Torino, Cougar, Cyclone, Montego and Comet applications. Observe the 1970 Mustang GT350/GT500 exclusion and every year-specific row. Hubs and bearings accompany the brake kit, but spindles and hoses do not. The catalog +0.25-inch hub change affects wheel placement. Verify the exact spindle and wheel drawing before installation.
