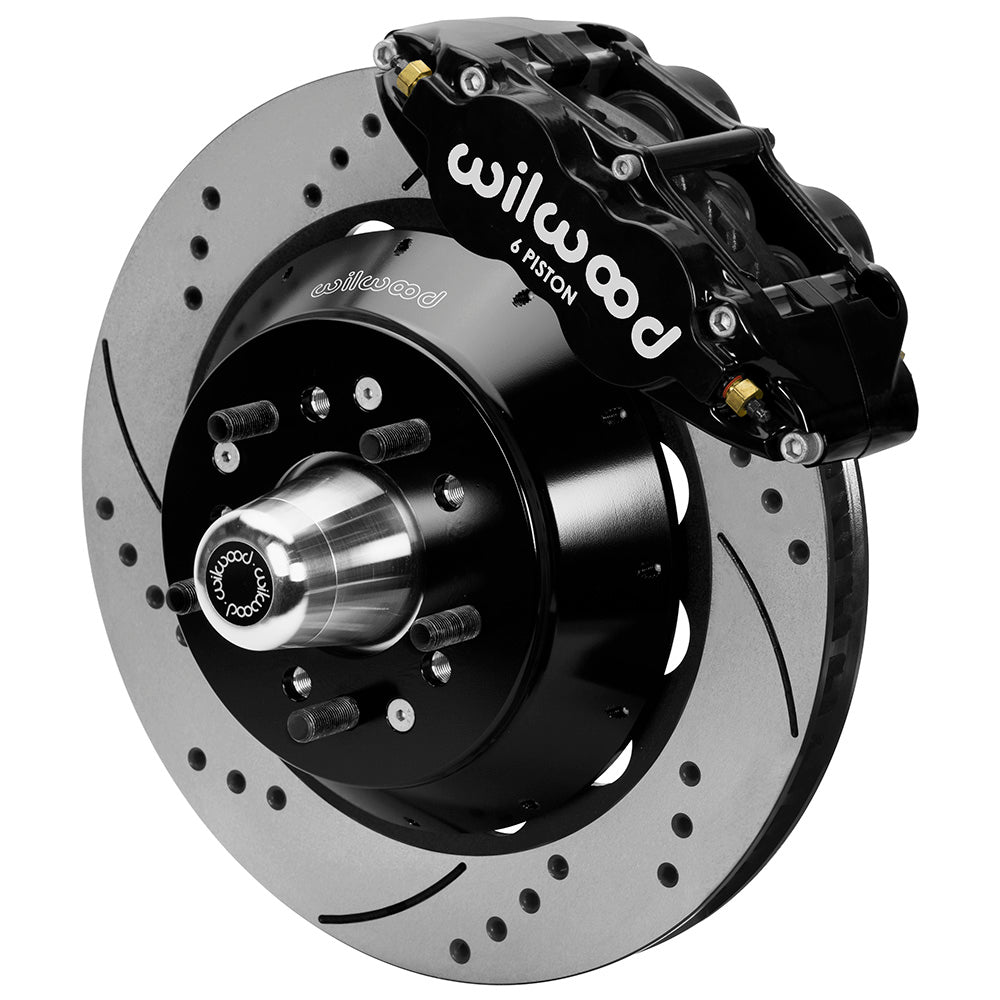

Wilwood Black Superlite Front Brake Conversion, SRP 14-Inch Rotors and Hubs for Listed Ford/Mercury Disc-Spindle Models (1970–1973)

Listed Ford/Mercury front disc spindles accept black Superlite calipers and 14-inch SRP rotors. Verify five-lug hubs and the exact spindle year. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use. Calipers, master cylinders, brake rotors, valves, brake lines and fittings form its range; the complete brake system determines which individual components are suitable.

Technical Details

• Wheel-face change: +.25 inches per side relative to the original wheel face; verify wheel and fender clearance
• Rotor dimensions, construction and face: 14.00 × 1.10 inches; Spec-37 Iron; vented; SRP Drilled & Slotted
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Hydraulic caliper specification: 6-piston Forged Narrow Superlite 6R; Black Powder Coat
• Supplied service-pad compound: BP-10
• Mounting and piston details: Radial; piston material: stainless steel
• Hydraulic inlet: 1/8-27 NPT
• Hose provision: Not included; listed optional reference 220-9195 must be checked for the actual application

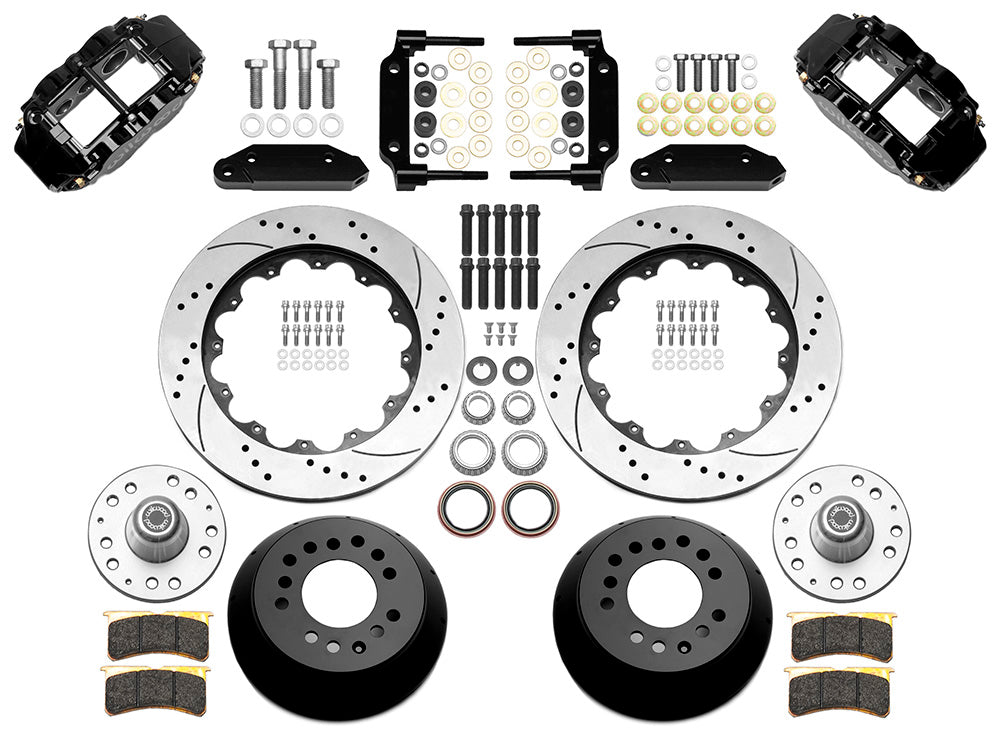

• Hardware supplied: mounting hardware, wheel hubs
• Components to provide separately: spindles, master cylinder, brake booster
• Manufacturer part number: 140-16496-D
• Kit function: Front Brake Kits - Street Performance; front position
• Quantity: Sold as a kit.

Fitment & Compatibility

The factory disc-brake spindle is essential on these listed Ford and Mercury applications. DS-1449 documents the 1970–1973 five-lug Mustang arrangement; the chart below adds individually specified Fairlane, Falcon, Ranchero, Torino, Cougar, Cyclone, Montego and Comet applications. Observe the 1970 Mustang GT350/GT500 exclusion and every year-specific row. Hubs and bearings accompany the brake kit, but spindles and hoses do not. The catalog +0.25-inch hub change affects wheel placement. Verify the exact spindle and wheel drawing before installation.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
