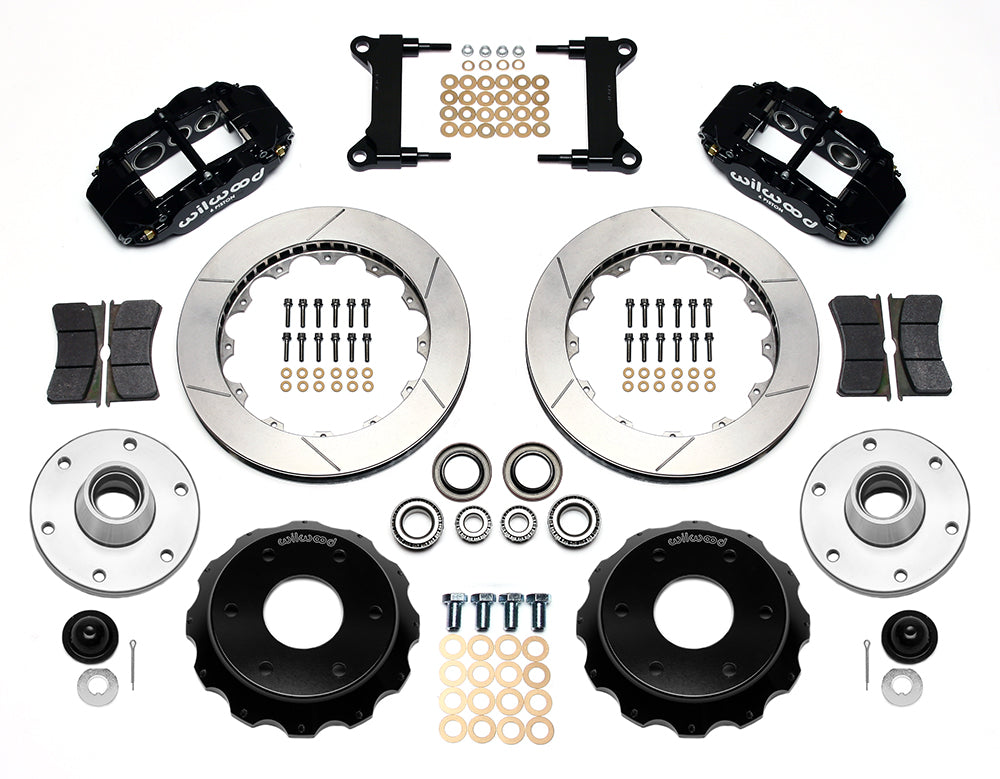

Wilwood black front brake kit for Chevrolet/GMC six-lug 13.06-inch Superlite drop-spindle applications, laid out with two-piece slotted 13.06-inch rotors, hubs, bearings, pads, brackets and fasteners

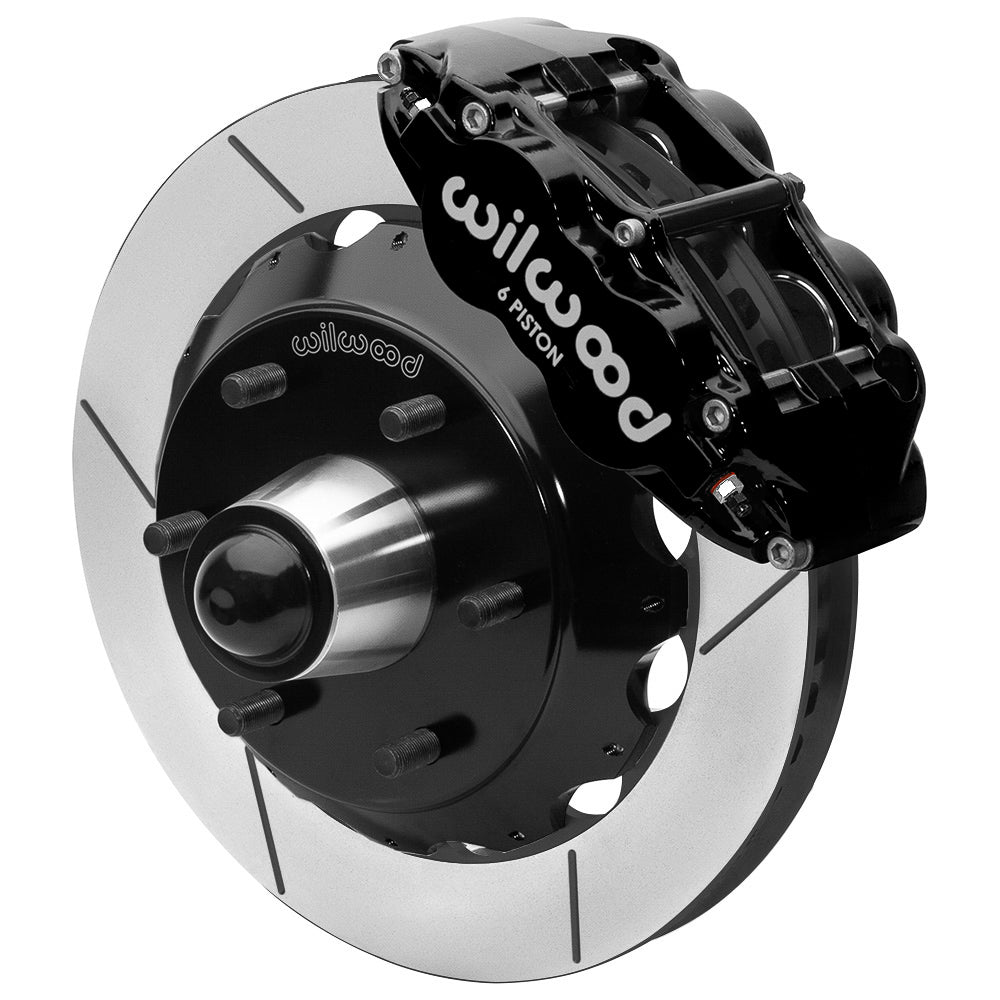

Wilwood black front caliper beside the assembled 13.06-inch slotted rotor for the Chevrolet/GMC six-lug 13.06-inch Superlite drop-spindle brake conversion, with the hub and wheel studs visible
Wilwood black front brake kit for Chevrolet/GMC six-lug 13.06-inch Superlite drop-spindle applications, laid out with two-piece slotted 13.06-inch rotors, hubs, bearings, pads, brackets and fasteners
Wilwood black front caliper beside the assembled 13.06-inch slotted rotor for the Chevrolet/GMC six-lug 13.06-inch Superlite drop-spindle brake conversion, with the hub and wheel studs visible

Wilwood Front Superlite 6R Six-Lug Hub Brake Kit, Black Calipers and 13.06-Inch GT Rotors for Listed Chevrolet/GMC Drop Spindles

SKU: 140-16457

$2,446.34 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Listed Chevrolet/GMC drop-spindle front brakes use black Superlite 6R calipers and 13.06-inch GT rotors. Verify the CPP or Ridetech spindle number. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its range serves motorsport, street-performance and specialized applications; each component must match the complete brake system.

Technical Details

  • Manufacturer part number: 140-16457
  • Kit function: Front Brake Kits - Street Performance; front position
  • Service calipers: 6-piston Forged Narrow Superlite 6R; Black Powder Coat
  • Caliper mounting: Radial; piston material: stainless steel
  • Rotor package: 13.06 × 1.25 inches; Spec-37 Iron; vented; GT Slotted
  • Supplied service-pad compound: BP-20
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor / hub bolt-circle specification: 6 x 5.5 in; 6 x 139.7 mm
  • Nominal wheel diameter reference: 17 in; verify the complete clearance drawing
  • Hydraulic flexlines: Not included; listed optional reference 220-7056, 220-11237 must be checked for the actual application
  • Included installation items: mounting hardware, wheel hubs
  • Not supplied: spindles, master cylinder, brake booster
  • Quantity: Sold as a kit.

Fitment & Compatibility

Check the listed Chevrolet/GMC truck, year and spindle condition in the chart below. Applicable drop spindles include CPP CP30106-2, CP30106-3 and CP30106-4, or the listed Ridetech 11349300, 11359300 and 11369300 configurations. Use the assembly instructions for the exact installed spindle; DS-1445 illustrates the CPP arrangement. Stock spindles are not substitutes. Six-lug 6 × 5.50-inch hubs are included, but the drop spindles and flexlines are separate. Verify hub register, bearing adjustment, hose length and the 13.06-inch rotor wheel envelope.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.

Years Make Model Model option Front brakes Rear brakes Kit application Notes
1963-1967 Chevrolet C10 Panel Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1967 Chevrolet C10 Panel Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1967 Chevrolet C10 Panel Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1967 Chevrolet C10 Panel Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1974 Chevrolet C10 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1974 Chevrolet C10 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1974 Chevrolet C10 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1974 Chevrolet C10 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 Chevrolet Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 Chevrolet Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 Chevrolet Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 Chevrolet Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1965 GMC 1000 Series Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1965 GMC 1000 Series Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1965 GMC 1000 Series Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1965 GMC 1000 Series Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 GMC Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 GMC Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 GMC Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1963-1966 GMC Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1965, 1967, 1969 Chevrolet C10 Pickup w/ Ridetech Drop Spindle Drop Drum Front Kit 1, 5, 2, 3, 4
1965, 1967, 1969 Chevrolet C10 Pickup w/ Ridetech Drop Spindle Drop Drum Front Kit 1, 5, 2, 3, 4
1966 GMC 1000 Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1966 GMC 1000 Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1966 GMC 1000 Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1966 GMC 1000 Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1986 Chevrolet C10 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1986 Chevrolet C10 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1986 Chevrolet C10 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1986 Chevrolet C10 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974 GMC C15/C1500 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974 GMC C15/C1500 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974 GMC C15/C1500 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974 GMC C15/C1500 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1967-1974, 1979-1986 GMC C1500 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1974 Chevrolet Blazer Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1974 Chevrolet Blazer Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1974 Chevrolet Blazer Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1974 Chevrolet Blazer Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1982 GMC Jimmy Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1982 GMC Jimmy Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1982 GMC Jimmy Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1970-1982 GMC Jimmy Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1986 Chevrolet C10 Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1986 Chevrolet C10 Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1986 Chevrolet C10 w/ Ridetech Drop Spindle Drop Drum Front Kit 1, 5, 2, 3, 4
1975-1986 Chevrolet C10 w/ Ridetech Drop Spindle Drop Drum Front Kit 1, 5, 2, 3, 4
1975-1982 Chevrolet K5 Blazer Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1982 Chevrolet K5 Blazer Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1982 Chevrolet K5 Blazer Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1982 Chevrolet K5 Blazer Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1975-1978 GMC C15 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1979-1986 GMC C1500 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1979-1986 GMC C1500 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1979-1986 GMC C1500 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1979-1986 GMC C1500 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Pickup w/ Ridetech Drop Spindle Drop Drum Front Kit 1, 5, 2, 3, 4
1987 Chevrolet R10 Pickup w/ Ridetech Drop Spindle Drop Drum Front Kit 1, 5, 2, 3, 4
1987 Chevrolet R10 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Suburban Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 Chevrolet R10 Suburban Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Pickup Vehicles using CPP 2" Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
1987 GMC R1500 Pickup Vehicles using Ridetech Drop Spindle Drop Drum Front Kit 1, 2, 3, 4
