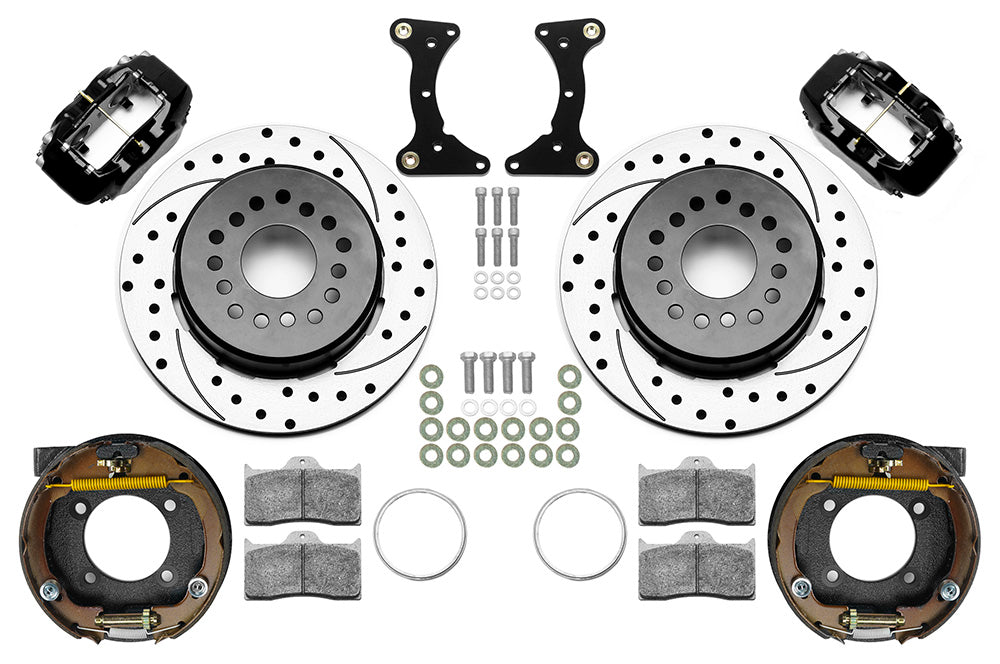

Wilwood black rear brake kit for GM S10 Dynalite 2.75-inch offset applications, laid out with one-piece drilled and slotted 12.19-inch rotors, internal parking shoe assemblies, pads, brackets and fasteners

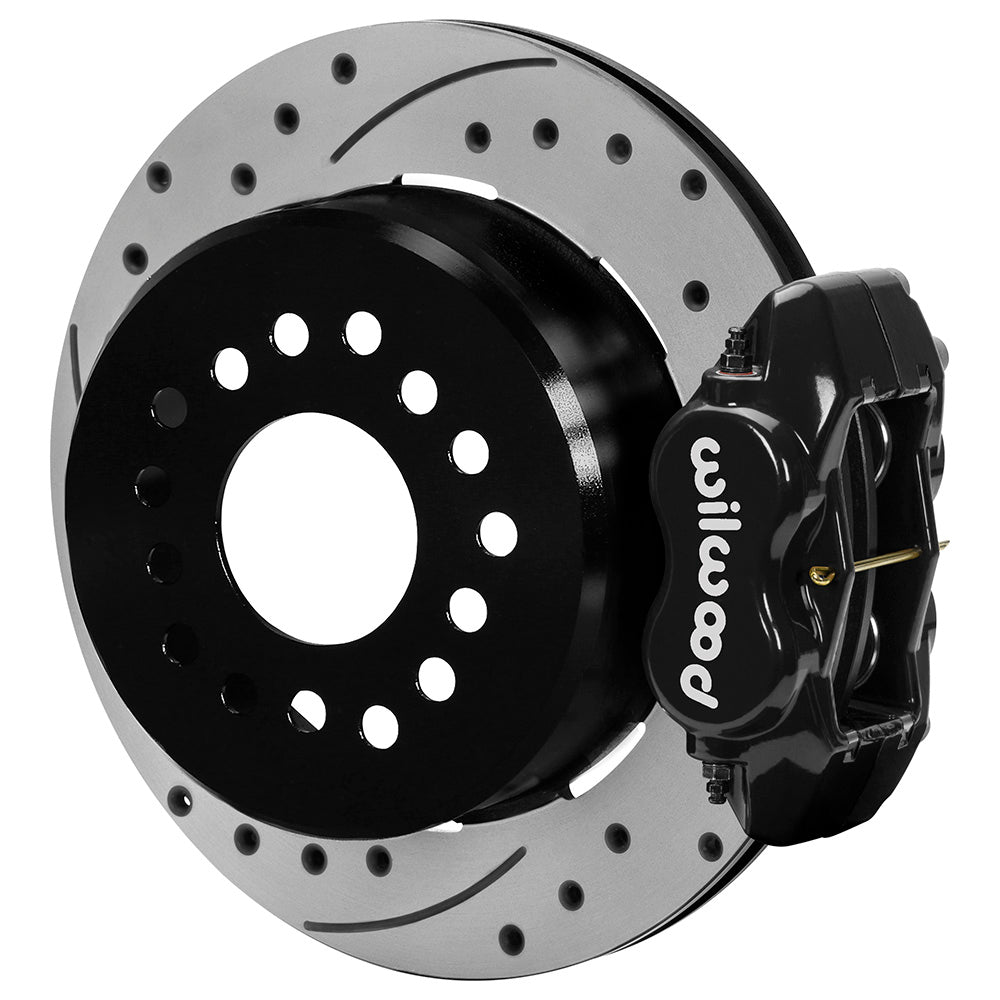

Wilwood black rear caliper beside the assembled 12.19-inch drilled and slotted rotor for the GM S10 Dynalite 2.75-inch offset brake conversion
Wilwood black rear brake kit for GM S10 Dynalite 2.75-inch offset applications, laid out with one-piece drilled and slotted 12.19-inch rotors, internal parking shoe assemblies, pads, brackets and fasteners
Wilwood black rear caliper beside the assembled 12.19-inch drilled and slotted rotor for the GM S10 Dynalite 2.75-inch offset brake conversion

Wilwood Black Four-Piston Rear Brake Conversion, SRP 12.19-Inch Parking Rotors for GM S10 7-5/8 2.75-Inch Offset

SKU: 140-16445-D

$1,256.75 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Drilled rear rotors combine with black Dynalite calipers and internal parking hardware for GM S10 7-5/8 axles. Confirm the 2.75-inch offset. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use. Calipers, master cylinders, brake rotors, valves, brake lines and fittings form its range; the complete brake system determines which individual components are suitable.

Technical Details

  • Housing / axle interface: S10 7-5/8; axle offset 2.75 in
  • Rotor dimensions, construction and face: 12.19 × 0.81 inches; Iron; vented; SRP Drilled & Slotted
  • Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
  • Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
  • Hydraulic caliper specification: 4-piston Forged Dynalite Internal; Black Powder Coat
  • Supplied service-pad compound: BP-10
  • Mounting and piston details: Lug; piston material: stainless steel
  • Hydraulic inlet: 1/8-27 NPT
  • Hose provision: Not included
  • Hardware supplied: mounting hardware
  • Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
  • Manufacturer part number: 140-16445-D
  • Kit function: Rear Brake Kits - Street Performance; rear position
  • Quantity: Sold as a kit.

Fitment & Compatibility

This rear conversion is for the specified GM S10 7-5/8 flange at a 2.75-inch axle offset. Check registration diameter, stud pattern and housing bolts with the axle worksheet. Dynalite hydraulic calipers work with 12.19-inch one-piece hat/rotors and internal mechanical parking shoes. Neither the cable/clevis connection nor hydraulic hoses are supplied. DS-1444 describes assembly and adjustment. The larger rotor and caliper must be compared with the actual wheel profile; a nominal 15-inch wheel is not sufficient evidence of clearance.
