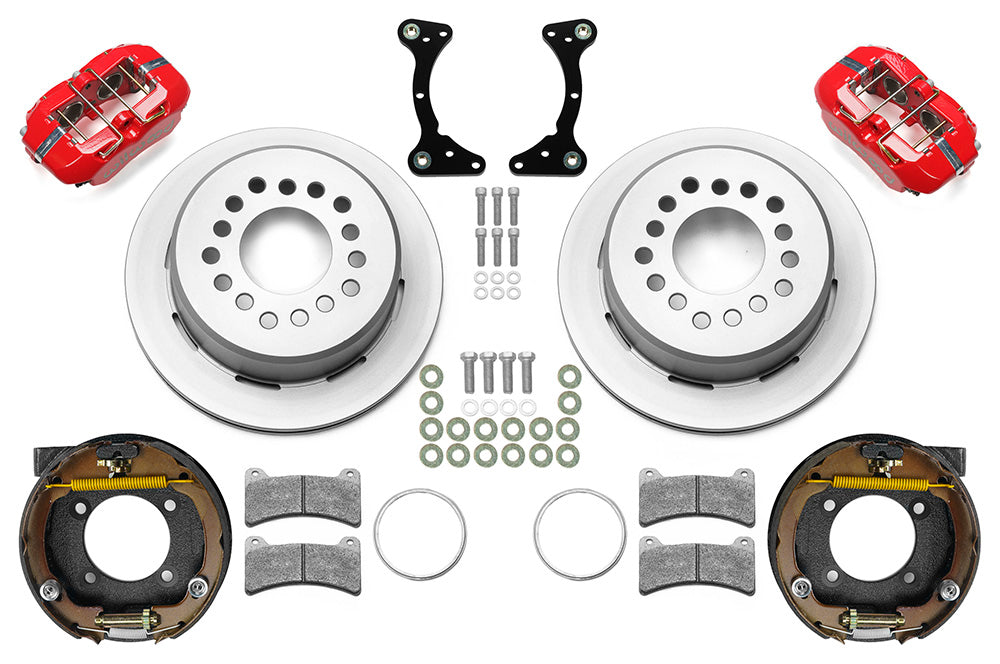

Wilwood red rear brake kit for GM S10 low-profile 2.75-inch offset applications, laid out with one-piece undrilled 11.00-inch rotors, internal parking shoe assemblies, pads, brackets and fasteners

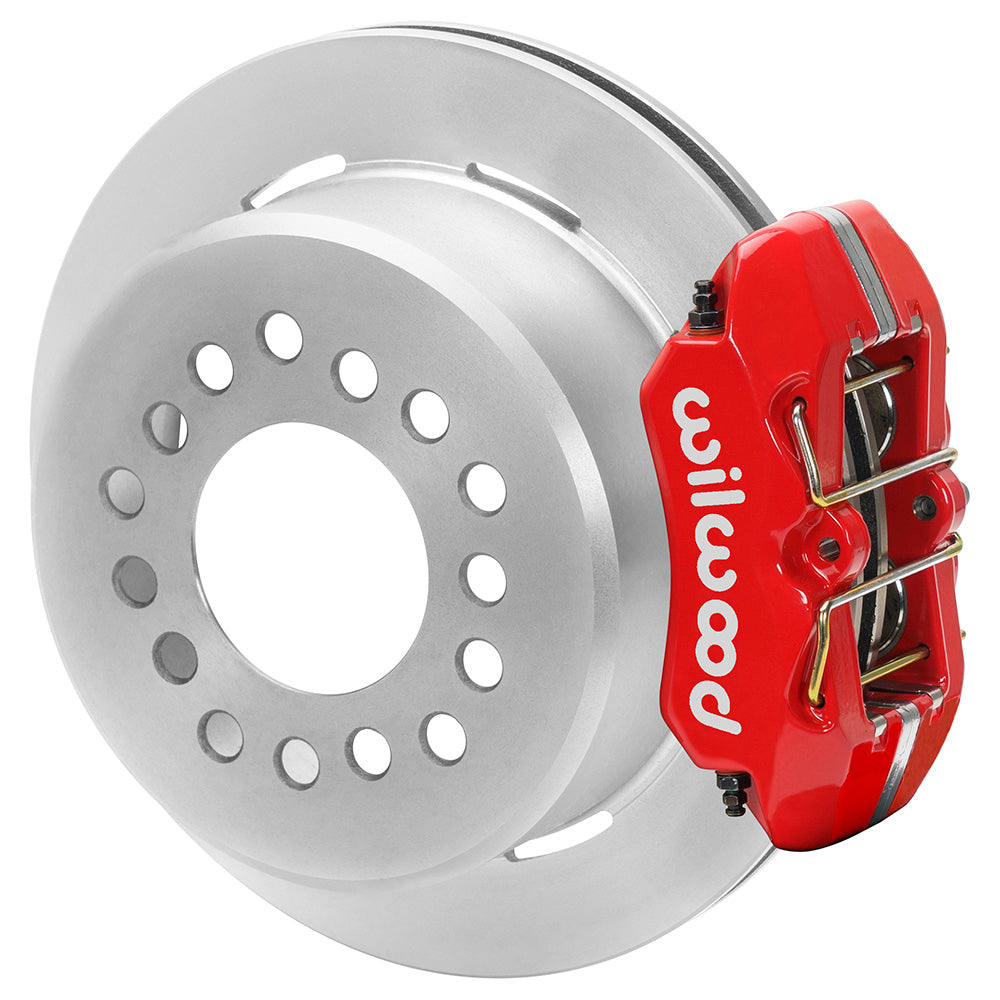

Wilwood red rear caliper beside the assembled 11.00-inch undrilled rotor for the GM S10 low-profile 2.75-inch offset brake conversion
Wilwood red rear brake kit for GM S10 low-profile 2.75-inch offset applications, laid out with one-piece undrilled 11.00-inch rotors, internal parking shoe assemblies, pads, brackets and fasteners
Wilwood red rear caliper beside the assembled 11.00-inch undrilled rotor for the GM S10 low-profile 2.75-inch offset brake conversion

Wilwood Plain 11-Inch Rear Brake and Parking Conversion, Red Low-Profile Calipers for GM S10 7-5/8 2.75-Inch Offset

SKU: 140-16444-R

$1,114.44 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141.
Real people. Real answers.

Shipping policyRefund policy

Product details

Use red low-profile rear calipers and plain vented rotors on the measured GM S10 7-5/8 flange. Check 2.75-inch offset and parking cable compatibility. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use. Calipers, master cylinders, brake rotors, valves, brake lines and fittings form its range; the complete brake system determines which individual components are suitable.

Technical Details

  • Application / axle position: Rear Brake Kits - Street Performance; rear position
  • Rotor specification: 11.00 × 0.81 inches; Iron; vented; Plain Face
  • Supplied service-pad compound: BP-10
  • Wheel-size starting point: 14 in; verify the complete clearance drawing
  • Flexline inclusion: Not included
  • Caliper family, piston count and finish: 4-piston Forged Dynapro Low Profile; Red Powder Coat
  • Hydraulic inlet: 1/8-27 NPT
  • Housing / axle interface: S10 7-5/8; axle offset 2.75 in
  • Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
  • Caliper mounting: Lug; piston material: stainless steel
  • Items outside the kit: spindles, wheel hubs, master cylinder, brake booster
  • Supplied mounting components: mounting hardware
  • Manufacturer part number: 140-16444-R
  • Quantity: Sold as a kit.

Fitment & Compatibility

Measure the actual GM S10 7-5/8 housing flange and 2.75-inch axle offset; the axle name alone does not confirm the bearing, register or stud arrangement. The low-profile Dynapro conversion includes an internal-shoe parking brake and one-piece 11-inch hat/rotors. Parking cables, clevis adapters and hydraulic lines are separate items. DS-1443 shows the required backing-plate fit and shoe adjustment. Verify the wheel against the complete drawing even when its diameter is 14 inches or larger. Match hydraulic capacity and brake balance to the rest of the vehicle.
