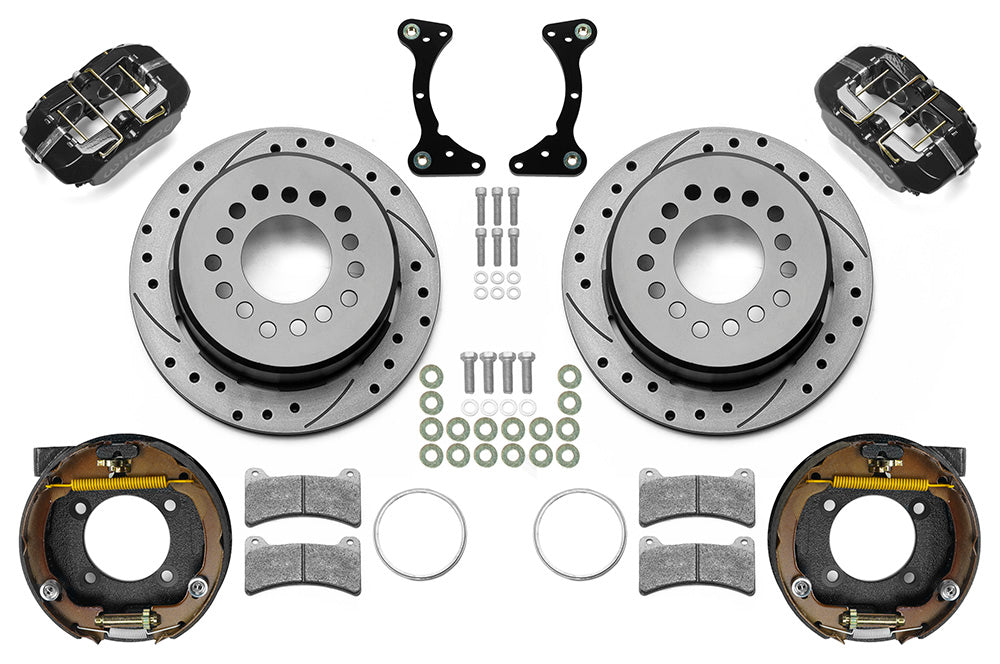

Wilwood black rear brake kit for GM S10 low-profile 2.75-inch offset applications, laid out with one-piece drilled and slotted 11.00-inch rotors, internal parking shoe assemblies, pads, brackets and fasteners

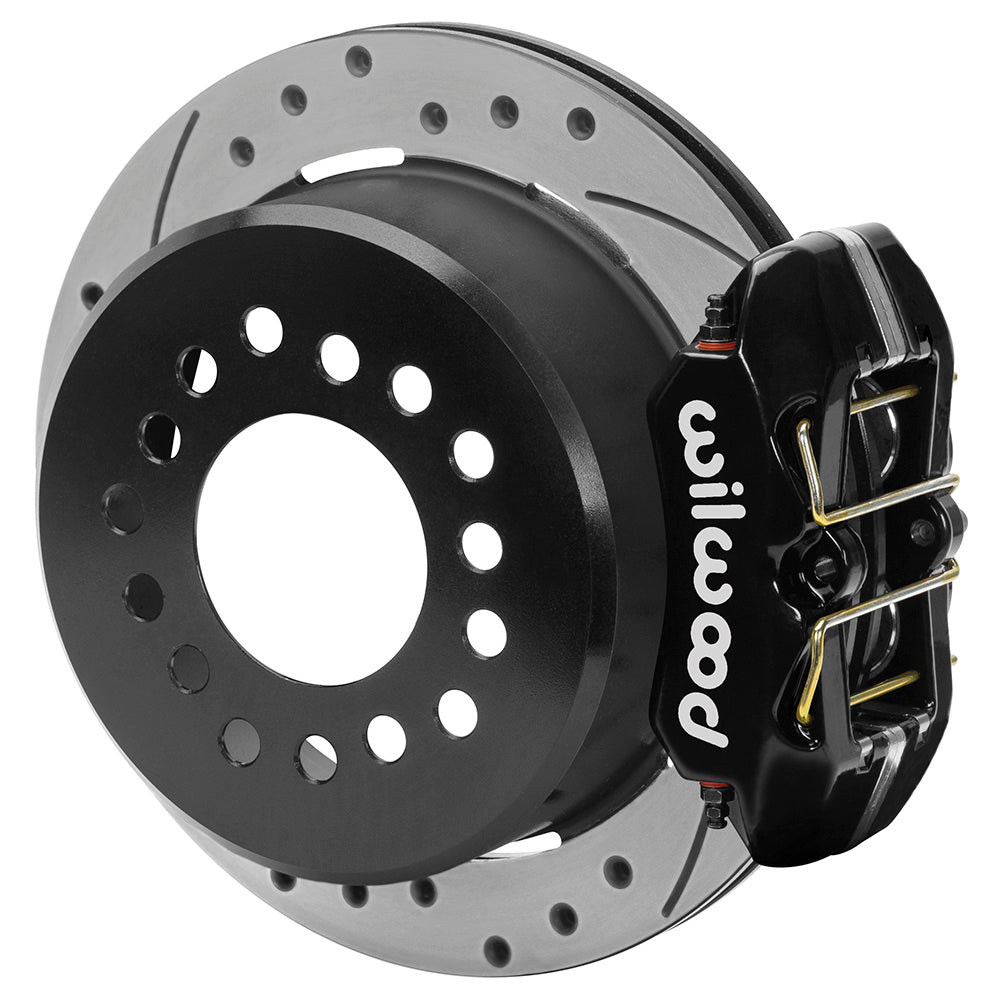

Wilwood black rear caliper beside the assembled 11.00-inch drilled and slotted rotor for the GM S10 low-profile 2.75-inch offset brake conversion
Wilwood black rear brake kit for GM S10 low-profile 2.75-inch offset applications, laid out with one-piece drilled and slotted 11.00-inch rotors, internal parking shoe assemblies, pads, brackets and fasteners
Wilwood black rear caliper beside the assembled 11.00-inch drilled and slotted rotor for the GM S10 low-profile 2.75-inch offset brake conversion

Wilwood GM S10 7-5/8 Rear Brake Conversion, Black Dynapro Calipers and SRP 11-Inch Parking Rotors, 2.75-Inch Offset

SKU: 140-16444-D

$1,256.75 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Black low-profile rear calipers pair with drilled 11-inch rotors for a GM S10 7-5/8 axle. Confirm the 2.75-inch flange offset and cable connection. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use. Calipers, master cylinders, brake rotors, valves, brake lines and fittings form its range; the complete brake system determines which individual components are suitable.

Technical Details

  • Housing / axle interface: S10 7-5/8; axle offset 2.75 in
  • Rotor dimensions, construction and face: 11.00 × 0.81 inches; Iron; vented; SRP Drilled & Slotted
  • Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
  • Nominal wheel diameter reference: 14 in; verify the complete clearance drawing
  • Hydraulic caliper specification: 4-piston Forged Dynapro Low Profile; Black Powder Coat
  • Supplied service-pad compound: BP-10
  • Mounting and piston details: Lug; piston material: stainless steel
  • Hydraulic inlet: 1/8-27 NPT
  • Hose provision: Not included
  • Hardware supplied: mounting hardware
  • Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
  • Manufacturer part number: 140-16444-D
  • Kit function: Rear Brake Kits - Street Performance; rear position
  • Quantity: Sold as a kit.

Fitment & Compatibility

Measure the actual GM S10 7-5/8 housing flange and 2.75-inch axle offset; the axle name alone does not confirm the bearing, register or stud arrangement. The low-profile Dynapro conversion includes an internal-shoe parking brake and one-piece 11-inch hat/rotors. Parking cables, clevis adapters and hydraulic lines are separate items. DS-1443 shows the required backing-plate fit and shoe adjustment. Verify the wheel against the complete drawing even when its diameter is 14 inches or larger. Match hydraulic capacity and brake balance to the rest of the vehicle.

Wilwood product specifications · Installation instructions · Technical bulletin

With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
