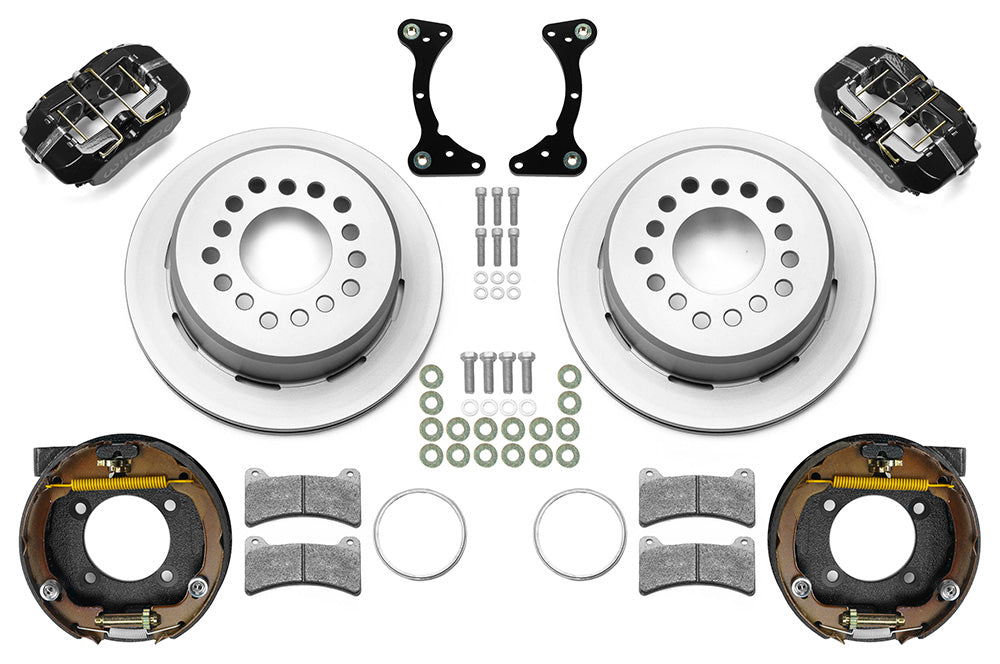

Wilwood black rear brake kit for GM S10 low-profile 2.75-inch offset applications, laid out with one-piece undrilled 11.00-inch rotors, internal parking shoe assemblies, pads, brackets and fasteners

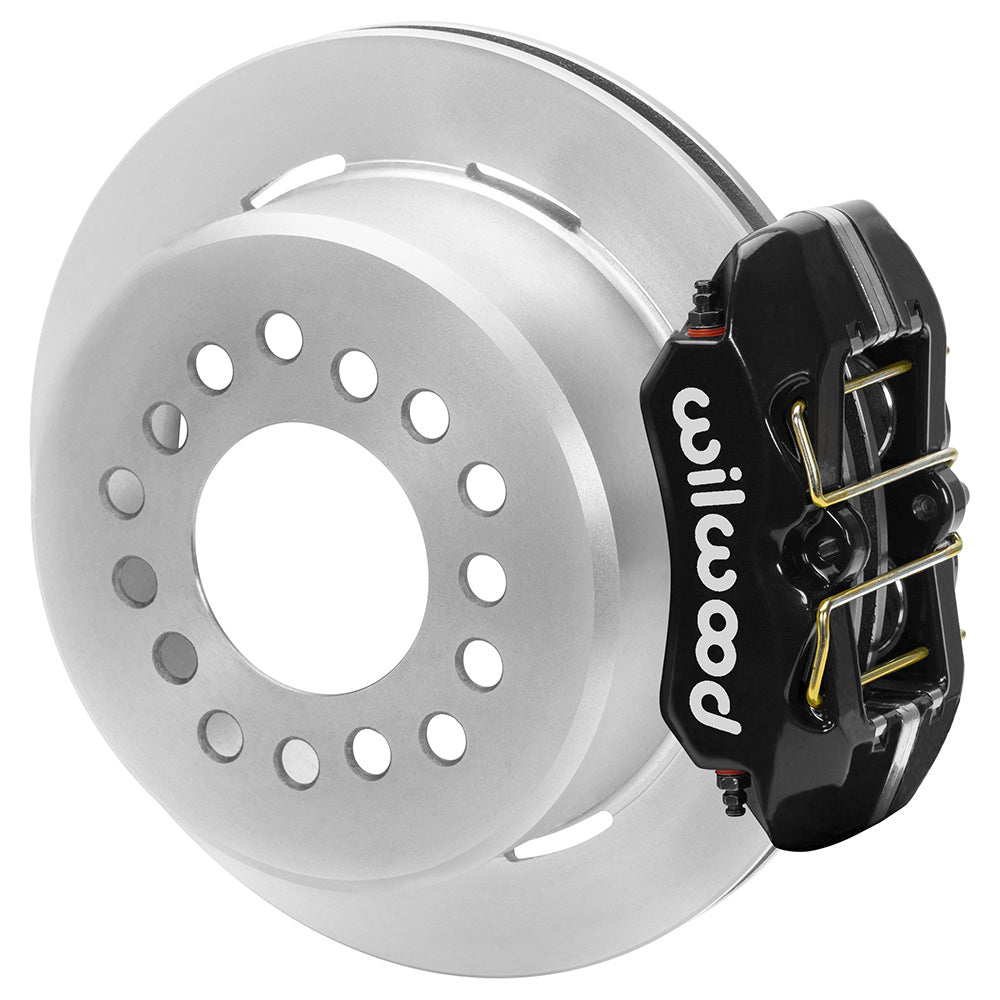

Wilwood black rear caliper beside the assembled 11.00-inch undrilled rotor for the GM S10 low-profile 2.75-inch offset brake conversion
Wilwood black rear brake kit for GM S10 low-profile 2.75-inch offset applications, laid out with one-piece undrilled 11.00-inch rotors, internal parking shoe assemblies, pads, brackets and fasteners
Wilwood black rear caliper beside the assembled 11.00-inch undrilled rotor for the GM S10 low-profile 2.75-inch offset brake conversion

Wilwood Black Dynapro Low-Profile Rear Parking Brake Kit, 11-Inch Plain Rotors for GM S10 7-5/8 Axles with 2.75-Inch Offset

SKU: 140-16444

$1,114.44 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Convert a GM S10 7-5/8 rear axle with black Dynapro low-profile calipers and internal parking shoes. Check the 2.75-inch offset and wheel envelope. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its range serves motorsport, street-performance and specialized applications; each component must match the complete brake system.

Technical Details

  • Manufacturer part number: 140-16444
  • Kit function: Rear Brake Kits - Street Performance; rear position
  • Service calipers: 4-piston Forged Dynapro Low Profile; Black Powder Coat
  • Caliper mounting: Lug; piston material: stainless steel
  • Rotor package: 11.00 × 0.81 inches; Iron; vented; Plain Face
  • Supplied service-pad compound: BP-10
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
  • Housing / axle interface: S10 7-5/8; axle offset 2.75 in
  • Nominal wheel diameter reference: 14 in; verify the complete clearance drawing
  • Hydraulic flexlines: Not included
  • Included installation items: mounting hardware
  • Not supplied: spindles, wheel hubs, master cylinder, brake booster
  • Quantity: Sold as a kit.

Fitment & Compatibility

Measure the actual GM S10 7-5/8 housing flange and 2.75-inch axle offset; the axle name alone does not confirm the bearing, register or stud arrangement. The low-profile Dynapro conversion includes an internal-shoe parking brake and one-piece 11-inch hat/rotors. Parking cables, clevis adapters and hydraulic lines are separate items. DS-1443 shows the required backing-plate fit and shoe adjustment. Verify the wheel against the complete drawing even when its diameter is 14 inches or larger. Match hydraulic capacity and brake balance to the rest of the vehicle.

Wilwood product specifications · Installation instructions · Technical bulletin

With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
