Product details

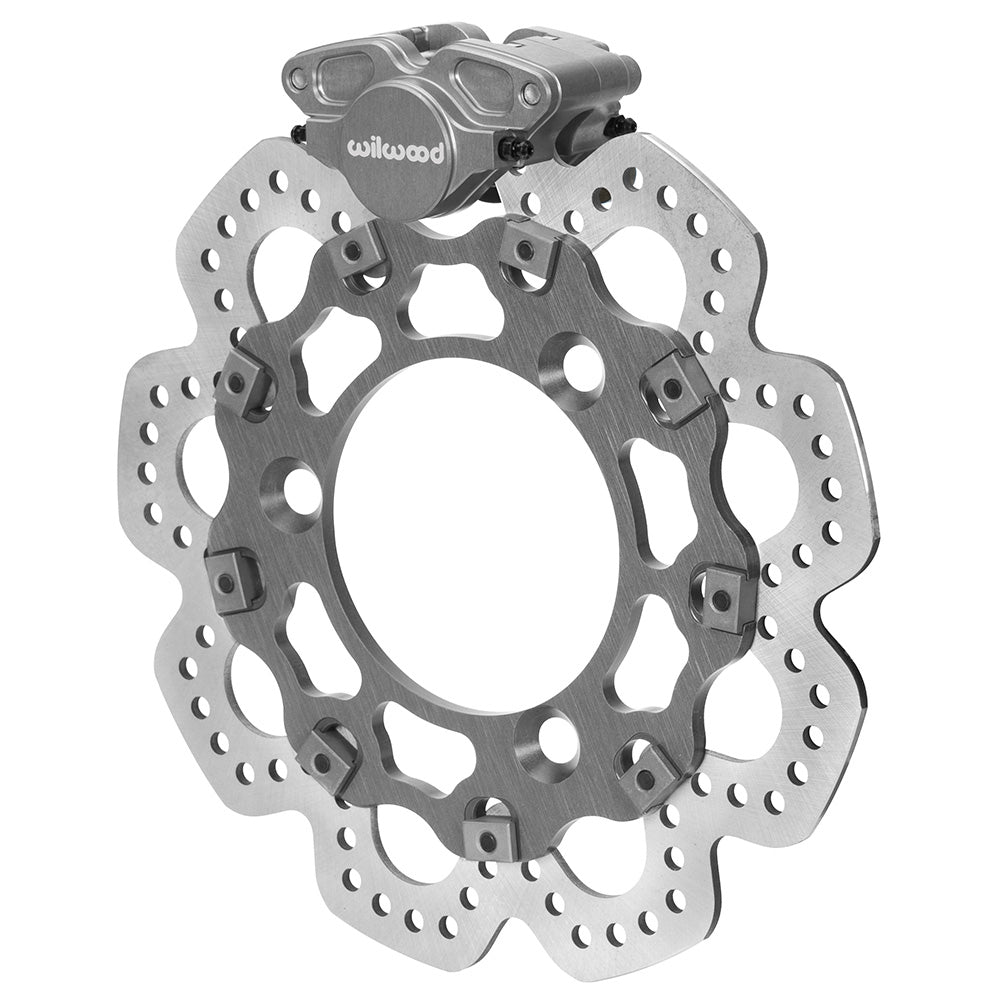

Equip a sprint left-front hub with a scalloped 10.50-inch Super Alloy rotor and GP200 caliper. Race only; match the three-bolt hub and spindle. This single-corner racing package brings together the documented rotor material, pad compound and caliper for the left-front sprint hub. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.
Technical Details

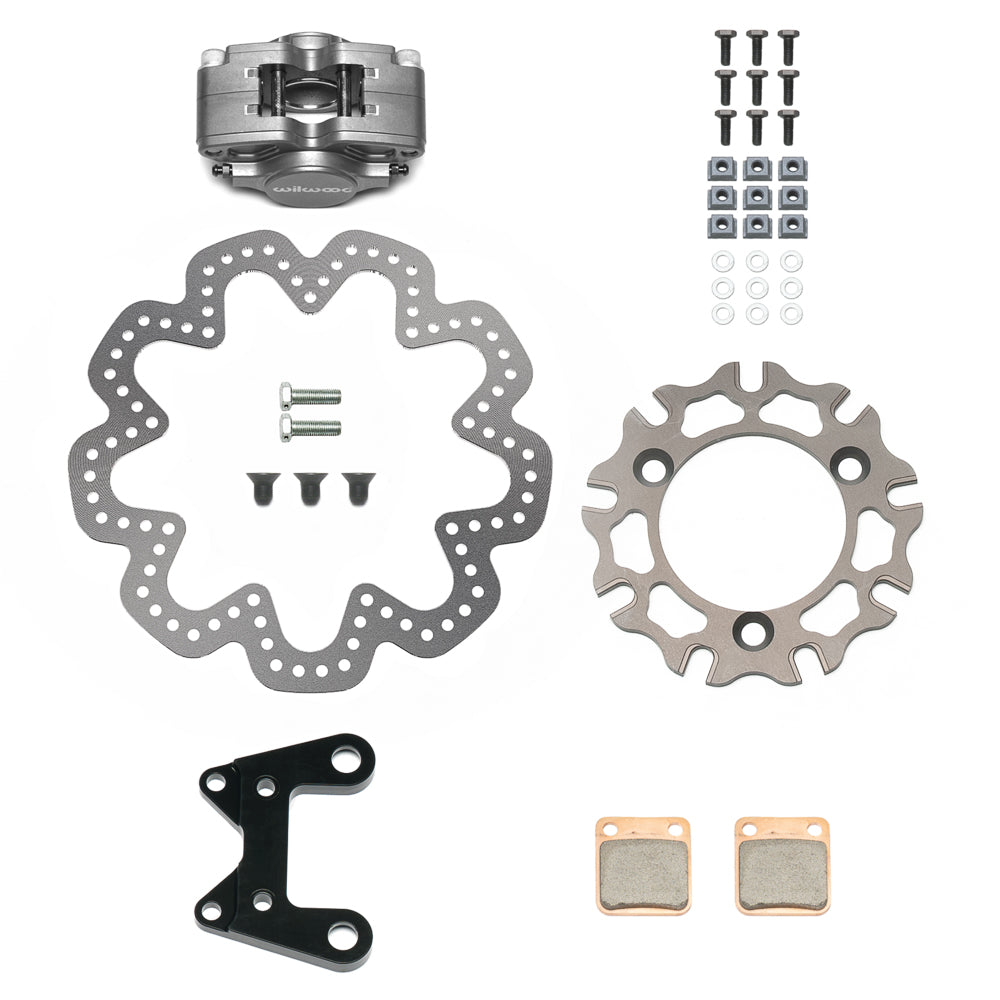

- Manufacturer part number: 140-16431
- Kit function: Front Brake Kits - Race; left front position
- Service calipers: 2-piston GP200; Type III Anodize
- Caliper mounting: Lug; piston material: stainless steel
- Rotor package: 10.50 × 0.16 inches; Super Alloy; solid; Drilled
- Supplied service-pad compound: Purple
- Hydraulic flexlines: Not included
- Included installation items: mounting hardware
- Not supplied: spindles, wheel hubs, master cylinder, brake booster
- Quantity: Sold as a kit.
Fitment & Compatibility
A left-front sprint setup uses the GP200 caliper and 10.50-inch Super Alloy rotor on the matching three-bolt hub. The rotor is scalloped, solid and dynamically mounted using the specified plate and T-nut arrangement; it is not a vented road-car rotor. Check the spindle mounting bosses and provide appropriate spindle fasteners and a hydraulic hose. DS-1442 describes the mounting sequence and safety wiring. Purple pads are specified. This single-corner racing assembly must not be treated as a street-use axle conversion.
Wilwood product specifications · Installation instructions
For a race-brake fitment check backed by more than 20 years of parts experience, send PMB Performance the hub, spindle, wheel and complete brake-system details. Selection depends on the actual competition installation.
