Product details

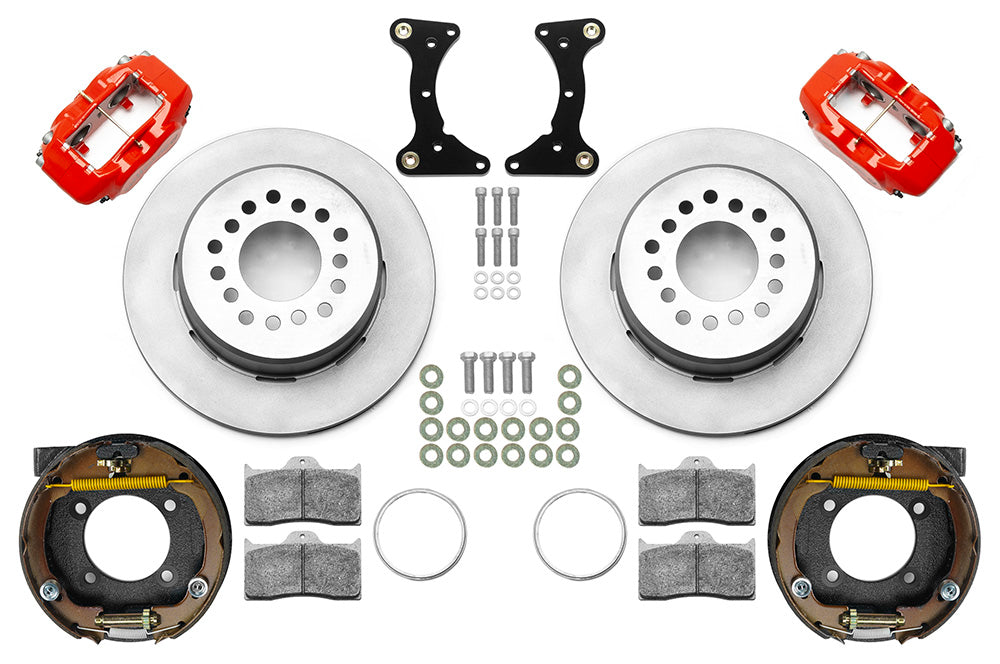

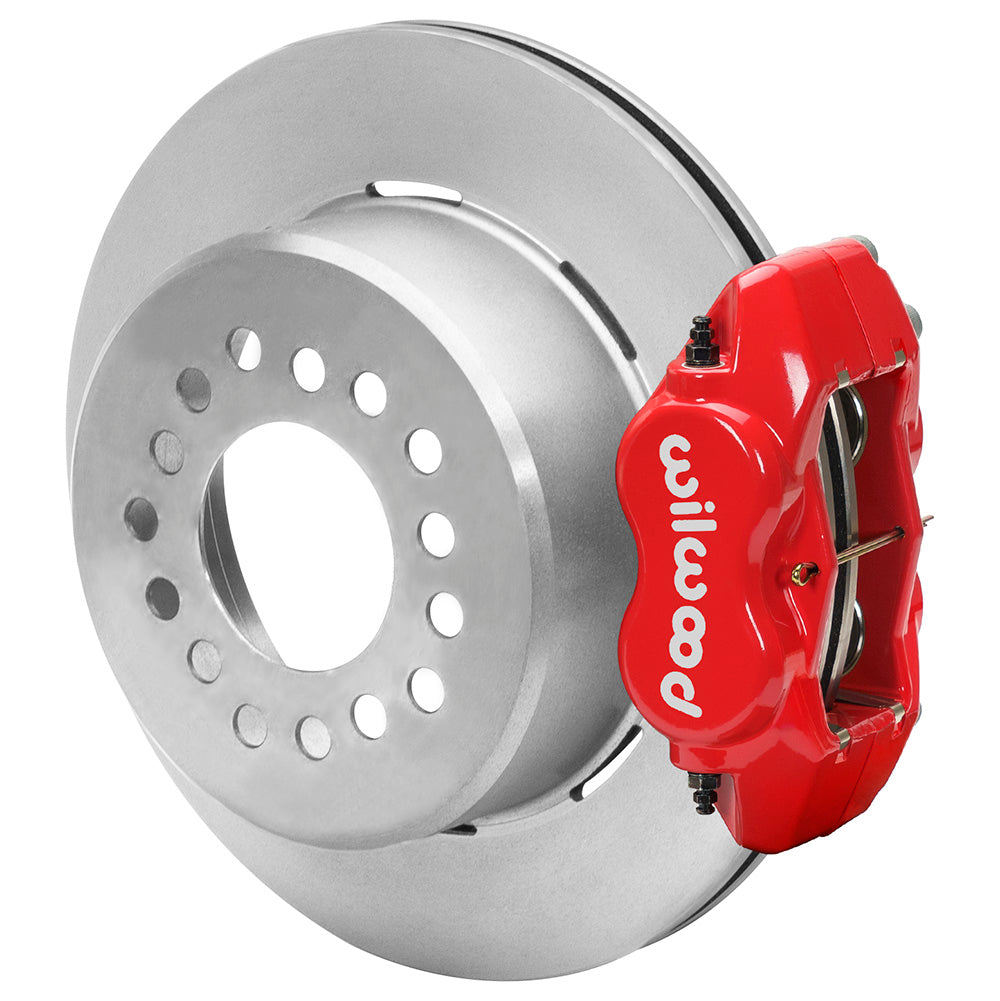

Plain vented rear rotors and red four-piston calipers fit the specified Ford Explorer 8.8 flange. Measure the 2.54-inch offset before selecting cables. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.
Technical Details
- Application / axle position: Rear Brake Kits - Street Performance; rear position
- Rotor specification: 12.19 × 0.81 inches; Iron; vented; Plain Face
- Supplied service-pad compound: BP-10
- Wheel-size starting point: 15 in; verify the complete clearance drawing
- Flexline inclusion: Not included
- Caliper family, piston count and finish: 4-piston Forged Dynalite Internal; Red Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Housing / axle interface: 8.8 Ford Explorer; axle offset 2.54 in
- Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
- Caliper mounting: Lug; piston material: stainless steel
- Items outside the kit: spindles, wheel hubs, master cylinder, brake booster
- Supplied mounting components: mounting hardware
- Manufacturer part number: 140-16407-R
- Quantity: Sold as a kit.
Fitment & Compatibility
Match the Ford Explorer 8.8 housing pattern, center registration and measured 2.54-inch axle offset. The 12.19-inch vented rotor incorporates the drum surface used by the internal parking shoes. This is not an MC4 or electric parking kit. Cable hardware, adapters and hydraulic flexlines are not included; choose them for the completed axle installation. Follow DS-1441 to seat the backing plate, align the Dynalite and adjust the shoe clearance. Check the wheel drawing for the actual wheel rather than relying solely on its 15-inch nominal diameter.
Wilwood product specifications · Installation instructions · Technical bulletin
With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
