Product details

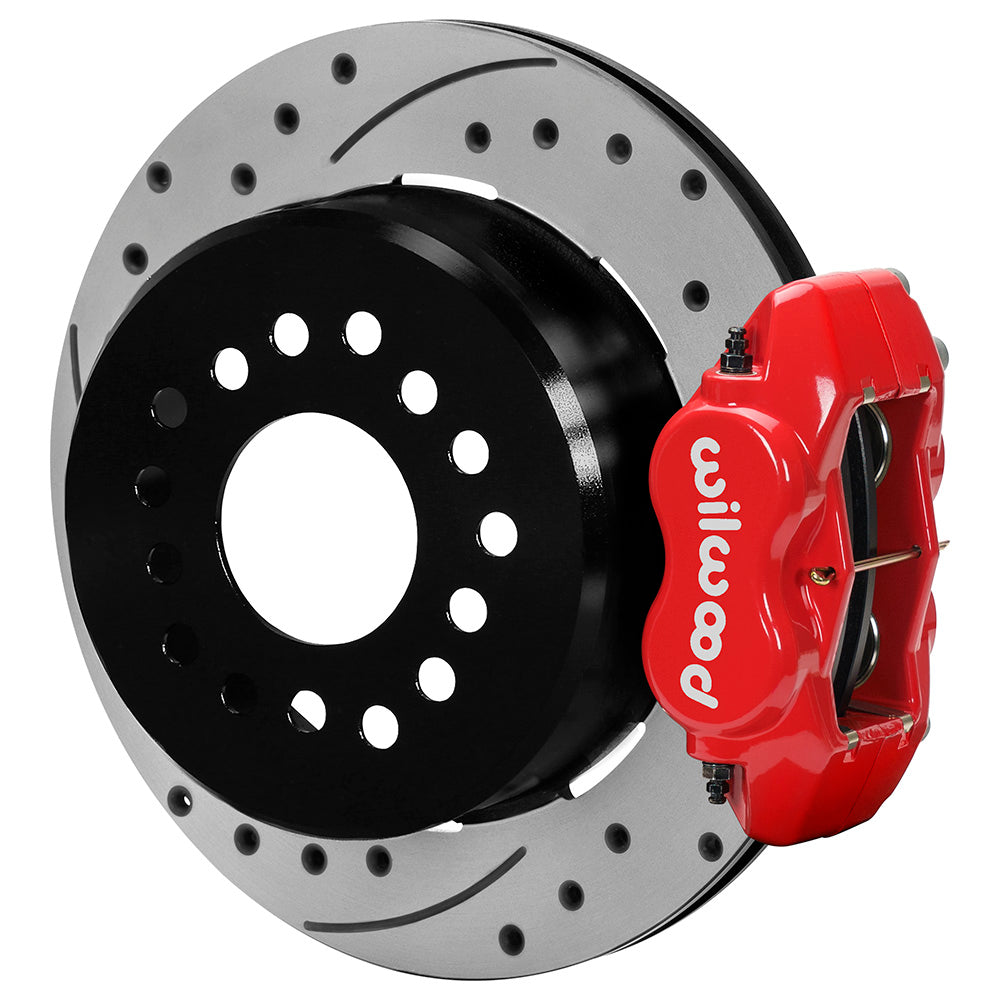

A red Dynalite rear conversion pairs SRP rotors with a drum parking brake for Ford Explorer 8.8 axles. Confirm 2.54-inch offset and the hub register. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.
Technical Details
- Service-brake configuration: 4-piston Forged Dynalite Internal; Red Powder Coat
- Brake pad selection supplied: BP-10
- Caliper fluid connection: 1/8-27 NPT
- Caliper mounting: Lug; piston material: stainless steel
- Rotor assembly dimensions and material: 12.19 × 0.81 inches; Iron; vented; SRP Drilled & Slotted
- Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
- Required rear-axle interface: 8.8 Ford Explorer; axle offset 2.54 in
- Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm

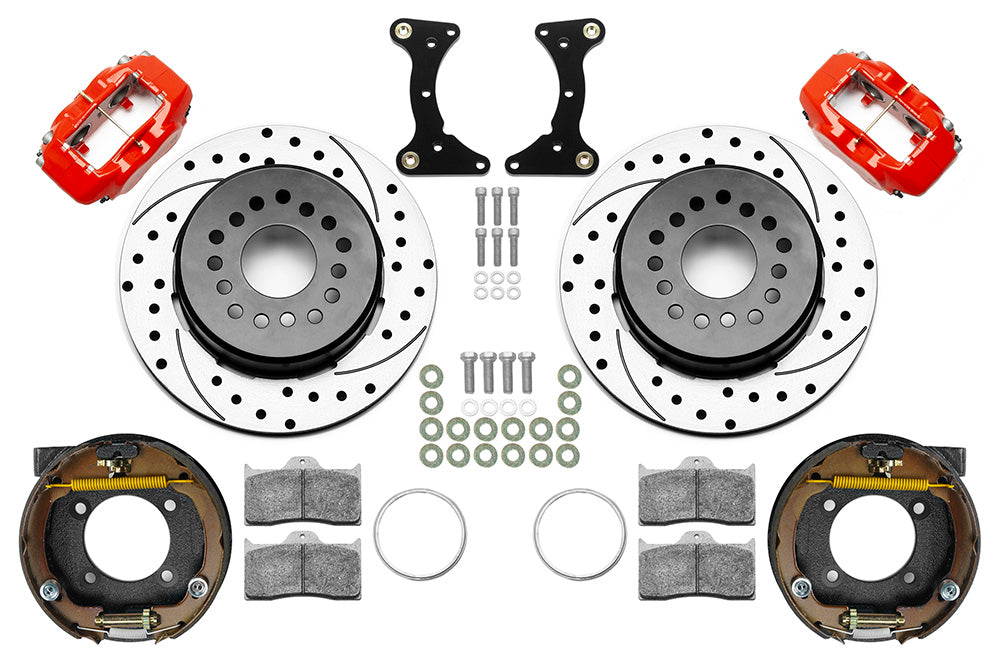

- Included installation items: mounting hardware
- Hydraulic flexlines: Not included
- Quantity: Sold as a kit.
- Separate components required: spindles, wheel hubs, master cylinder, brake booster
- Manufacturer part number: 140-16407-DR
- Kit function: Rear Brake Kits - Street Performance; rear position
Fitment & Compatibility
Match the Ford Explorer 8.8 housing pattern, center registration and measured 2.54-inch axle offset. The 12.19-inch vented rotor incorporates the drum surface used by the internal parking shoes. This is not an MC4 or electric parking kit. Cable hardware, adapters and hydraulic flexlines are not included; choose them for the completed axle installation. Follow DS-1441 to seat the backing plate, align the Dynalite and adjust the shoe clearance. Check the wheel drawing for the actual wheel rather than relying solely on its 15-inch nominal diameter.
Wilwood product specifications · Installation instructions · Technical bulletin
With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
