Product details

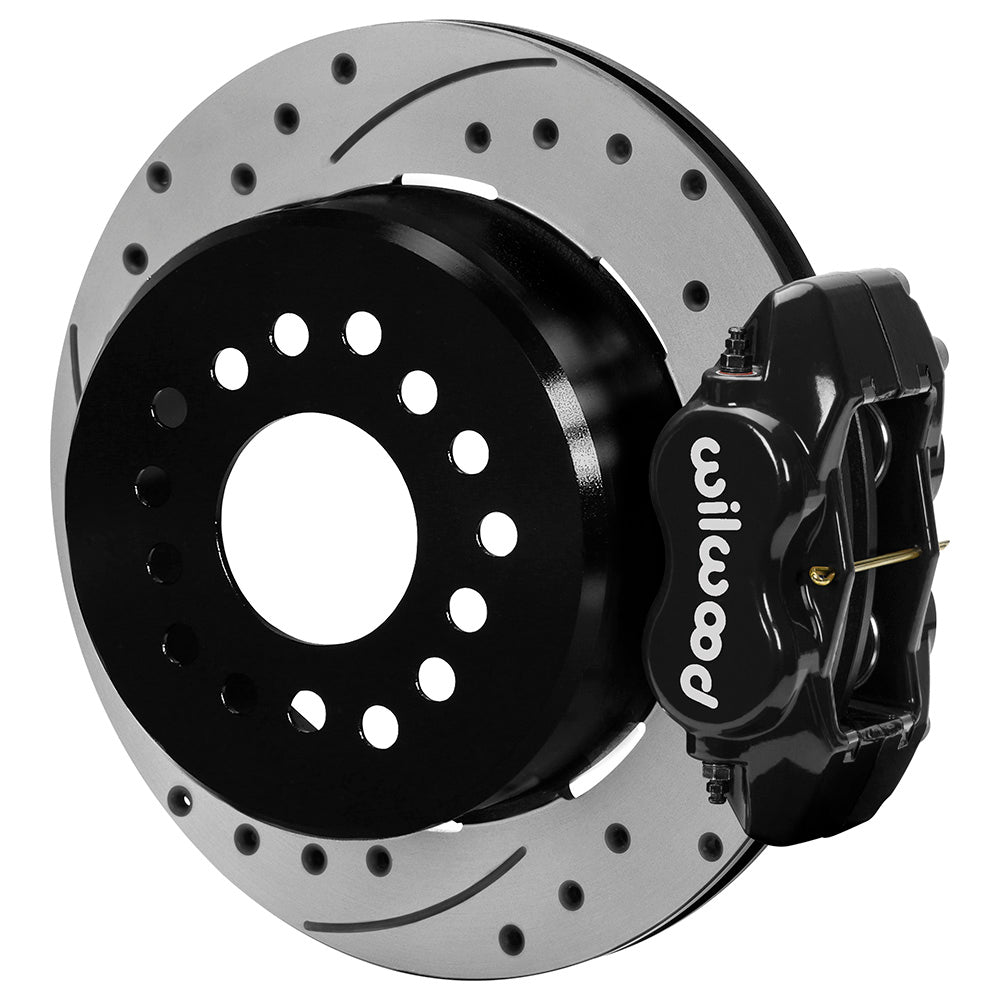

Fit drilled and slotted rear rotors to the measured Ford Explorer 8.8 flange with black Dynalite calipers. Check 2.54-inch offset and cable routing. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.
Technical Details
- Housing / axle interface: 8.8 Ford Explorer; axle offset 2.54 in
- Rotor dimensions, construction and face: 12.19 × 0.81 inches; Iron; vented; SRP Drilled & Slotted
- Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
- Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
- Hydraulic caliper specification: 4-piston Forged Dynalite Internal; Black Powder Coat
- Supplied service-pad compound: BP-10
- Mounting and piston details: Lug; piston material: stainless steel
- Hydraulic inlet: 1/8-27 NPT
- Hose provision: Not included
- Hardware supplied: mounting hardware
- Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
- Manufacturer part number: 140-16407-D
- Kit function: Rear Brake Kits - Street Performance; rear position
- Quantity: Sold as a kit.
Fitment & Compatibility

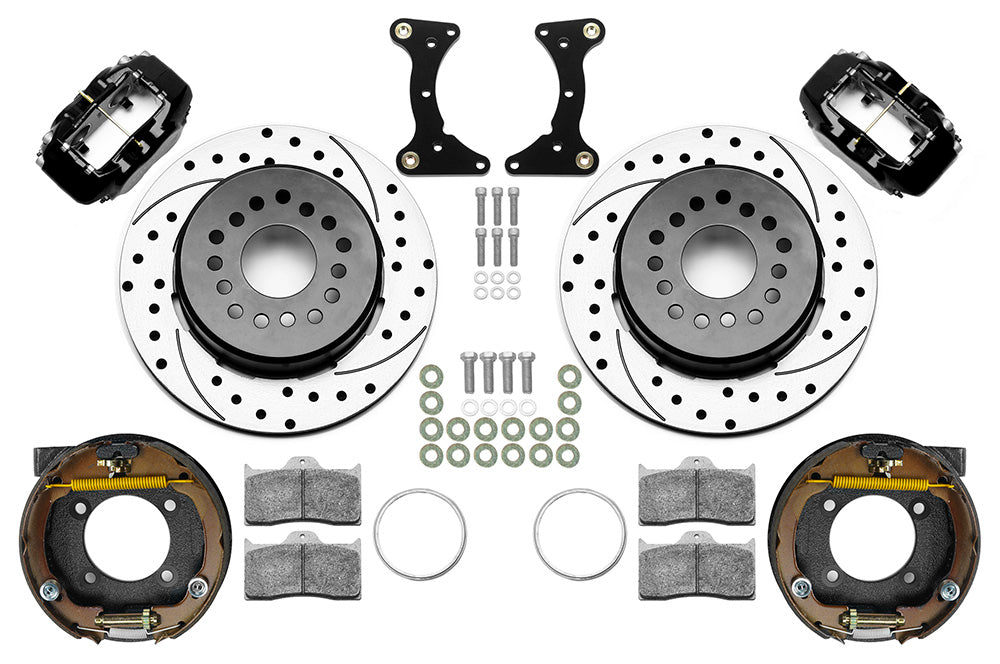

Match the Ford Explorer 8.8 housing pattern, center registration and measured 2.54-inch axle offset. The 12.19-inch vented rotor incorporates the drum surface used by the internal parking shoes. This is not an MC4 or electric parking kit. Cable hardware, adapters and hydraulic flexlines are not included; choose them for the completed axle installation. Follow DS-1441 to seat the backing plate, align the Dynalite and adjust the shoe clearance. Check the wheel drawing for the actual wheel rather than relying solely on its 15-inch nominal diameter.
Wilwood product specifications · Installation instructions · Technical bulletin
With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
