Product details

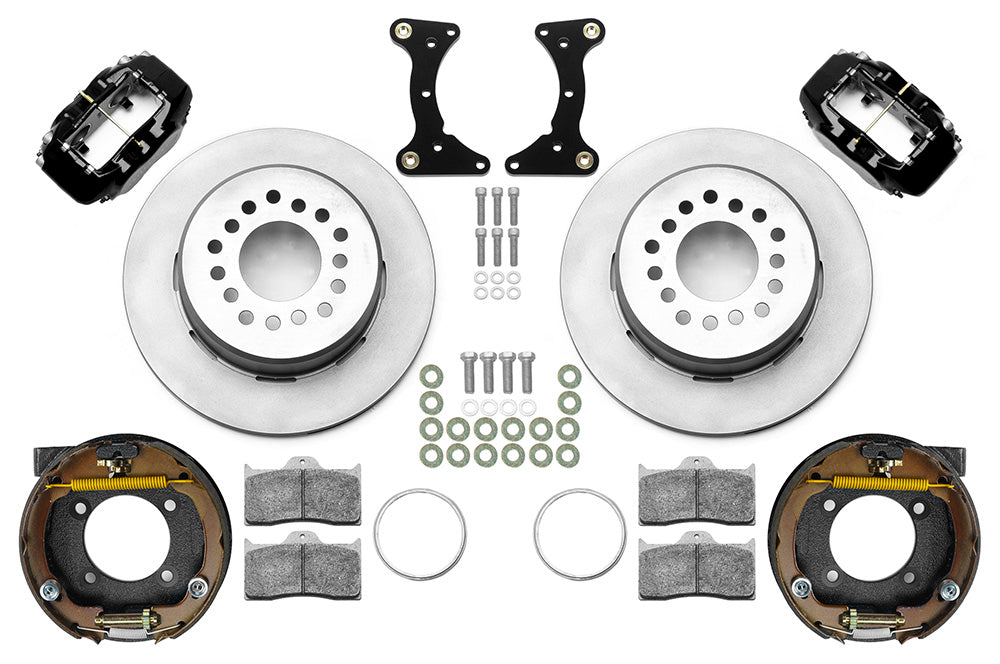

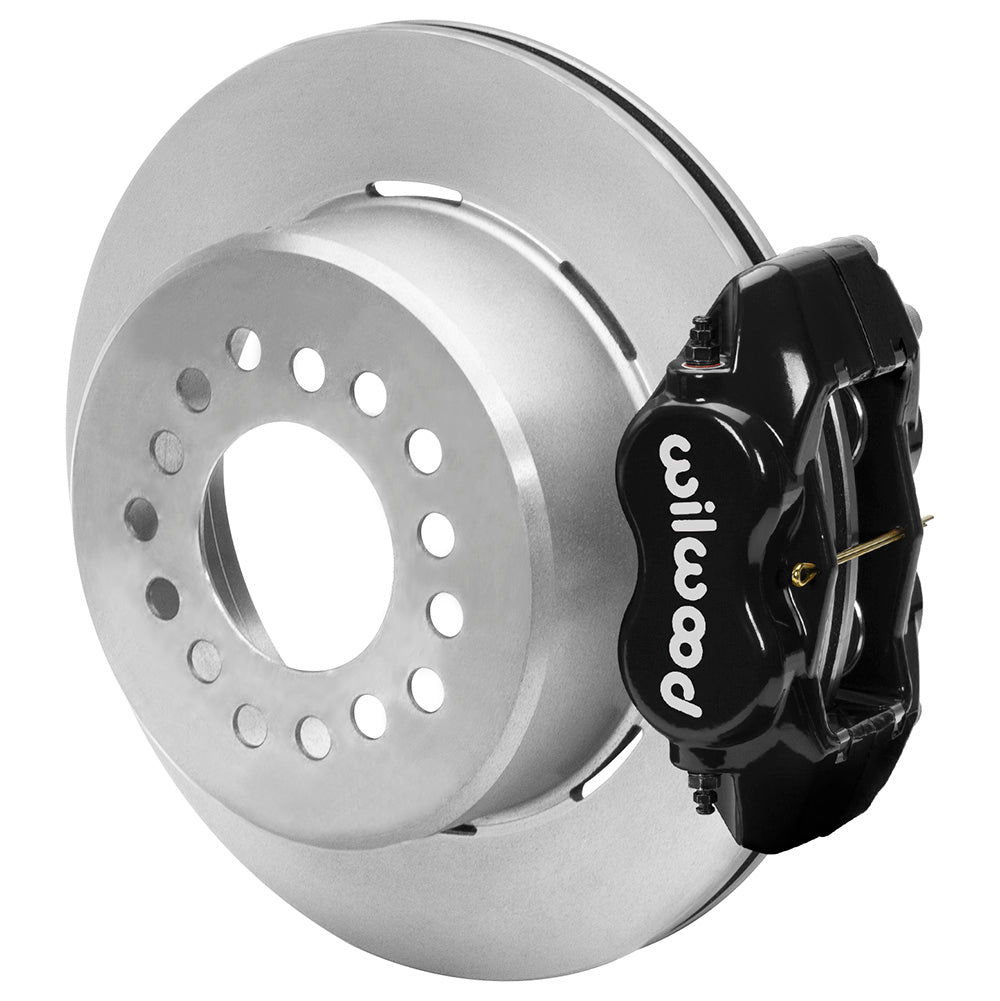

Black Dynalite service calipers combine with internal parking shoes on a Ford Explorer 8.8 rear axle. Verify the 2.54-inch offset and rotor clearance. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.
Technical Details
- Manufacturer part number: 140-16407
- Kit function: Rear Brake Kits - Street Performance; rear position
- Service calipers: 4-piston Forged Dynalite Internal; Black Powder Coat
- Caliper mounting: Lug; piston material: stainless steel
- Rotor package: 12.19 × 0.81 inches; Iron; vented; Plain Face
- Supplied service-pad compound: BP-10
- Hydraulic inlet: 1/8-27 NPT
- Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
- Housing / axle interface: 8.8 Ford Explorer; axle offset 2.54 in
- Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
- Hydraulic flexlines: Not included
- Included installation items: mounting hardware
- Not supplied: spindles, wheel hubs, master cylinder, brake booster
- Quantity: Sold as a kit.
Fitment & Compatibility
Match the Ford Explorer 8.8 housing pattern, center registration and measured 2.54-inch axle offset. The 12.19-inch vented rotor incorporates the drum surface used by the internal parking shoes. This is not an MC4 or electric parking kit. Cable hardware, adapters and hydraulic flexlines are not included; choose them for the completed axle installation. Follow DS-1441 to seat the backing plate, align the Dynalite and adjust the shoe clearance. Check the wheel drawing for the actual wheel rather than relying solely on its 15-inch nominal diameter.
Wilwood product specifications · Installation instructions · Technical bulletin
With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
