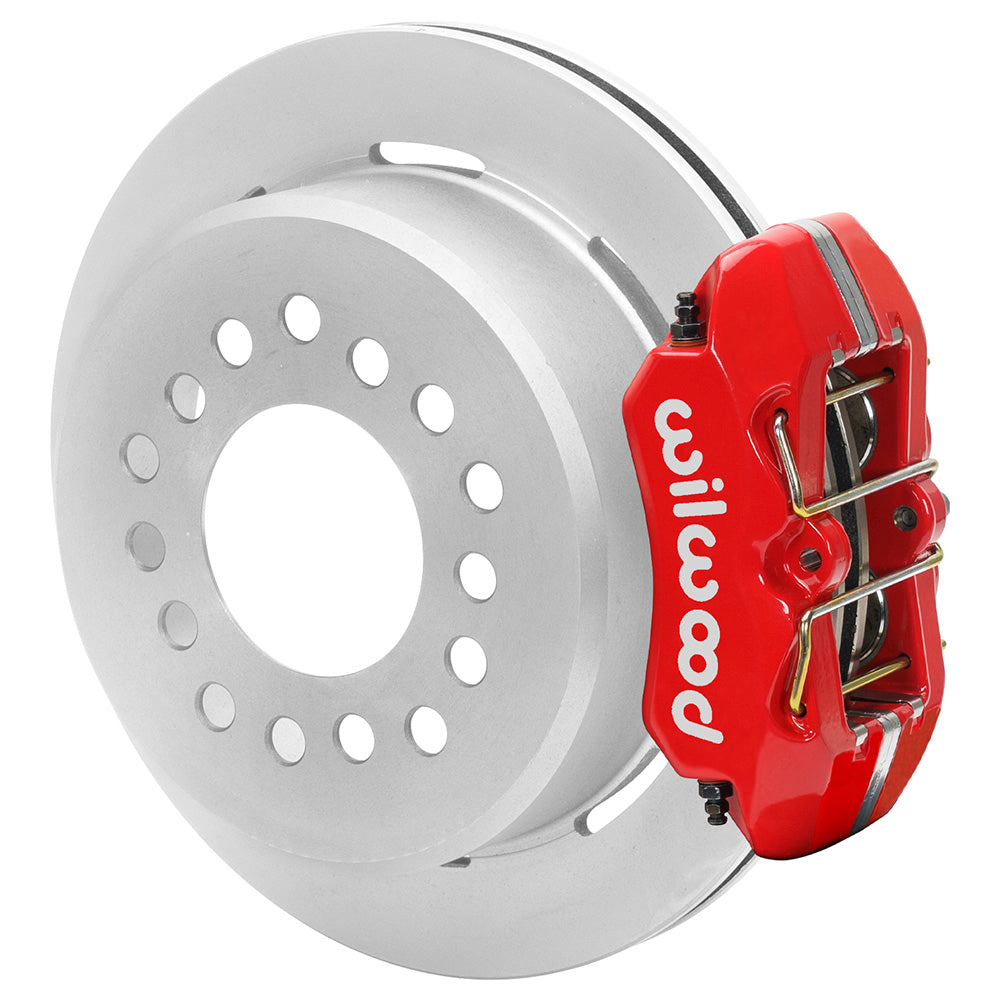

Wilwood 11-Inch Plain-Rotor Rear Parking Brake Conversion for Ford Explorer 8.8, Red Dynapro Calipers, 2.54-Inch Axle Offset

Choose plain 11-inch rear rotors and red Dynapro calipers for the specified Ford Explorer 8.8 axle. Match the 2.54-inch offset and wheel profile. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Application / axle position: Rear Brake Kits - Street Performance; rear position
• Rotor specification: 11.00 × 0.81 inches; Iron; vented; Plain Face
• Supplied service-pad compound: BP-10
• Wheel-size starting point: 14 in; verify the complete clearance drawing
• Flexline inclusion: Not included
• Caliper family, piston count and finish: 4-piston Forged Dynapro Low Profile; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Housing / axle interface: 8.8 Ford Explorer; axle offset 2.54 in
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
• Caliper mounting: Lug; piston material: stainless steel
• Items outside the kit: spindles, wheel hubs, master cylinder, brake booster

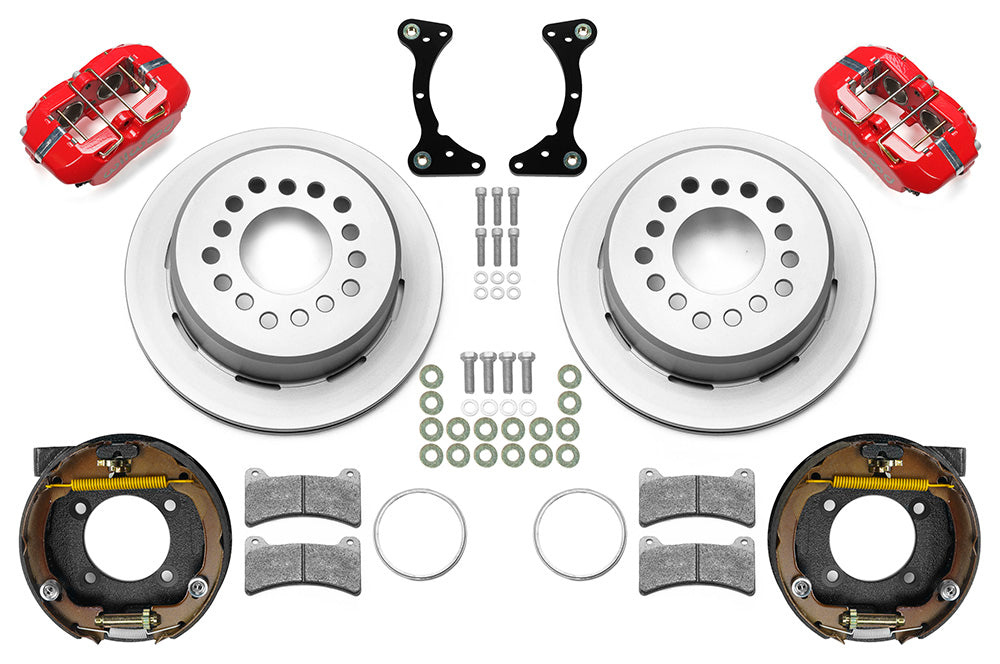

• Supplied mounting components: mounting hardware
• Manufacturer part number: 140-16406-R
• Quantity: Sold as a kit.

Fitment & Compatibility

This kit is defined by the Ford Explorer 8.8 housing flange and 2.54-inch axle offset, including its register, bolt locations and rotor relationship. It is an axle-interface conversion rather than a blanket Explorer model-year fit claim. Internal shoes provide parking inside the one-piece hat/rotor assembly. DS-1425 calls for separate cable and clevis connections; a universal cable may need adaptation. Supply the hydraulic lines separately and check every part of the low-profile caliper envelope. Some 14-inch wheels may clear only after checking the drawing.

Wilwood product specifications · Installation instructions · Technical bulletin

With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
