Product details
Ford Explorer 8.8 rear axle conversion uses black low-profile Dynapro calipers and internal parking shoes. Measure the required 2.54-inch offset. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.
Technical Details
- Manufacturer part number: 140-16406
- Kit function: Rear Brake Kits - Street Performance; rear position

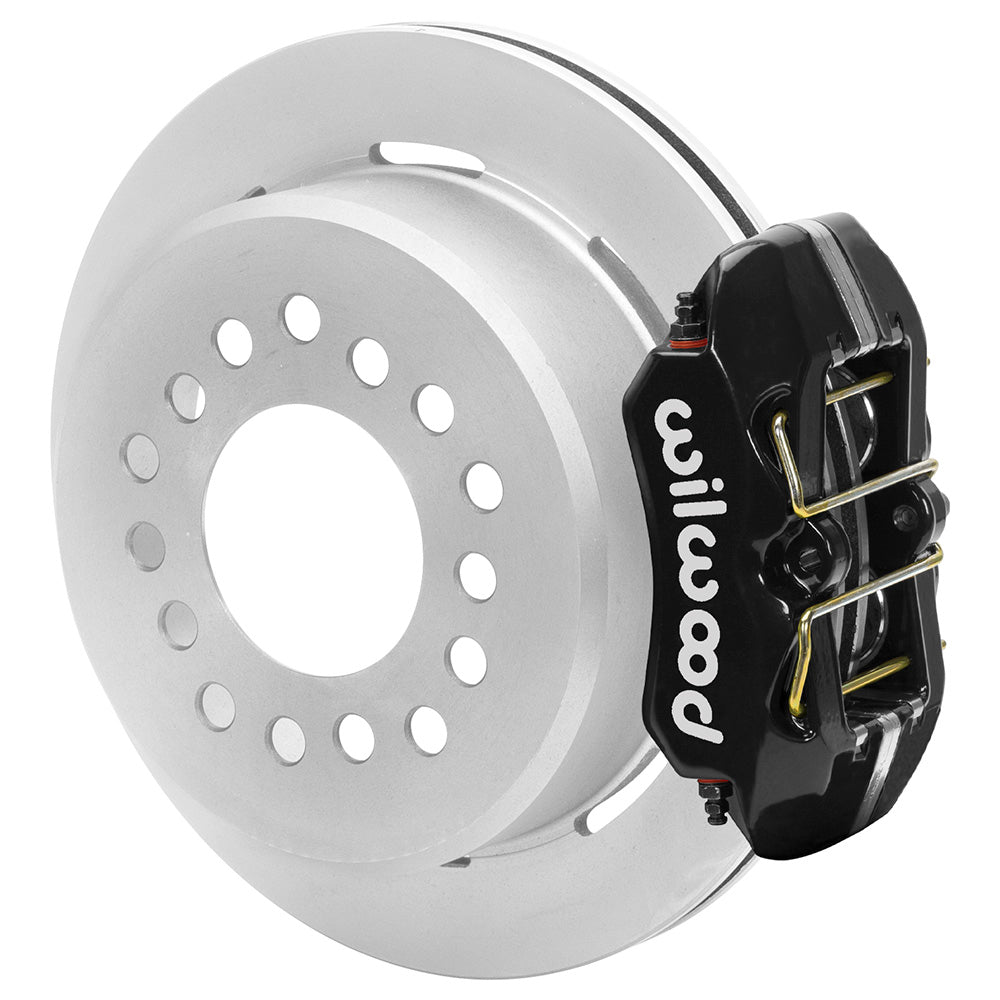

- Service calipers: 4-piston Forged Dynapro Low Profile; Black Powder Coat
- Caliper mounting: Lug; piston material: stainless steel
- Rotor package: 11.00 × 0.81 inches; Iron; vented; Plain Face
- Supplied service-pad compound: BP-10
- Hydraulic inlet: 1/8-27 NPT
- Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
- Housing / axle interface: 8.8 Ford Explorer; axle offset 2.54 in
- Nominal wheel diameter reference: 14 in; verify the complete clearance drawing
- Hydraulic flexlines: Not included

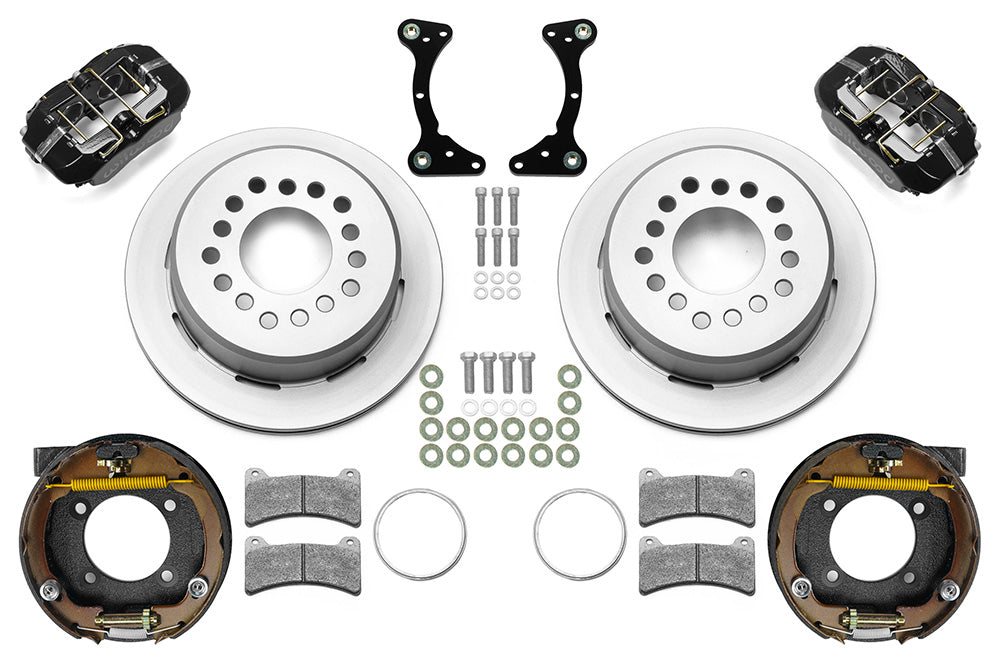

- Included installation items: mounting hardware
- Not supplied: spindles, wheel hubs, master cylinder, brake booster
- Quantity: Sold as a kit.
Fitment & Compatibility
This kit is defined by the Ford Explorer 8.8 housing flange and 2.54-inch axle offset, including its register, bolt locations and rotor relationship. It is an axle-interface conversion rather than a blanket Explorer model-year fit claim. Internal shoes provide parking inside the one-piece hat/rotor assembly. DS-1425 calls for separate cable and clevis connections; a universal cable may need adaptation. Supply the hydraulic lines separately and check every part of the low-profile caliper envelope. Some 14-inch wheels may clear only after checking the drawing.
Wilwood product specifications · Installation instructions · Technical bulletin
With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
