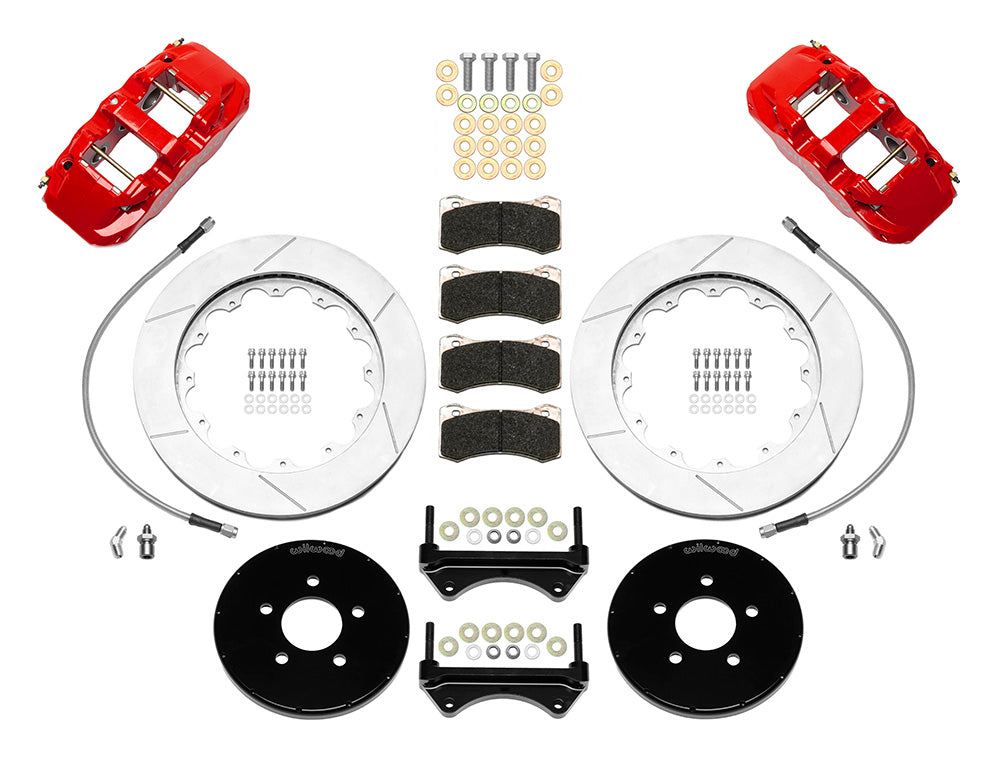

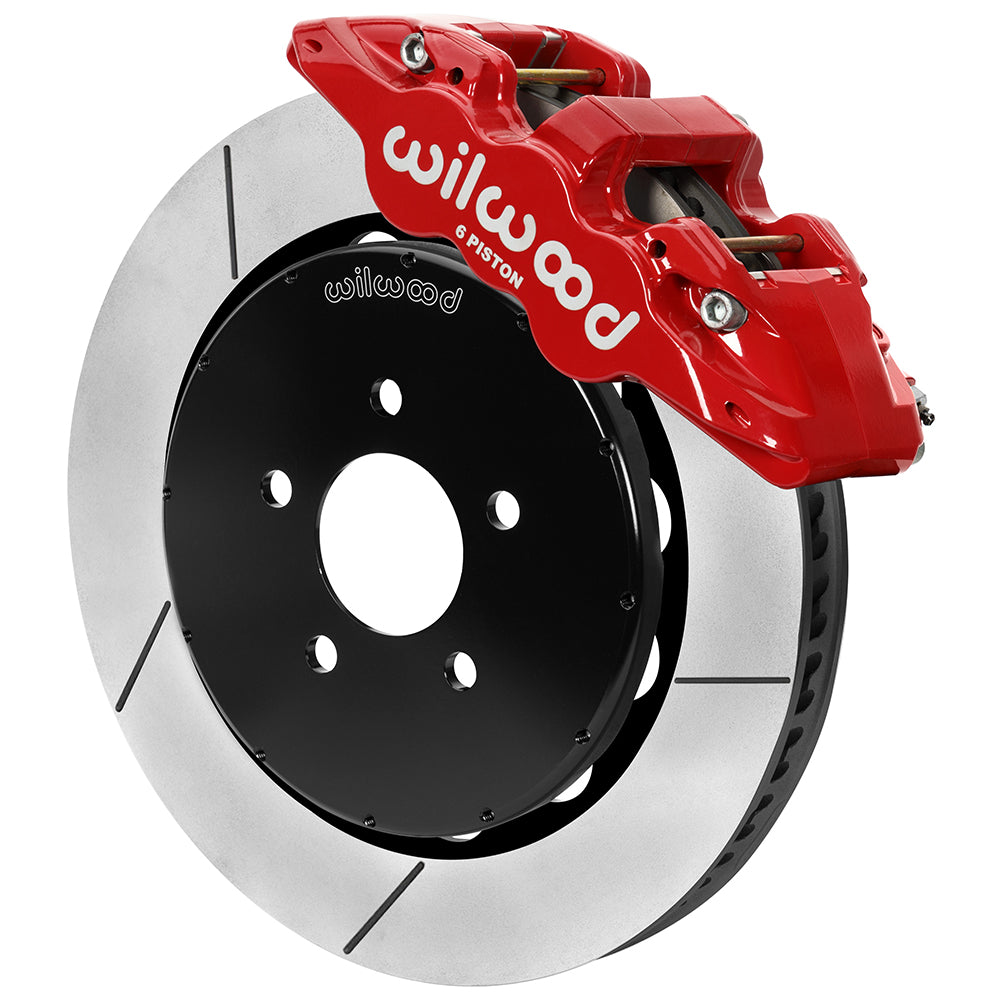

Wilwood Red AERO6 Front Brake Conversion for Ford Mustang (1994–2004), GT Slotted 14-Inch Rotors with Flexlines

Pair the Ford Mustang's listed five-lug front hubs with red AERO6 calipers and two-piece GT rotors. Check wheel clearance and specific trim notes. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Application / axle position: Front Brake Kits - Street Performance; front position
• Rotor specification: 14.00 × 1.25 inches; Spec-37 Iron; vented; GT Slotted
• Supplied service-pad compound: BP-20
• Wheel-size starting point: 18 in; verify the complete clearance drawing
• Flexline inclusion: Included; 220-6458 (18.00 in)
• Caliper family, piston count and finish: 6-piston AERO6; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm
• Caliper mounting: Radial; piston material: stainless steel
• Items outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Supplied mounting components: mounting hardware
• Manufacturer part number: 140-16403-R
• Quantity: Sold as a kit.

Fitment & Compatibility

Retain the specified five-lug front hubs and factory disc spindles on the listed 1994–2004 Mustang. Check Base, GT, SVT Cobra and Mach I rows, including the chart restrictions, before choosing the brake package. The two-piece 14-inch rotor assembly and radial AERO6 calipers require wheel verification using DS-1422. Braided 18-inch flexlines are included and must be checked for correct fitting size and routing. No hub, spindle, master cylinder or booster is supplied. Inspect the entire front-to-rear brake balance after conversion.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
