Wilwood Ford Mustang Front Brake Kit (1994–2004), Red Six-Piston Calipers, SRP Rotors and Braided Lines

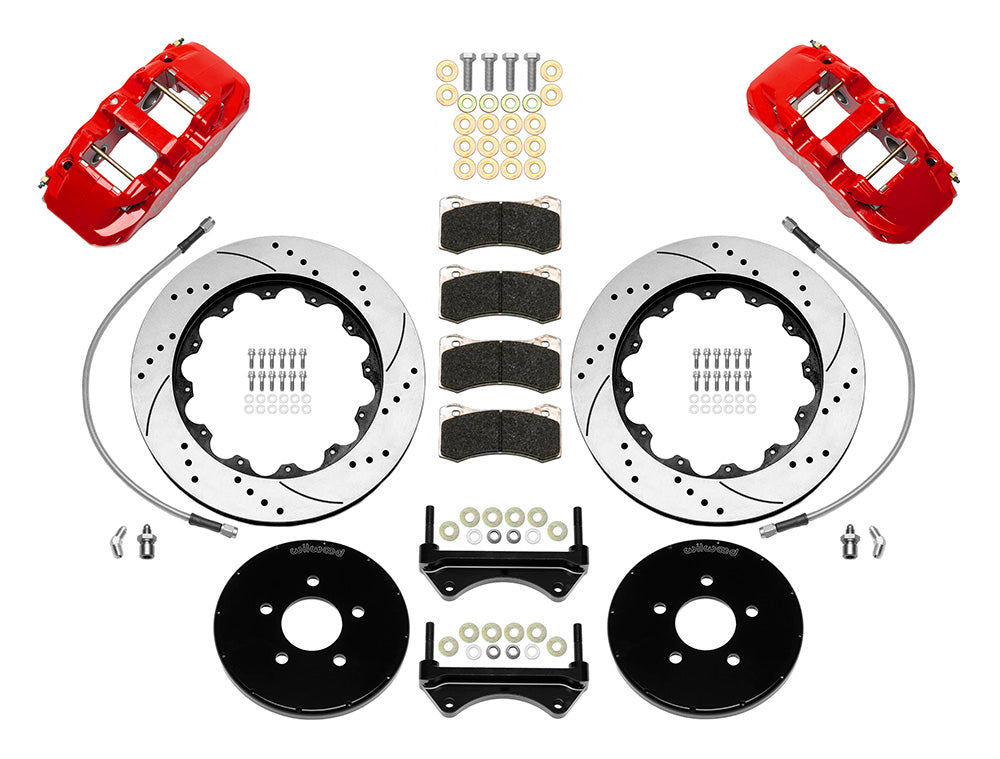

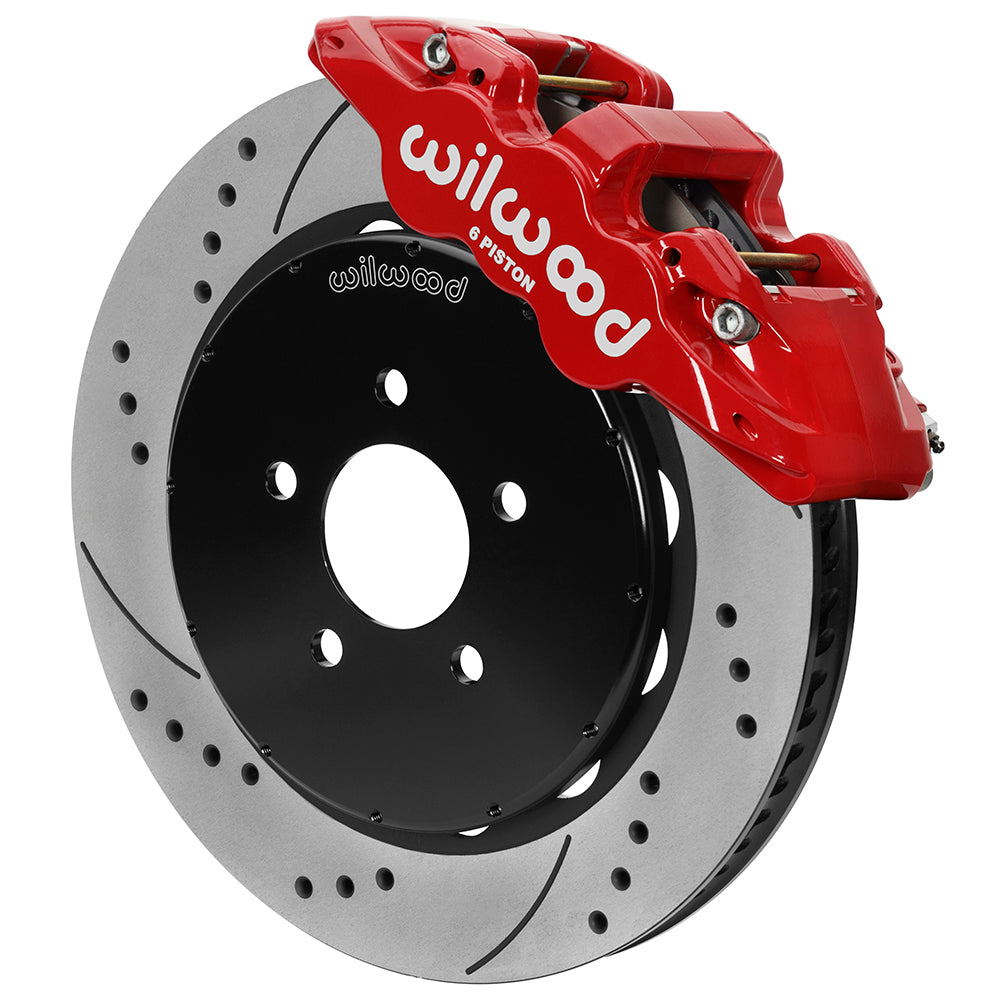

Red AERO6 front calipers clamp 14-inch SRP rotors for listed Ford Mustang applications. Braided hoses are included; check the installed brake package. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Service-brake configuration: 6-piston AERO6; Red Powder Coat
• Brake pad selection supplied: BP-10
• Caliper fluid connection: 1/8-27 NPT
• Caliper mounting: Radial; piston material: stainless steel
• Rotor assembly dimensions and material: 14.00 × 1.25 inches; Spec-37 Iron; vented; SRP Drilled & Slotted
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm
• Included installation items: mounting hardware
• Hydraulic flexlines: Included; 220-6458 (18.00 in)
• Quantity: Sold as a kit.
• Separate components required: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16403-DR
• Kit function: Front Brake Kits - Street Performance; front position

Fitment & Compatibility

Retain the specified five-lug front hubs and factory disc spindles on the listed 1994–2004 Mustang. Check Base, GT, SVT Cobra and Mach I rows, including the chart restrictions, before choosing the brake package. The two-piece 14-inch rotor assembly and radial AERO6 calipers require wheel verification using DS-1422. Braided 18-inch flexlines are included and must be checked for correct fitting size and routing. No hub, spindle, master cylinder or booster is supplied. Inspect the entire front-to-rear brake balance after conversion.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
