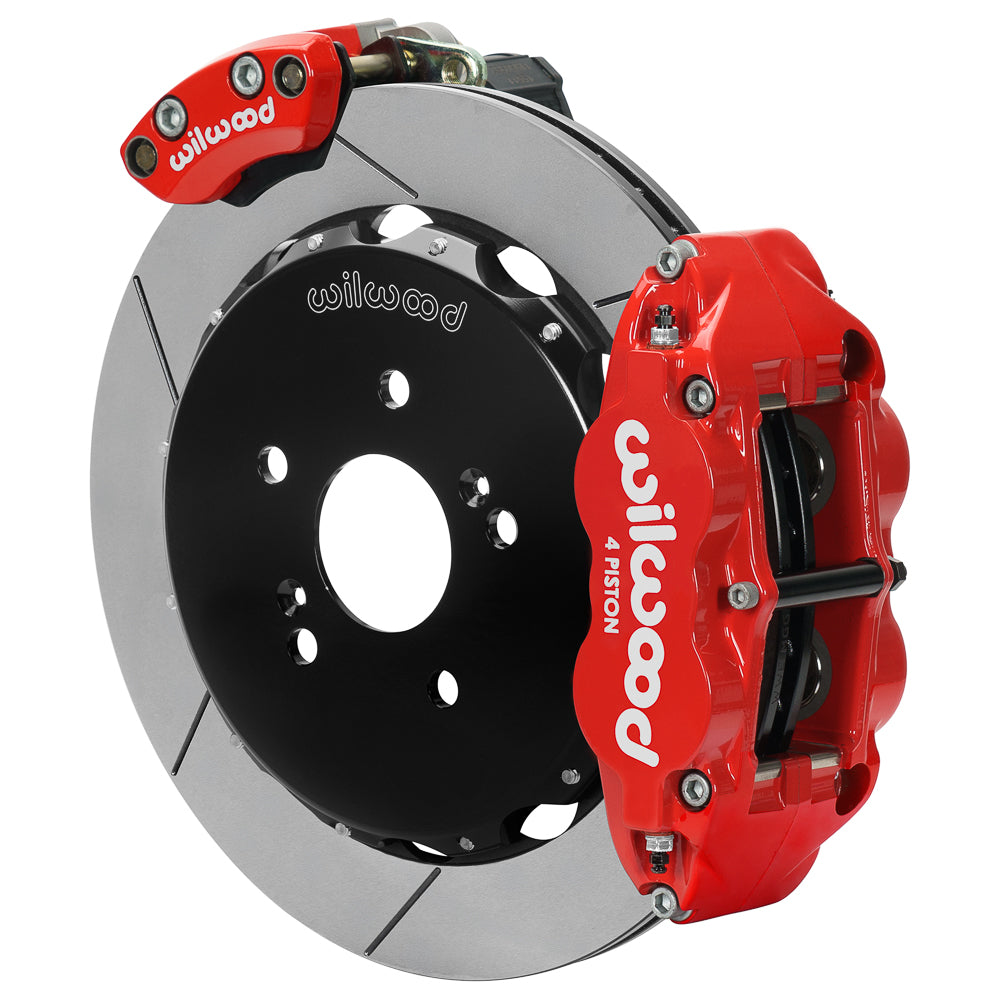

Wilwood Red Superlite Rear EPB Conversion for Honda S2000 (2000–2009), Slotted GT Rotors and Braided Lines

Red Superlite rear brakes and GT rotors add electric parking to Honda S2000. Check wheel clearance for 12.88-inch rotors. This conversion keeps hydraulic service braking and electric parking in separate calipers selected for the documented mounting arrangement. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

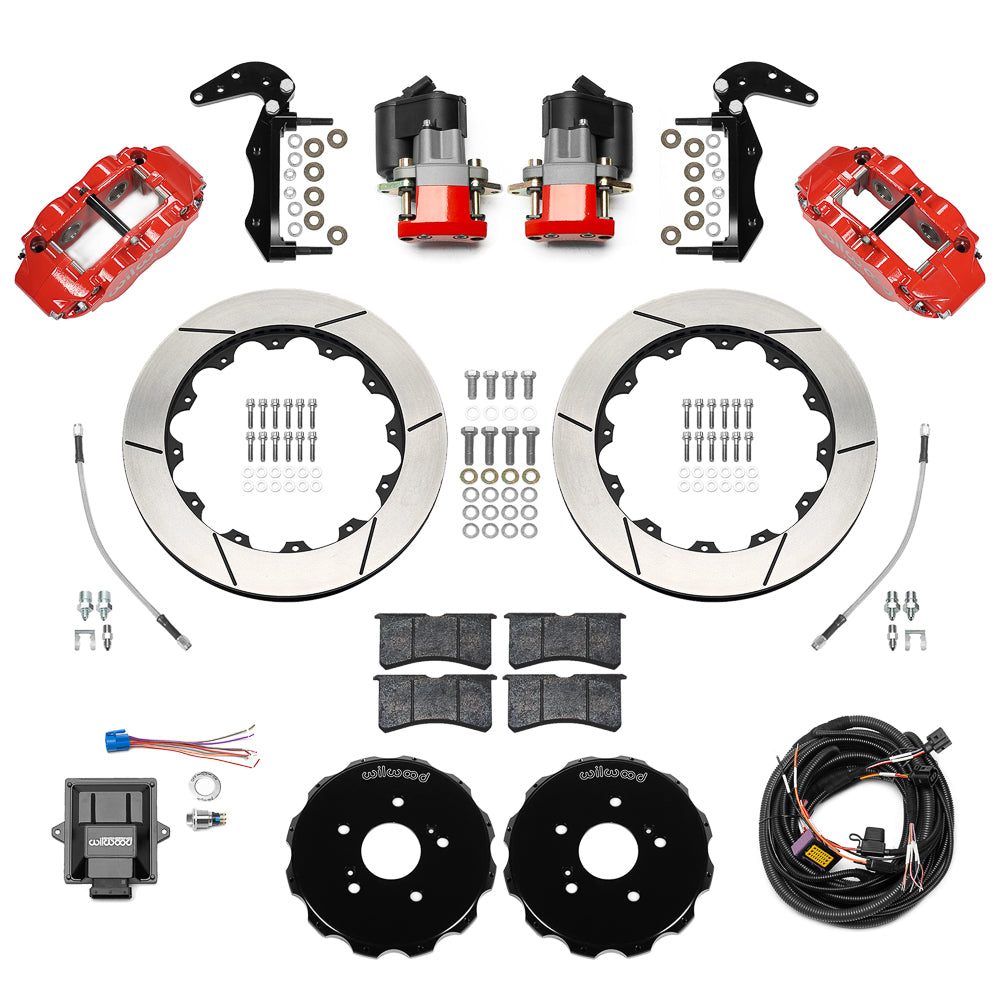

Technical Details

• Application / axle position: Rear Brake Kits - Street Performance; rear position
• Rotor specification: 12.88 × 0.81 inches; Iron; vented; GT Slotted
• Supplied service-pad compound: BP-10
• Wheel-size starting point: 17 in; verify the complete clearance drawing
• Flexline inclusion: Included; 220-18589 (12.00 in)
• Caliper family, piston count and finish: 4-piston Forged Narrow Superlite 4R; Red Powder Coat
• Hydraulic inlet: 1/8-27 NPT
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm
• Caliper mounting: Radial; piston material: stainless steel
• Items outside the kit: spindles, wheel hubs, master cylinder, brake booster
• Supplied mounting components: mounting hardware
• Manufacturer part number: 140-16347-R
• Quantity: Sold as a kit.

Fitment & Compatibility

This rear conversion is documented for the listed Honda S2000 from 2000–2009. Four-piston Superlite hydraulic calipers handle braking, and separate electric calipers provide parking with the supplied controller and wiring harness. The electronic system is a parking brake rather than an emergency stopping brake. The included 12-inch flexlines need a routing and clearance check through suspension travel. Compare the 12.88-inch rotor and caliper assembly with DS-1409 and the actual wheel shape; a 17-inch diameter is a starting point, not a fit guarantee.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
