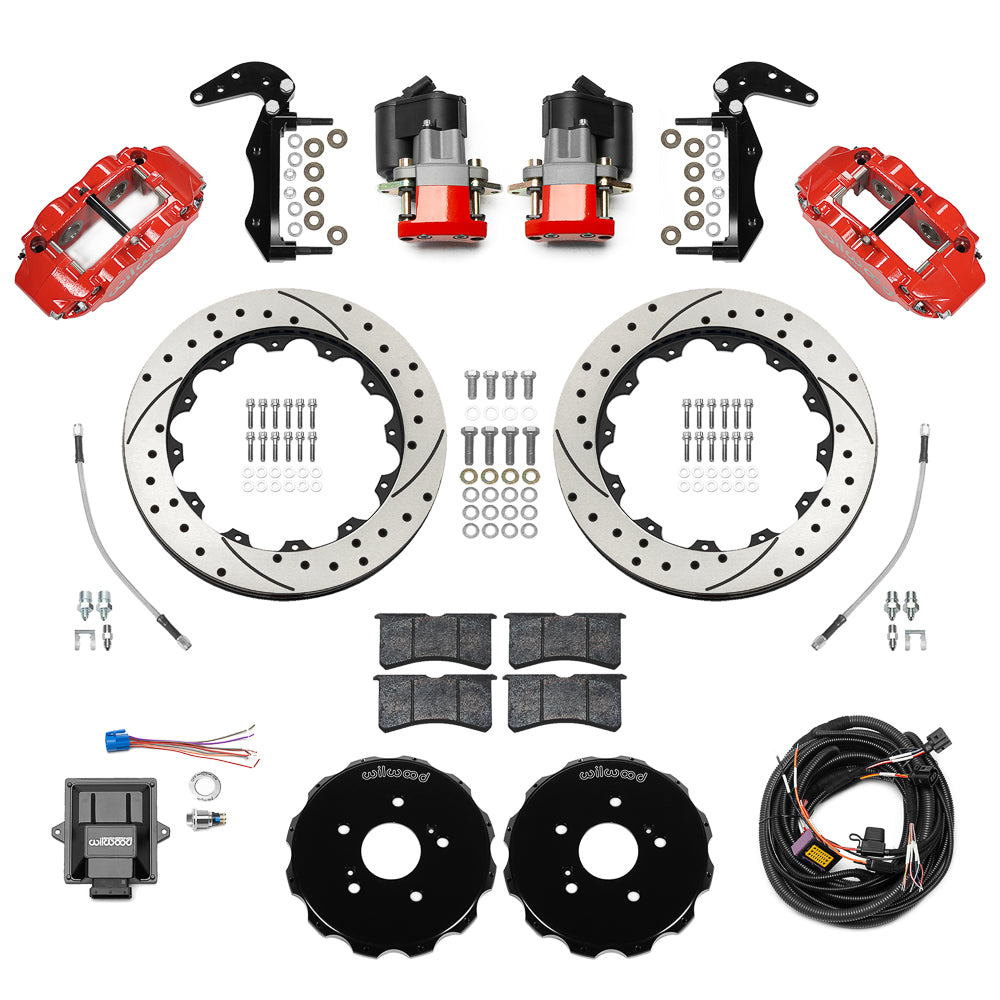

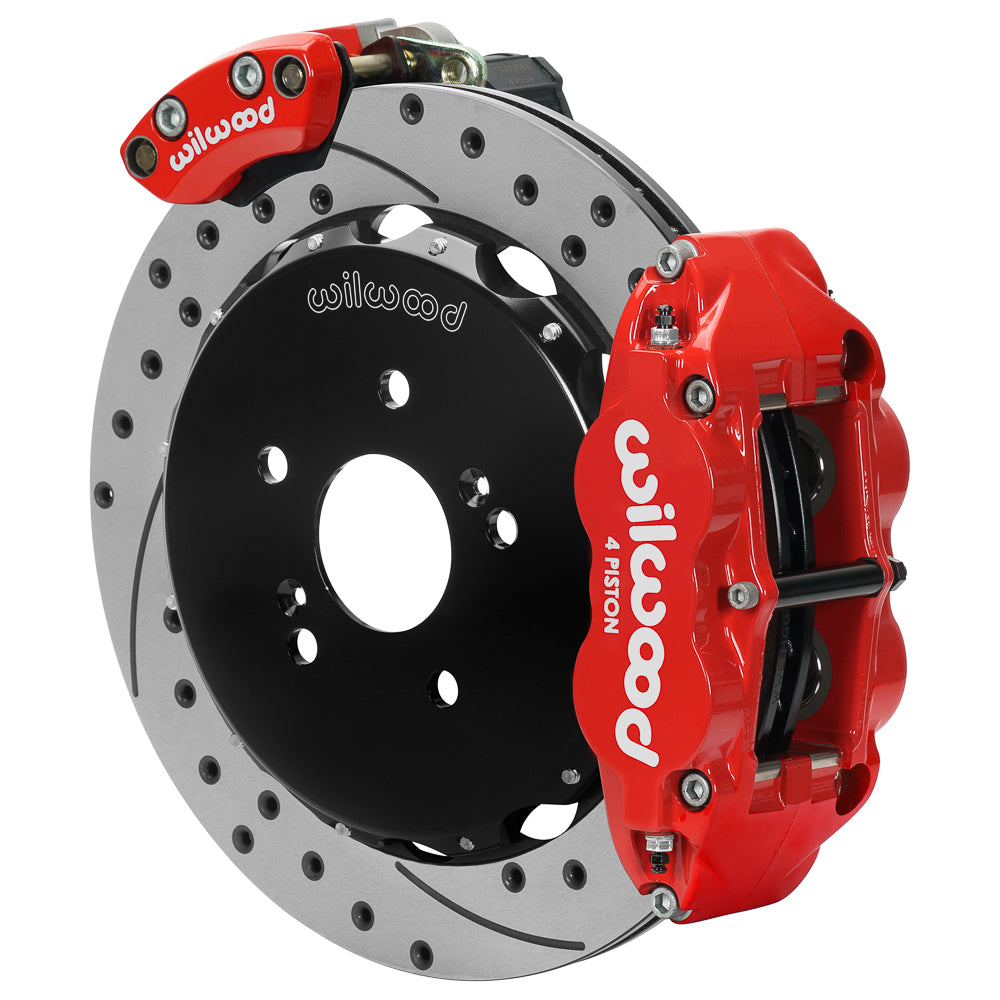

Wilwood 12.88-Inch SRP Rear Brake Kit with Red Superlites, Electronic Parking and Flexlines for Honda S2000 (2000–2009)

Red four-piston rear brakes and drilled SRP rotors add electric parking to the listed Honda S2000. Verify the control-unit installation and wheel fit. This conversion keeps hydraulic service braking and electric parking in separate calipers selected for the documented mounting arrangement. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Service-brake configuration: 4-piston Forged Narrow Superlite 4R; Red Powder Coat
• Brake pad selection supplied: BP-10
• Caliper fluid connection: 1/8-27 NPT
• Caliper mounting: Radial; piston material: stainless steel
• Rotor assembly dimensions and material: 12.88 × 0.81 inches; Iron; vented; SRP Drilled & Slotted
• Nominal wheel diameter reference: 17 in; verify the complete clearance drawing
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm
• Included installation items: mounting hardware
• Hydraulic flexlines: Included; 220-18589 (12.00 in)
• Quantity: Sold as a kit.
• Separate components required: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16347-DR
• Kit function: Rear Brake Kits - Street Performance; rear position

Fitment & Compatibility

This rear conversion is documented for the listed Honda S2000 from 2000–2009. Four-piston Superlite hydraulic calipers handle braking, and separate electric calipers provide parking with the supplied controller and wiring harness. The electronic system is a parking brake rather than an emergency stopping brake. The included 12-inch flexlines need a routing and clearance check through suspension travel. Compare the 12.88-inch rotor and caliper assembly with DS-1409 and the actual wheel shape; a 17-inch diameter is a starting point, not a fit guarantee.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
