Wilwood Honda S2000 Rear Brake Conversion (2000–2009), Black Calipers, SRP Rotors, Electric Parking and Hoses

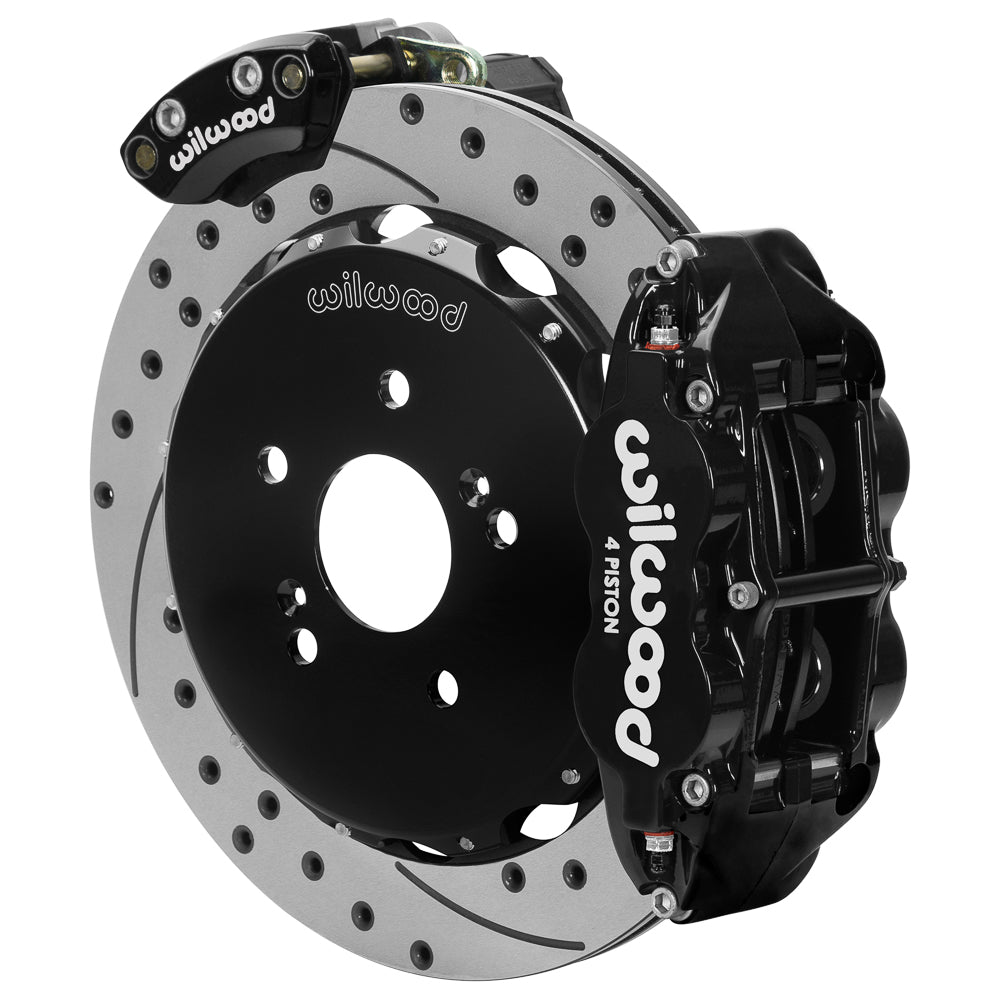

Drilled and slotted 12.88-inch rear rotors equip listed Honda S2000 models with black Superlite calipers and EPB. Check wiring and wheel clearance. This conversion keeps hydraulic service braking and electric parking in separate calipers selected for the documented mounting arrangement. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

• Rotor dimensions, construction and face: 12.88 × 0.81 inches; Iron; vented; SRP Drilled & Slotted
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm
• Nominal wheel diameter reference: 17 in; verify the complete clearance drawing
• Hydraulic caliper specification: 4-piston Forged Narrow Superlite 4R; Black Powder Coat
• Supplied service-pad compound: BP-10
• Mounting and piston details: Radial; piston material: stainless steel
• Hydraulic inlet: 1/8-27 NPT
• Hose provision: Included; 220-18589 (12.00 in)
• Hardware supplied: mounting hardware
• Components to provide separately: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16347-D
• Kit function: Rear Brake Kits - Street Performance; rear position
• Quantity: Sold as a kit.

Fitment & Compatibility

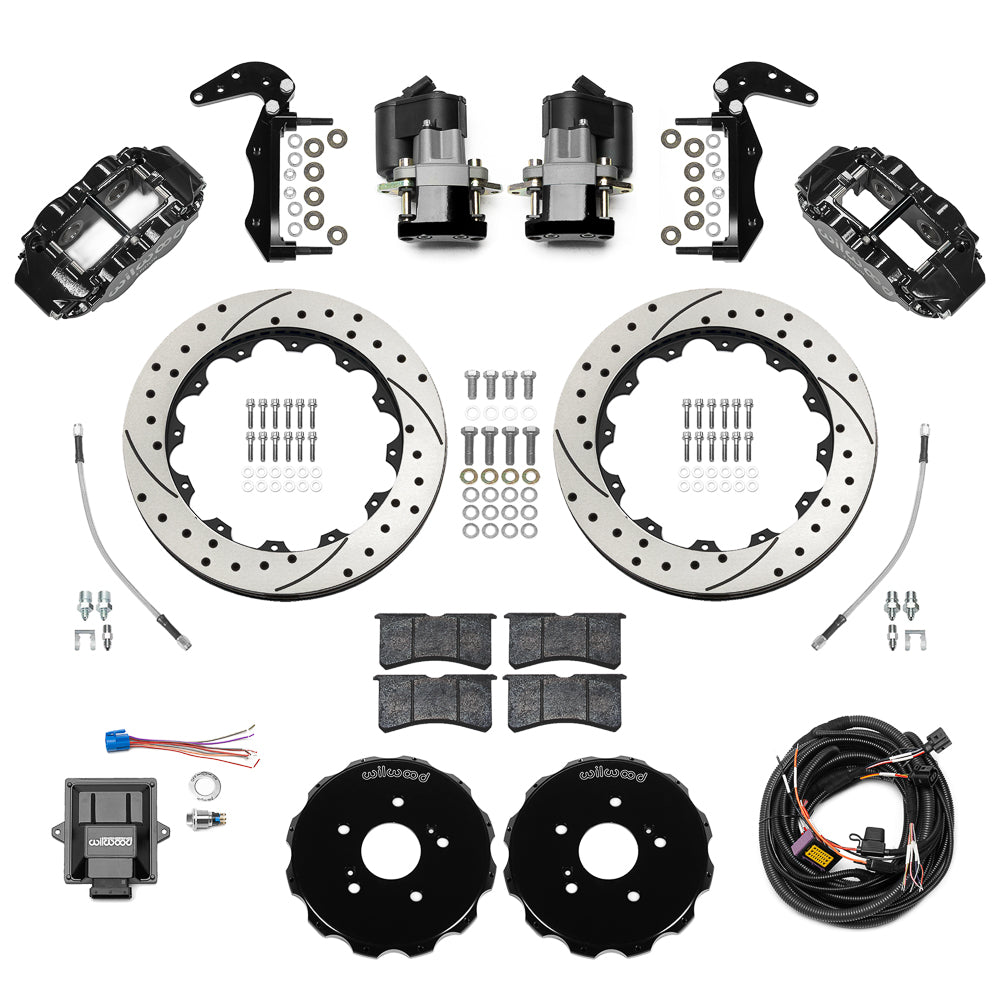

This rear conversion is documented for the listed Honda S2000 from 2000–2009. Four-piston Superlite hydraulic calipers handle braking, and separate electric calipers provide parking with the supplied controller and wiring harness. The electronic system is a parking brake rather than an emergency stopping brake. The included 12-inch flexlines need a routing and clearance check through suspension travel. Compare the 12.88-inch rotor and caliper assembly with DS-1409 and the actual wheel shape; a 17-inch diameter is a starting point, not a fit guarantee.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
