Wilwood Rear Superlite 4R Electronic Parking Brake Kit for Honda S2000 (2000–2009), Black Calipers and 12.88-Inch GT Rotors

Convert listed Honda S2000 rear brakes to black Superlite calipers, GT rotors and electric parking. Includes flexlines; verify wheel and wiring space. This conversion keeps hydraulic service braking and electric parking in separate calipers selected for the documented mounting arrangement. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Manufacturer part number: 140-16347
• Kit function: Rear Brake Kits - Street Performance; rear position
• Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat
• Caliper mounting: Radial; piston material: stainless steel
• Rotor package: 12.88 × 0.81 inches; Iron; vented; GT Slotted
• Supplied service-pad compound: BP-10
• Hydraulic inlet: 1/8-27 NPT
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm
• Nominal wheel diameter reference: 17 in; verify the complete clearance drawing
• Hydraulic flexlines: Included; 220-18589 (12.00 in)

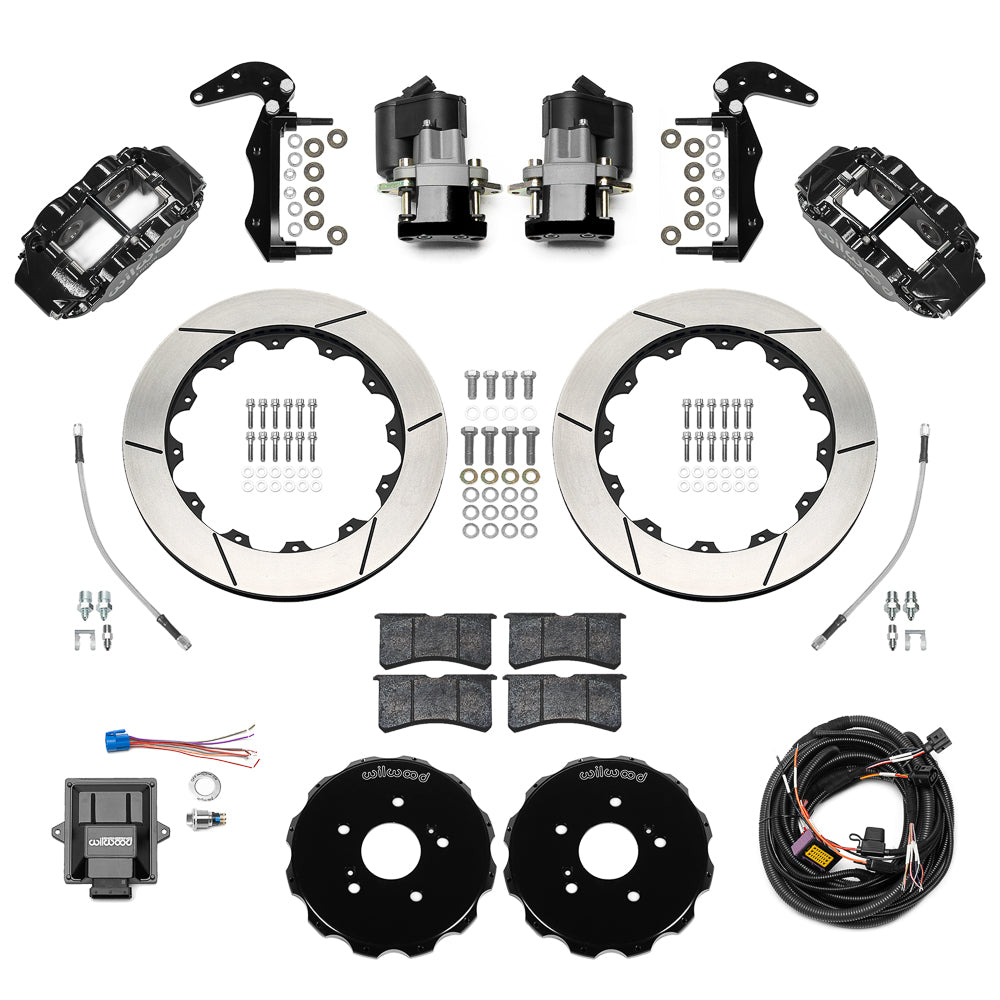

• Included installation items: mounting hardware
• Not supplied: spindles, wheel hubs, master cylinder, brake booster
• Quantity: Sold as a kit.

Fitment & Compatibility

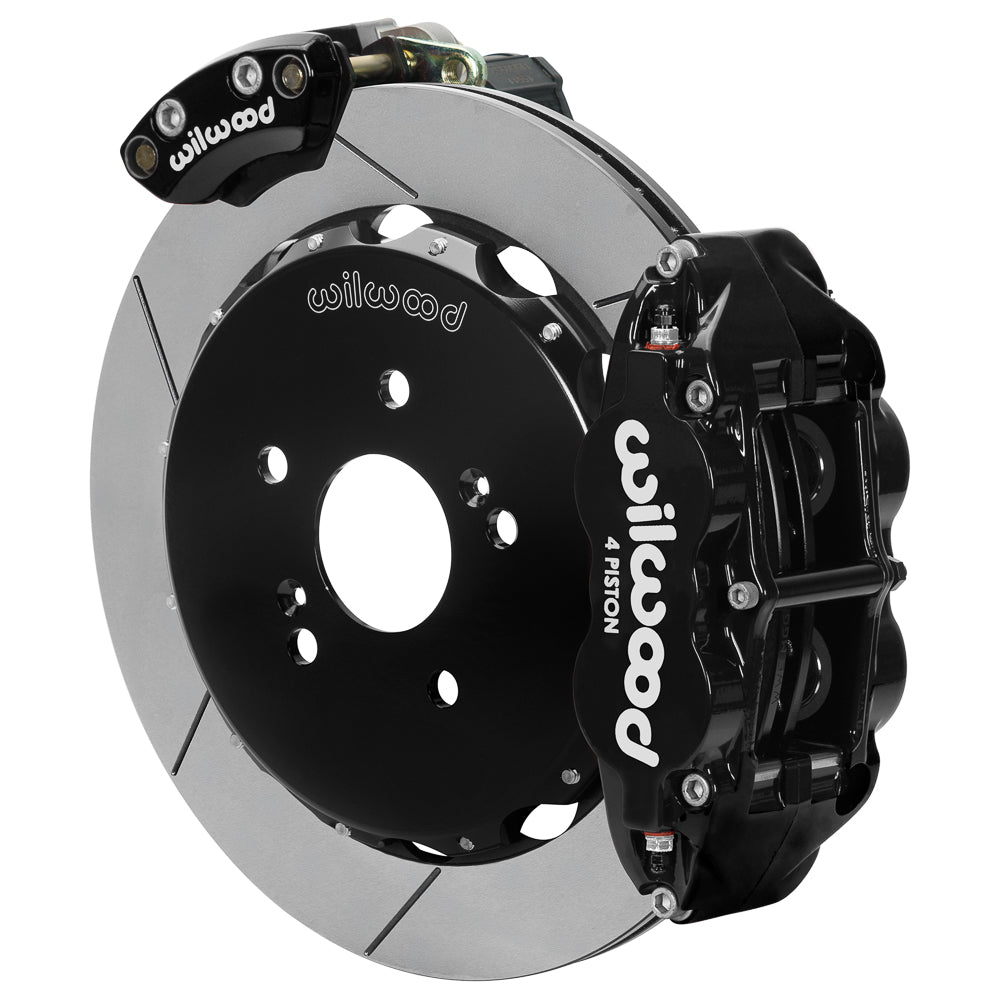

This rear conversion is documented for the listed Honda S2000 from 2000–2009. Four-piston Superlite hydraulic calipers handle braking, and separate electric calipers provide parking with the supplied controller and wiring harness. The electronic system is a parking brake rather than an emergency stopping brake. The included 12-inch flexlines need a routing and clearance check through suspension travel. Compare the 12.88-inch rotor and caliper assembly with DS-1409 and the actual wheel shape; a 17-inch diameter is a starting point, not a fit guarantee.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
