Product details

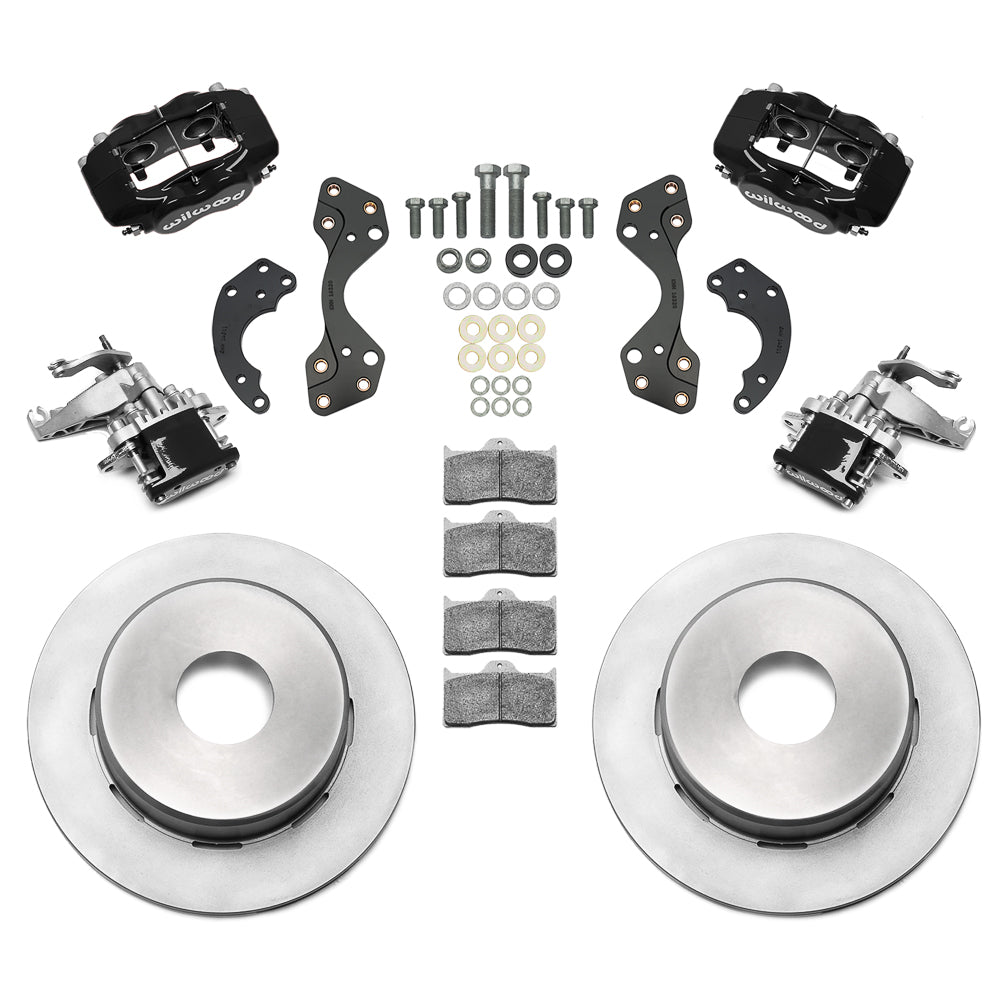

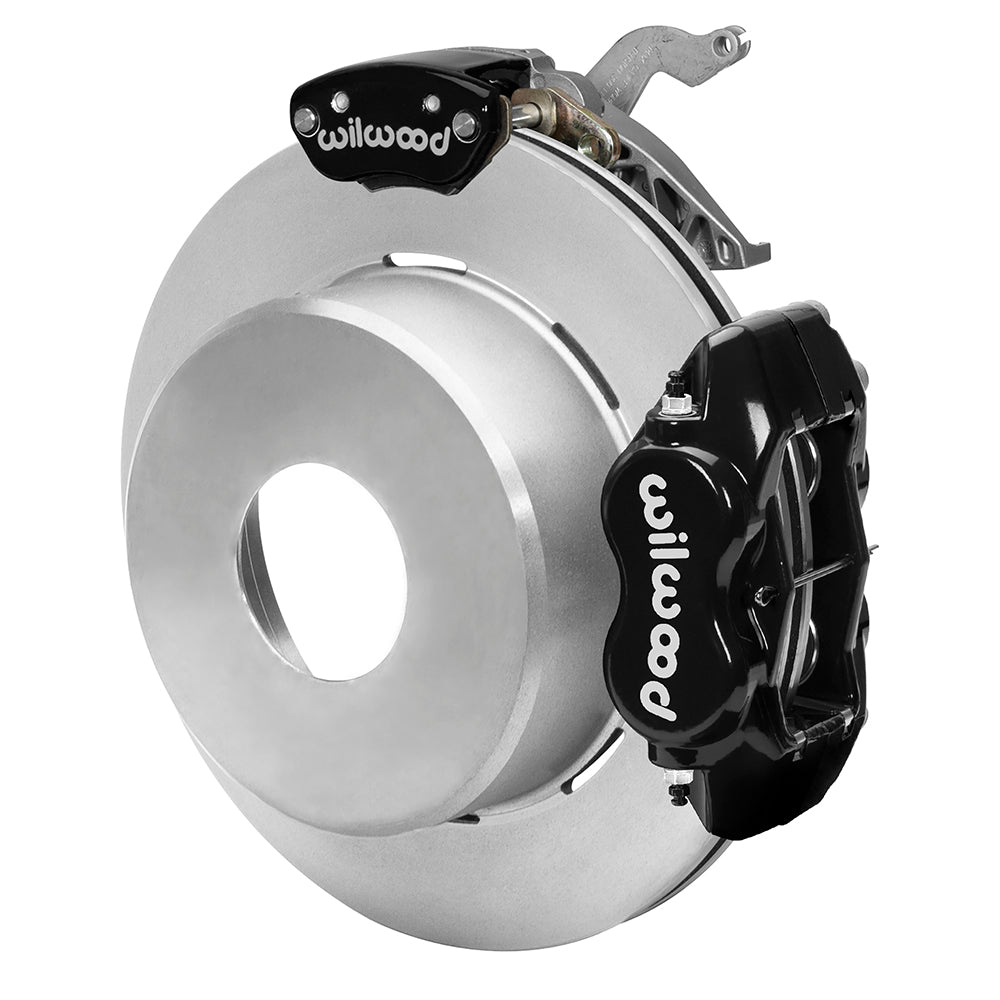

Blank rotor bolt circles allow machining for the verified Currie Pro-Tour rear hub. Black Dynalite and MC4 calipers require separate lines and cables. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.
Technical Details
- Manufacturer part number: 140-16317
- Kit function: Rear Brake Kits - Street Performance; rear position
- Service calipers: 4-piston Forged Dynalite Internal; Black Powder Coat
- Caliper mounting: Lug; piston material: stainless steel
- Rotor package: 12.19 × 0.81 inches; Iron; vented; Plain Face
- Supplied service-pad compound: BP-10
- Hydraulic inlet: 1/8-27 NPT
- Rotor / hub bolt-circle specification: Blank rotor bolt circle; requires machining for the selected hub
- Housing / axle interface: Currie Pro-Tour Unit Bearing
- Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
- Hydraulic flexlines: Not included
- Included installation items: mounting hardware
- Not supplied: spindles, wheel hubs, master cylinder, brake booster
- Quantity: Sold as a kit.
Fitment & Compatibility
Specify the Currie Pro-Tour unit-bearing floater and verify its hub details before arranging professional machining of the blank rotor bolt circle. Blank means the wheel-stud bolt pattern is undrilled; it does not mean a solid nonvented rotor. The hydraulic Dynalite and separate mechanical MC4 calipers share the vented rotor. Parking cables, adapters and hydraulic hoses are separate installation items. DS-1421 supplies the assembly and adjustment procedure. Compare the complete service-and-parking-caliper envelope with the selected wheel, including the hub registration and rotor mounting details.
Wilwood product specifications · Installation instructions
With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
