Product details

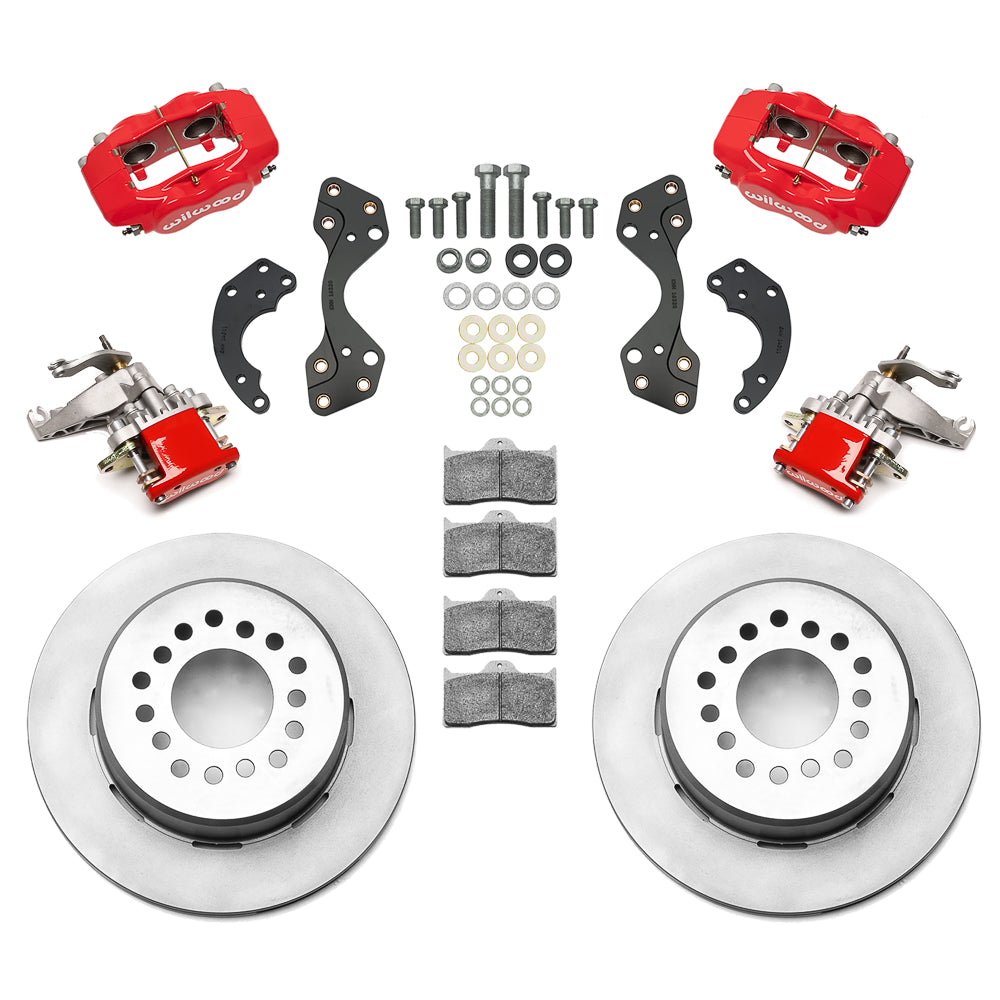

Fit red Dynalite service calipers and cable-operated MC4 parking brakes to a Currie Pro-Tour floater. Match the 12.19-inch rotor and hub interface. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.
Technical Details
- Application / axle position: Rear Brake Kits - Street Performance; rear position
- Rotor specification: 12.19 × 0.81 inches; Iron; vented; Plain Face
- Supplied service-pad compound: BP-10
- Wheel-size starting point: 15 in; verify the complete clearance drawing
- Flexline inclusion: Not included
- Caliper family, piston count and finish: 4-piston Forged Dynalite Internal; Red Powder Coat
- Hydraulic inlet: 1/8-27 NPT
- Housing / axle interface: Currie Pro-Tour Unit Bearing
- Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
- Caliper mounting: Lug; piston material: stainless steel
- Items outside the kit: spindles, wheel hubs, master cylinder, brake booster
- Supplied mounting components: mounting hardware
- Manufacturer part number: 140-16316-R
- Quantity: Sold as a kit.
Fitment & Compatibility

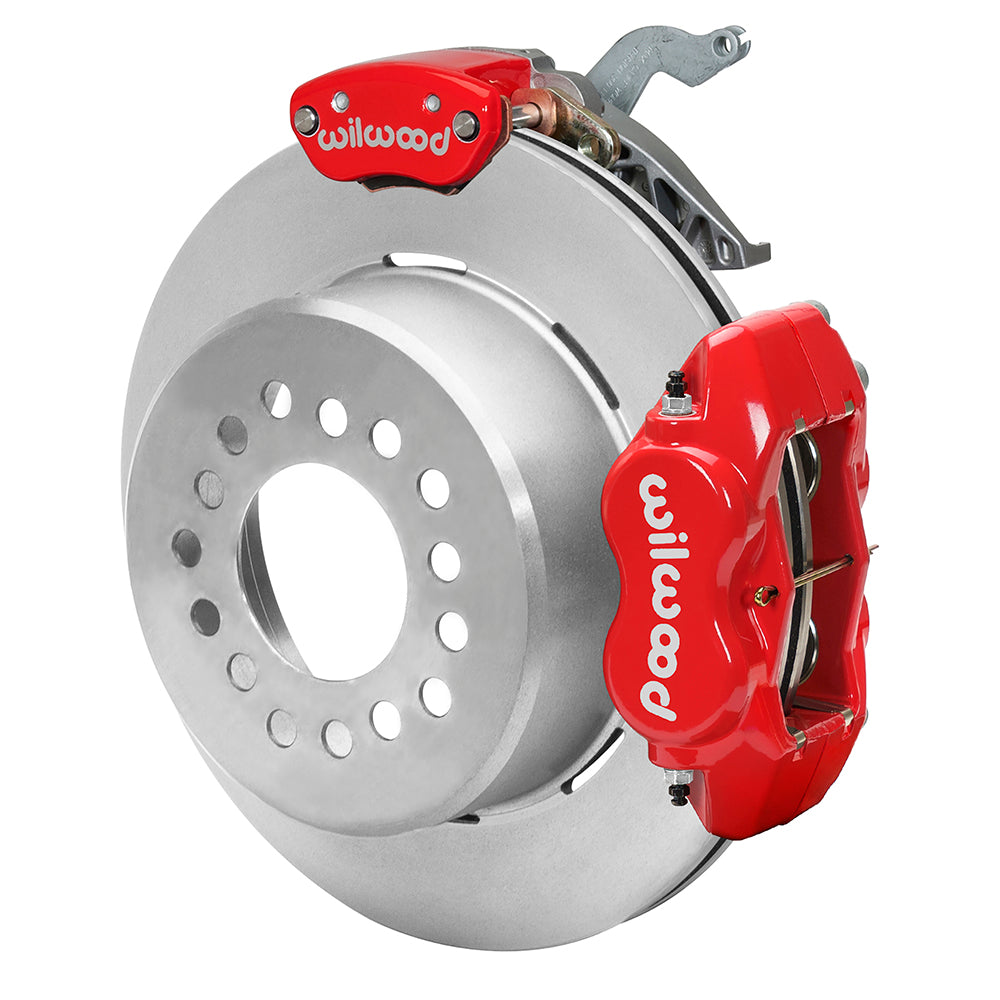

Designed for the Currie Pro-Tour unit-bearing floating axle, this kit uses a drilled multi-pattern rotor interface. Check the actual Currie hub and rotor registration before assembly. A four-piston Dynalite operates hydraulically; a separate MC4 caliper provides cable-operated parking on the same rotor. DS-1421 does not include parking cables, cable adapters or hydraulic lines. Route and adjust a suitable cable system and inspect both calipers for wheel clearance. Do not treat the catalog zero-offset field as a universal axle-flange measurement.
Wilwood product specifications · Installation instructions
With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
