Product details

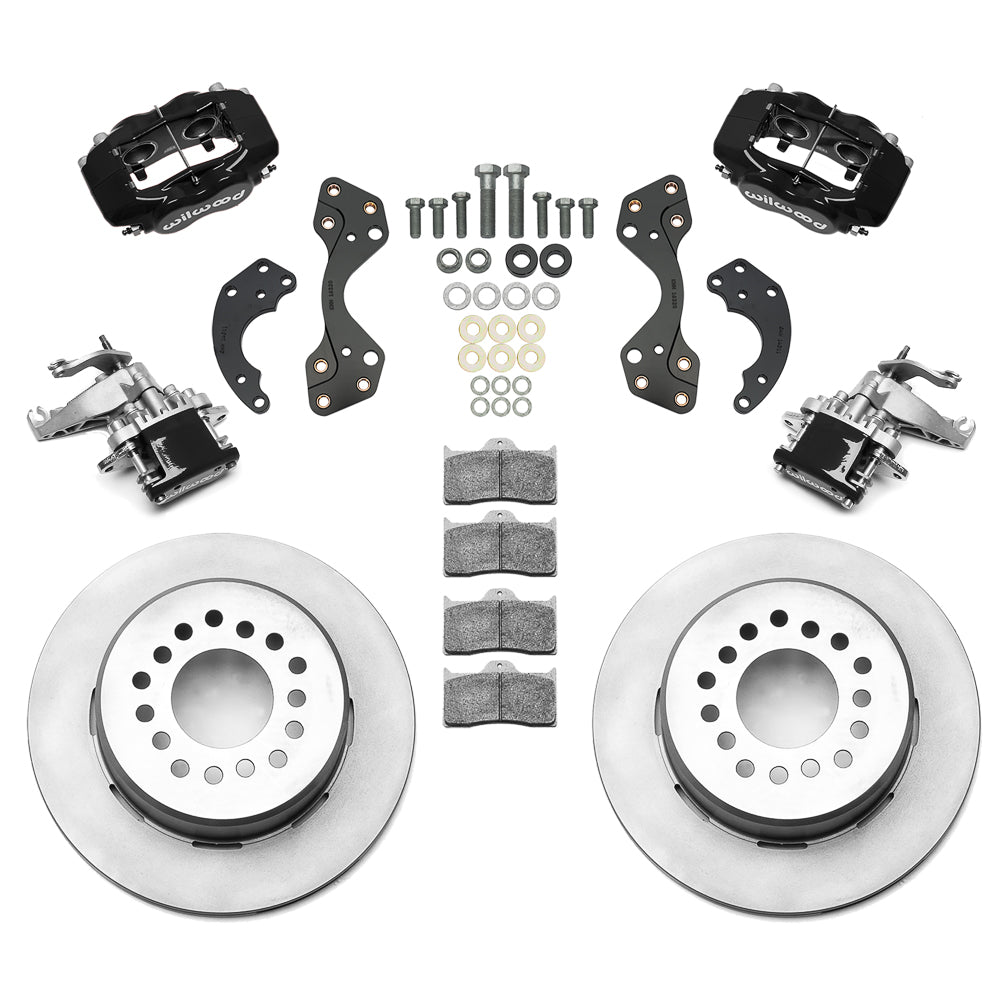

Black Dynalite rear service brakes and separate MC4 parking calipers mount to Currie Pro-Tour unit-bearing floaters. Verify the drilled rotor pattern. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.
Technical Details
- Manufacturer part number: 140-16316
- Kit function: Rear Brake Kits - Street Performance; rear position
- Service calipers: 4-piston Forged Dynalite Internal; Black Powder Coat
- Caliper mounting: Lug; piston material: stainless steel
- Rotor package: 12.19 × 0.81 inches; Iron; vented; Plain Face
- Supplied service-pad compound: BP-10
- Hydraulic inlet: 1/8-27 NPT
- Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm
- Housing / axle interface: Currie Pro-Tour Unit Bearing
- Nominal wheel diameter reference: 15 in; verify the complete clearance drawing
- Hydraulic flexlines: Not included
- Included installation items: mounting hardware
- Not supplied: spindles, wheel hubs, master cylinder, brake booster
- Quantity: Sold as a kit.
Fitment & Compatibility
Designed for the Currie Pro-Tour unit-bearing floating axle, this kit uses a drilled multi-pattern rotor interface. Check the actual Currie hub and rotor registration before assembly. A four-piston Dynalite operates hydraulically; a separate MC4 caliper provides cable-operated parking on the same rotor. DS-1421 does not include parking cables, cable adapters or hydraulic lines. Route and adjust a suitable cable system and inspect both calipers for wheel clearance. Do not treat the catalog zero-offset field as a universal axle-flange measurement.
Wilwood product specifications · Installation instructions
With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
