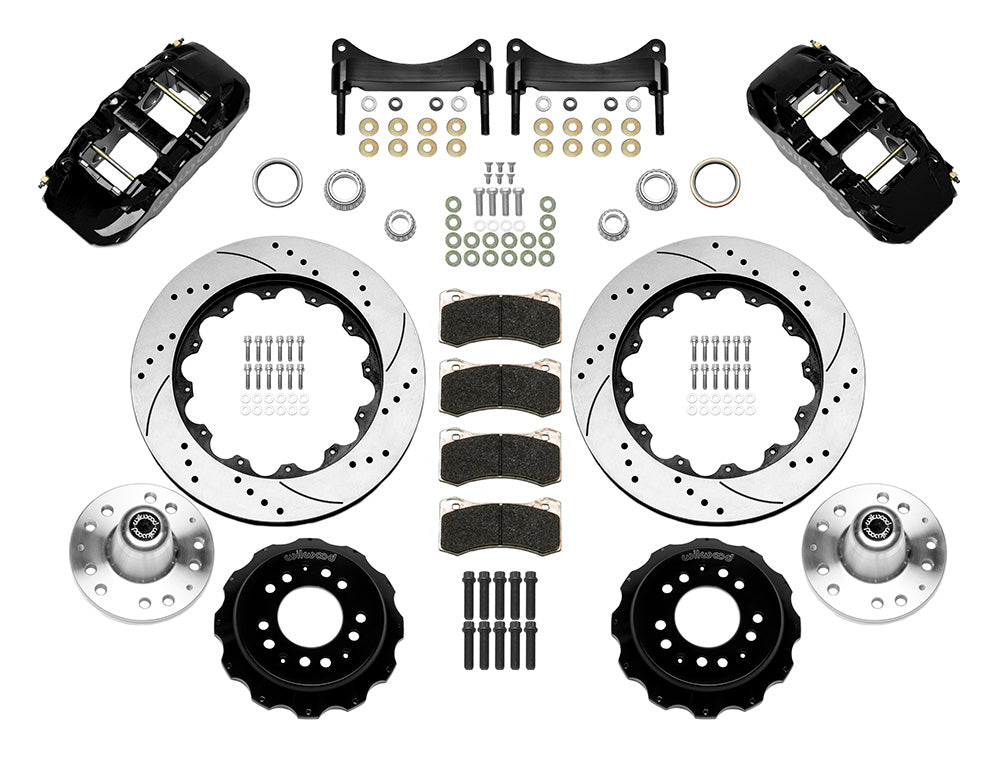

Wilwood black front brake kit for GM G-Body and related disc-spindle applications, laid out with two-piece drilled and slotted 14.00-inch rotors, hubs, bearings, pads, brackets and fasteners

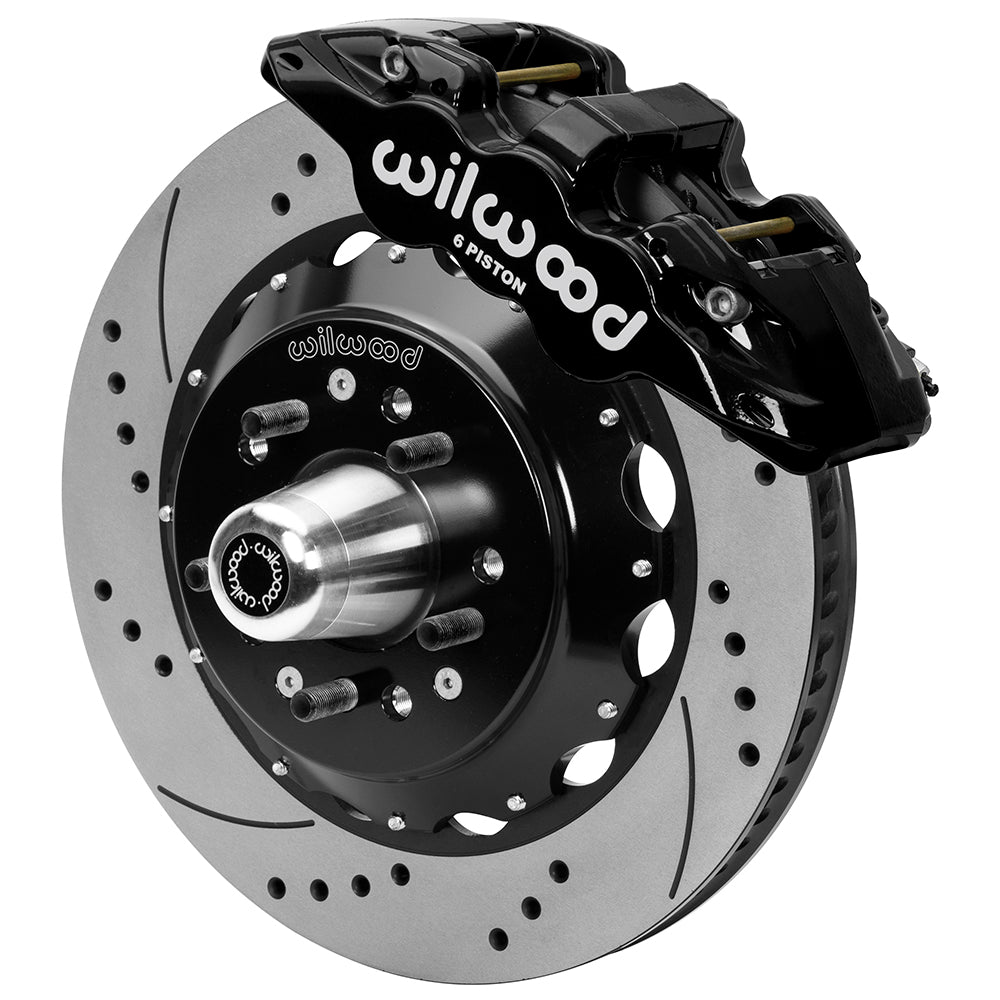

Wilwood black front caliper beside the assembled 14.00-inch drilled and slotted rotor for the GM G-Body and related disc-spindle brake conversion, with the hub and wheel studs visible
Wilwood black front brake kit for GM G-Body and related disc-spindle applications, laid out with two-piece drilled and slotted 14.00-inch rotors, hubs, bearings, pads, brackets and fasteners
Wilwood black front caliper beside the assembled 14.00-inch drilled and slotted rotor for the GM G-Body and related disc-spindle brake conversion, with the hub and wheel studs visible

Wilwood Drilled 14-Inch Front Brake Kit with Black AERO6 Calipers and Hubs for Listed GM G-Body and Related Disc Spindles

SKU: 140-16246-D

$2,783.98 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Listed GM G-Body and related front spindles use drilled SRP rotors, black AERO6 calipers and new hubs. Check machining requirements before purchase. Bill Wood founded Wilwood Engineering in 1977 in Camarillo, California, where the company is based. Wilwood designs and manufactures disc brake systems, producing brake rotors, calipers, master cylinders, fittings, valves and brake lines for motorsport, street-performance and specialized applications. Individual parts are selected to meet the requirements of the complete braking system.

Technical Details

  • Wheel-face change: +.10 inches per side relative to the original wheel face; verify wheel and fender clearance
  • Rotor dimensions, construction and face: 14.00 × 1.25 inches; Spec-37 Iron; vented; SRP Drilled & Slotted
  • Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
  • Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
  • Hydraulic caliper specification: 6-piston AERO6; Black Powder Coat
  • Supplied service-pad compound: BP-10
  • Mounting and piston details: Radial; piston material: stainless steel
  • Hydraulic inlet: 1/8-27 NPT
  • Hose provision: Not included; listed optional reference 220-7056 must be checked for the actual application
  • Hardware supplied: mounting hardware, wheel hubs
  • Components to provide separately: spindles, master cylinder, brake booster
  • Manufacturer part number: 140-16246-D
  • Kit function: Front Brake Kits - Street Performance; front position
  • Quantity: Sold as a kit.

Fitment & Compatibility

Read the specific GM model, year, drivetrain and brake notes in the table below. The G-Body-style factory disc spindle requires substantial machining: DS-1440 details removal of the original caliper ears and modification of bracket mounting holes. This work belongs with a qualified machine shop. Verify the spindle generation before comparing hub bearings; similar GM spindles are not automatically interchangeable. The +0.10-inch hub change affects wheel placement. Hoses must be sourced to the installed arrangement. A generic parking-cable note does not mean this front kit includes a parking brake.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1978-1987 GMC Caballero Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1978-1987 GMC Caballero Diablo Diablo Disc Drum Front Kit 1, 2, 3, 4, 5
1978-1980 GMC Caballero Laredo Laredo Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1981 Buick Century All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1987 Buick Regal All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1987 Chevrolet El Camino All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1983 Chevrolet Malibu All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1988 Chevrolet Monte Carlo All Disc Drum Front Kit 1, 2, 3, 4, 5
1979 Oldsmobile Cutlass Vista Cruiser Vista Cruiser Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1984 Oldsmobile Cutlass Calais Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1979, 1985-1986 Oldsmobile Cutlass Salon 442 442 Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1980, 1985-1987 Oldsmobile Cutlass Salon Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1980 Oldsmobile Cutlass Salon Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4, 5
1979 Oldsmobile Cutlass Salon Hurst Hurst Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1987 Oldsmobile Cutlass Supreme Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1981 Oldsmobile Cutlass Supreme Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1980 Pontiac Grand Am All Disc Drum Front Kit 1, 4, 5
1979-1987 Pontiac Grand Prix All Disc Drum Front Kit 1, 2, 3, 4, 5
1979-1980 Pontiac LeMans All Disc Drum Front Kit 1, 2, 3, 4, 5
1980 Oldsmobile Cutlass Base Base Disc Drum Front Kit 1, 2, 3, 4, 5
1980-1982 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 1, 4, 5
1981-1986 GMC Caballero Amarillo Amarillo Disc Drum Front Kit 1, 2, 3, 4, 5
1981 GMC Caballero Conquista Conquista Disc Drum Front Kit 1, 2, 3, 4, 5
1981 GMC Caballero Royal Knight Royal Knight Disc Drum Front Kit 1, 2, 3, 4, 5
1981 Oldsmobile Cutlass Brougham Brougham Disc Drum Front Kit 1, 2, 3, 4, 5
1981 Oldsmobile Cutlass Supreme LS LS Disc Drum Front Kit 1, 2, 3, 4, 5
1981 Pontiac LeMans All (Canada) Disc Drum Front Kit 1, 2, 3, 4, 5
1982 Chevrolet S10 Pickup All Disc Drum Front Kit 1, 2, 3, 4, 5
1982 GMC S15 All Disc Drum Front Kit 1, 2, 3, 4, 5
1982-1987 Pontiac Bonneville All Disc Drum Front Kit 1, 2, 3, 4, 5
1982-1983 Pontiac Grand LeMans Base Base Disc Drum Front Kit 1, 2, 4, 5
1982-1983 Pontiac Grand LeMans BR BR Disc Drum Front Kit 1, 2, 4, 5
1983-1997 Chevrolet S10 Blazer 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1983-1996 Chevrolet S10 Pickup 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1983-1990 GMC S15 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1983-1991 GMC S15 Jimmy 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1983-1984 Oldsmobile Cutlass Calais Hurst Hurst Disc Drum Front Kit 1, 2, 3, 4, 5
1983 Oldsmobile Cutlass Cruiser All Disc Drum Front Kit 1, 2, 4, 5
1984-1987 Buick Regal Grand National Grand National Disc Drum Front Kit 1, 2, 3, 4, 5
1987 Oldsmobile Cutlass Supreme 442 442 Disc Drum Front Kit 1, 2, 3, 4, 5
1988 Oldsmobile Cutlass Supreme RWD only Disc Drum Front Kit 1, 2, 3, 4, 5
1991-1996 GMC Sonoma 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1992-1997 GMC Jimmy 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1996-2000 Isuzu Hombre 4 x 2 Disc Drum Front Kit 1, 2, 3, 4, 5
1997-2003 Chevrolet S10 Pickup 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4, 5
1997-2002 GMC Sonoma 4 x 2 w/ Drum Rear Brake Disc Drum Front Kit 1, 2, 3, 4, 5
2003 Chevrolet S10 Pickup 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 1, 2, 3, 4, 5
2003 GMC Sonoma 4 x 2 w/ Disc Brake Rear Disc Disc Front Kit 1, 2, 3, 4, 5
2003 GMC Sonoma 4 x 2 w/ Drum Rear Disc Drum Front Kit 1, 2, 3, 4, 5
