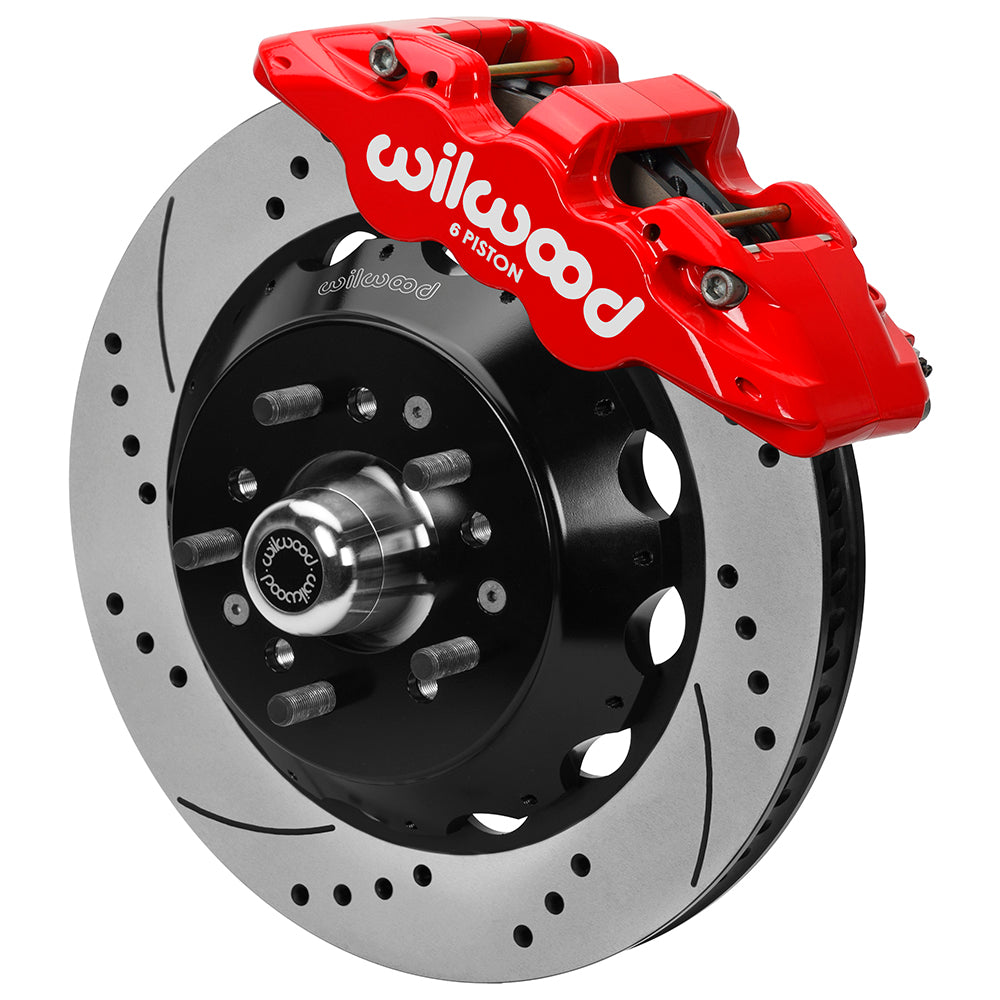

Wilwood 14-Inch Front SRP Hub Brake Kit, Red AERO6 Calipers, for GM Vehicles Using AFX ProSpindles

A red six-piston AERO6 front package combines SRP rotors and aluminum hubs for GM AFX ProSpindles. Verify the spindle kit and wheel backspacing. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use. Calipers, master cylinders, brake rotors, valves, brake lines and fittings form its range; the complete brake system determines which individual components are suitable.

Technical Details

• Service-brake configuration: 6-piston AERO6; Red Powder Coat
• Brake pad selection supplied: BP-10
• Caliper fluid connection: 1/8-27 NPT
• Caliper mounting: Radial; piston material: stainless steel
• Rotor assembly dimensions and material: 14.00 × 1.25 inches; Spec-37 Iron; vented; SRP Drilled & Slotted
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-face change: +.38 inches per side relative to the original wheel face; verify wheel and fender clearance

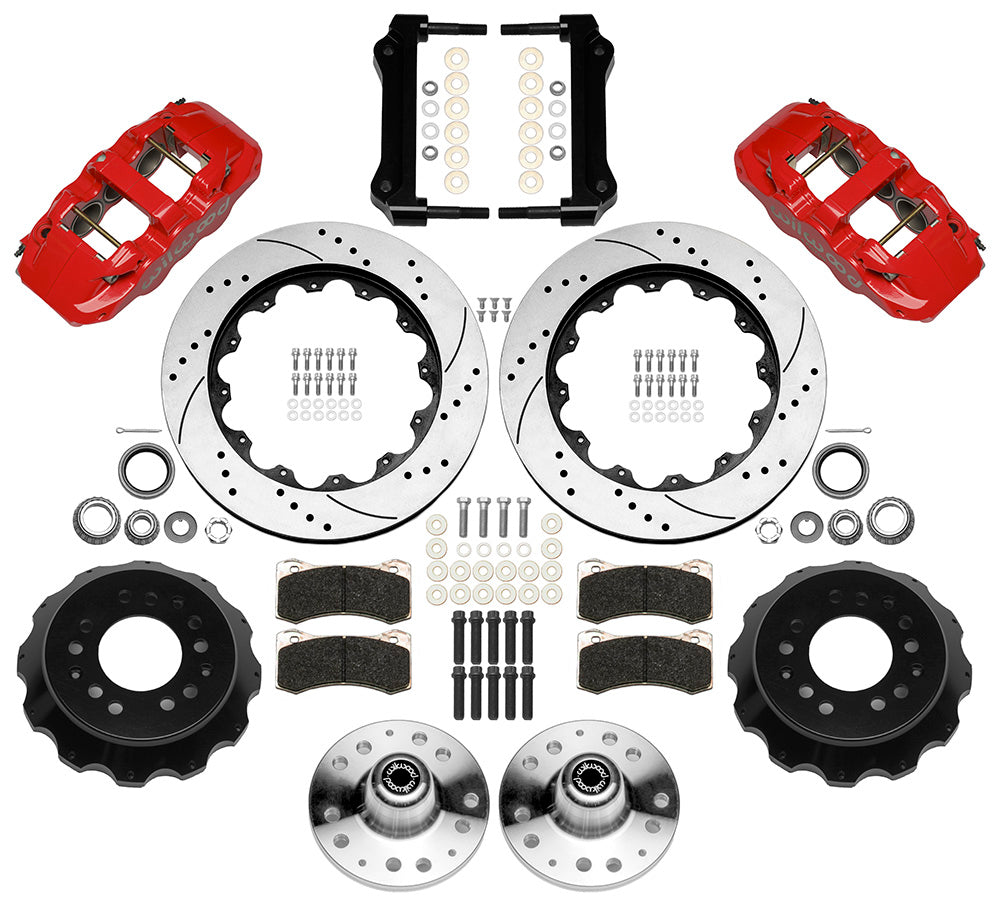

• Included installation items: mounting hardware, wheel hubs
• Hydraulic flexlines: Not included; listed optional reference 220-7056 must be checked for the actual application
• Quantity: Sold as a kit.
• Separate components required: spindles, master cylinder, brake booster
• Manufacturer part number: 140-16209-DR
• Kit function: Front Brake Kits - Street Performance; front position

Fitment & Compatibility

Use this hub conversion with the specified Wilwood AFX 2-inch drop ProSpindle, not an original GM spindle or a second-generation ProSpindle selected by appearance. DS-1433 identifies spindle kit 831-15890, sold separately, and calls for the appropriate customer-supplied steering arm. Applications and model-year boundaries are retained in the table below. The catalog +0.38-inch hub change must be included in wheel and fender planning. Complete the installation with correctly routed compatible flexlines and verify pad clearance, bearing adjustment and front-to-rear brake balance.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
