Wilwood AFX ProSpindle Front Hub Brake Kit for Listed GM Vehicles, Black AERO6 Calipers and 14-Inch GT Rotors

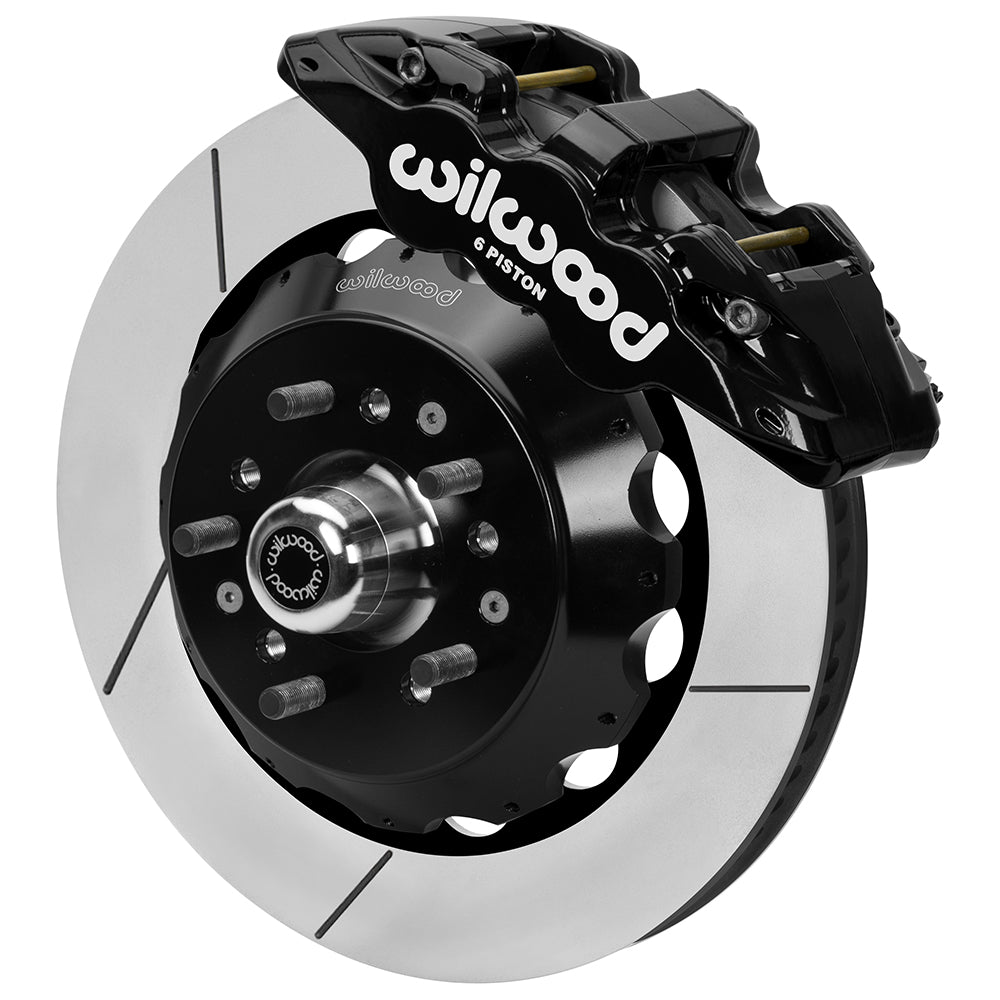

Black AERO6 front calipers and slotted GT rotors equip listed GM AFX ProSpindles. Match the first-generation spindle and 0.38-inch hub offset change. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use. Calipers, master cylinders, brake rotors, valves, brake lines and fittings form its range; the complete brake system determines which individual components are suitable.

Technical Details

• Manufacturer part number: 140-16209
• Kit function: Front Brake Kits - Street Performance; front position
• Service calipers: 6-piston AERO6; Black Powder Coat
• Caliper mounting: Radial; piston material: stainless steel
• Rotor package: 14.00 × 1.25 inches; Spec-37 Iron; vented; GT Slotted
• Supplied service-pad compound: BP-20
• Hydraulic inlet: 1/8-27 NPT
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-face change: +.38 inches per side relative to the original wheel face; verify wheel and fender clearance
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Hydraulic flexlines: Not included; listed optional reference 220-7056 must be checked for the actual application

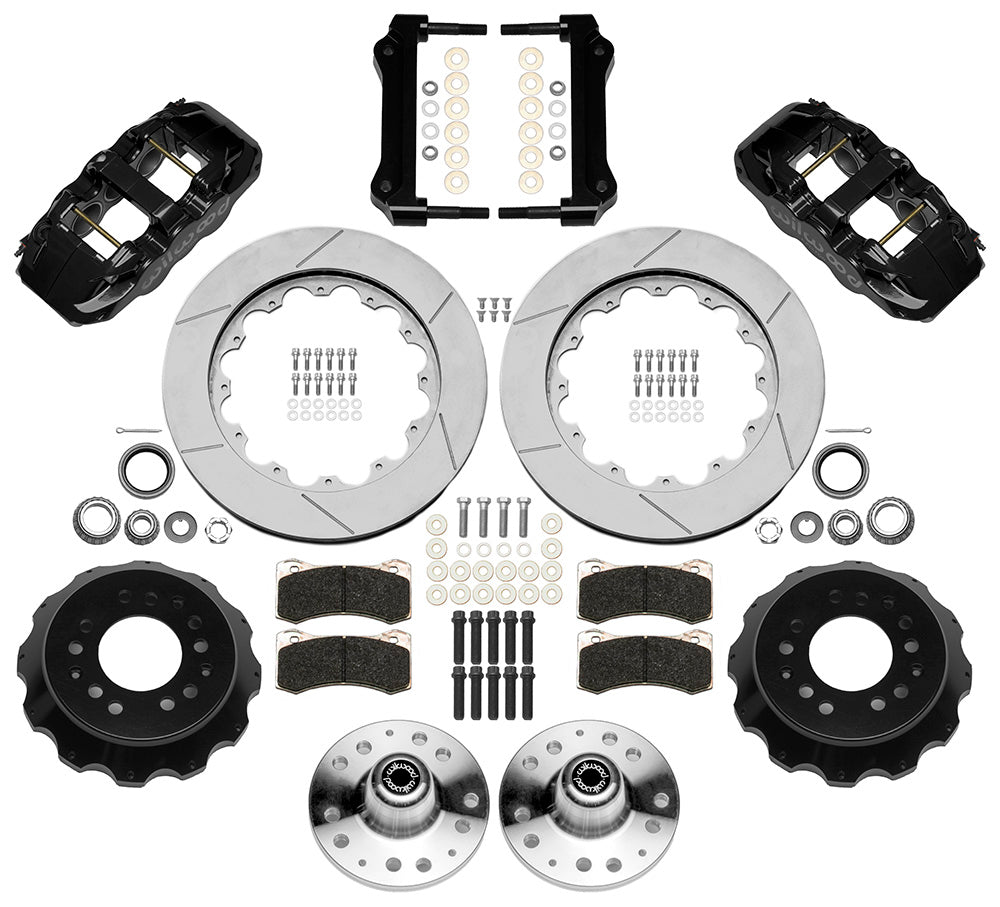

• Included installation items: mounting hardware, wheel hubs
• Not supplied: spindles, master cylinder, brake booster
• Quantity: Sold as a kit.

Fitment & Compatibility

Use this hub conversion with the specified Wilwood AFX 2-inch drop ProSpindle, not an original GM spindle or a second-generation ProSpindle selected by appearance. DS-1433 identifies spindle kit 831-15890, sold separately, and calls for the appropriate customer-supplied steering arm. Applications and model-year boundaries are retained in the table below. The catalog +0.38-inch hub change must be included in wheel and fender planning. Complete the installation with correctly routed compatible flexlines and verify pad clearance, bearing adjustment and front-to-rear brake balance.
