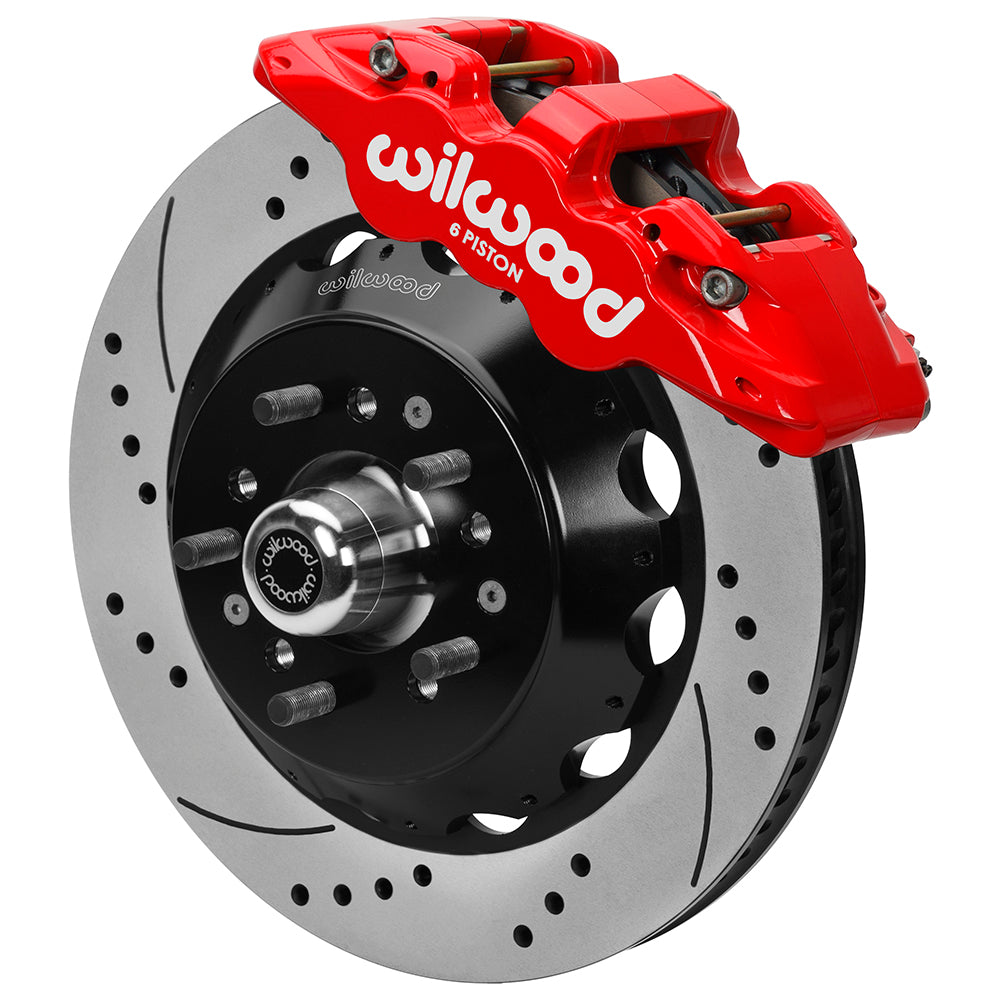

Wilwood Red AERO6 Front Brake Kit with SRP 14-Inch Rotors and Hubs for GM Second-Generation AFX ProSpindle Applications

Use red AERO6 front calipers and 14-inch SRP rotors on a verified second-generation AFX ProSpindle installation. Check the GM application and hoses. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. It designs and manufactures disc brake systems and components, including calipers, brake rotors, master cylinders, valves, fittings and brake lines. Its range serves motorsport, street-performance and specialized applications; each component must match the complete brake system.

Technical Details

• Service-brake configuration: 6-piston AERO6; Red Powder Coat
• Brake pad selection supplied: BP-10
• Caliper fluid connection: 1/8-27 NPT
• Caliper mounting: Radial; piston material: stainless steel
• Rotor assembly dimensions and material: 14.00 × 1.25 inches; Spec-37 Iron; vented; SRP Drilled & Slotted
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Wheel-face change: +.65 inches per side relative to the original wheel face; verify wheel and fender clearance

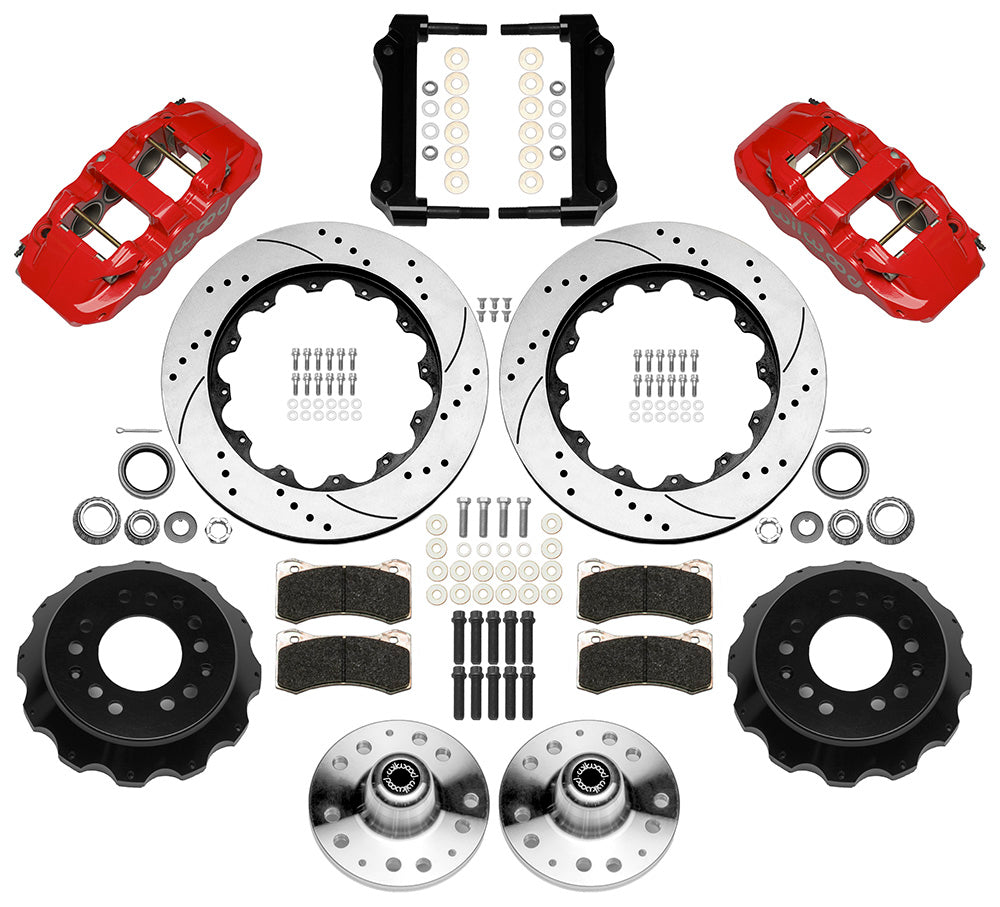

• Included installation items: mounting hardware, wheel hubs
• Hydraulic flexlines: Not included; listed optional reference 220-10509 must be checked for the actual application
• Quantity: Sold as a kit.
• Separate components required: spindles, master cylinder, brake booster
• Manufacturer part number: 140-16197-DR
• Kit function: Front Brake Kits - Street Performance; front position

Fitment & Compatibility

Only the specified second-generation Wilwood AFX 2-inch drop ProSpindle is the intended hub interface; this is not a stock-spindle conversion. DS-1432 identifies ProSpindle kit 831-15958, purchased separately. The full application chart below identifies the vehicle and chassis combinations that use that spindle. The +0.65-inch hub change moves each wheel outward relative to the catalog comparison, so assess tire-to-fender space as well as caliper-to-wheel clearance. Supply suitable hydraulic hoses separately and match the front and rear brake balance.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
