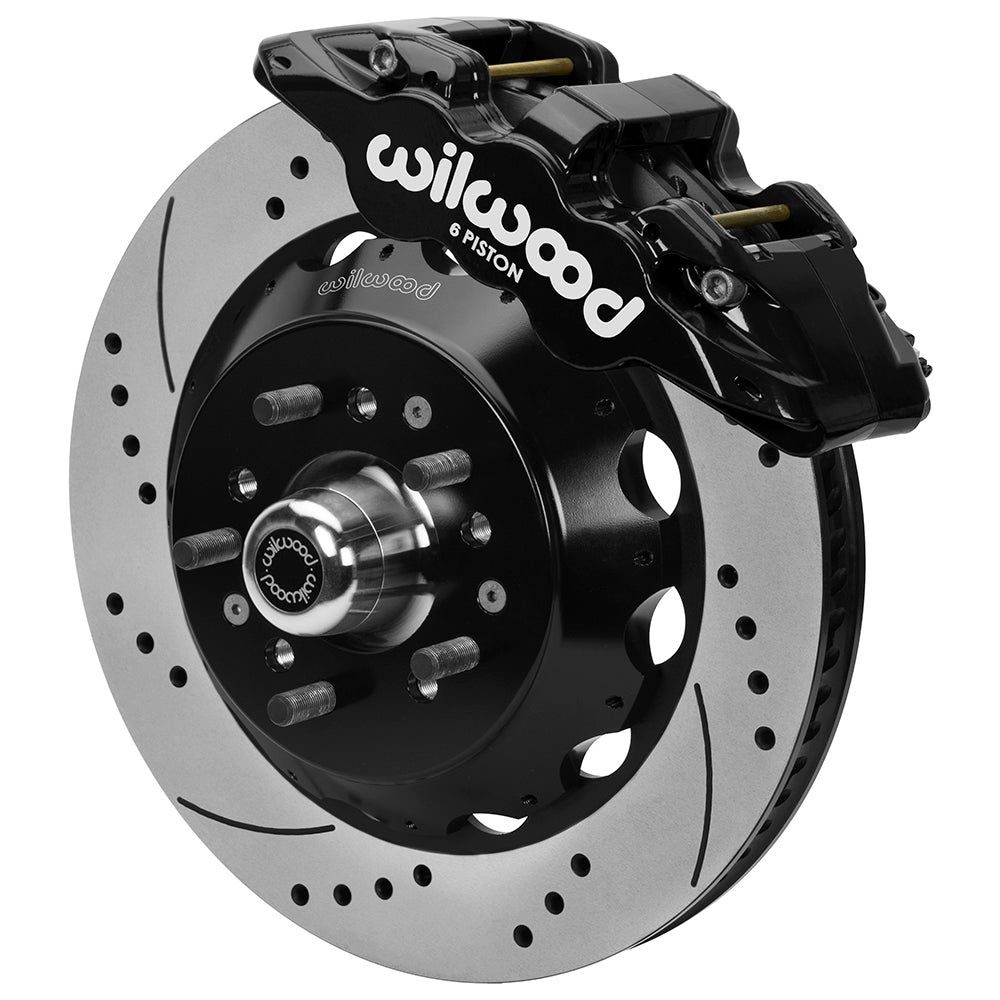

Wilwood 14-Inch Drilled Front Hub Conversion for Second-Generation AFX ProSpindles, Black AERO6 Calipers, Listed GM Vehicles

Drilled and slotted front rotors, black AERO6 calipers and hubs suit listed GM vehicles using second-generation AFX ProSpindles. Check wheel offset. Founded in 1977 by Bill Wood, Wilwood Engineering is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized use. Calipers, master cylinders, brake rotors, valves, brake lines and fittings form its range; the complete brake system determines which individual components are suitable.

Technical Details

• Wheel-face change: +.65 inches per side relative to the original wheel face; verify wheel and fender clearance
• Rotor dimensions, construction and face: 14.00 × 1.25 inches; Spec-37 Iron; vented; SRP Drilled & Slotted
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Hydraulic caliper specification: 6-piston AERO6; Black Powder Coat
• Supplied service-pad compound: BP-10
• Mounting and piston details: Radial; piston material: stainless steel
• Hydraulic inlet: 1/8-27 NPT
• Hose provision: Not included; listed optional reference 220-10509 must be checked for the actual application

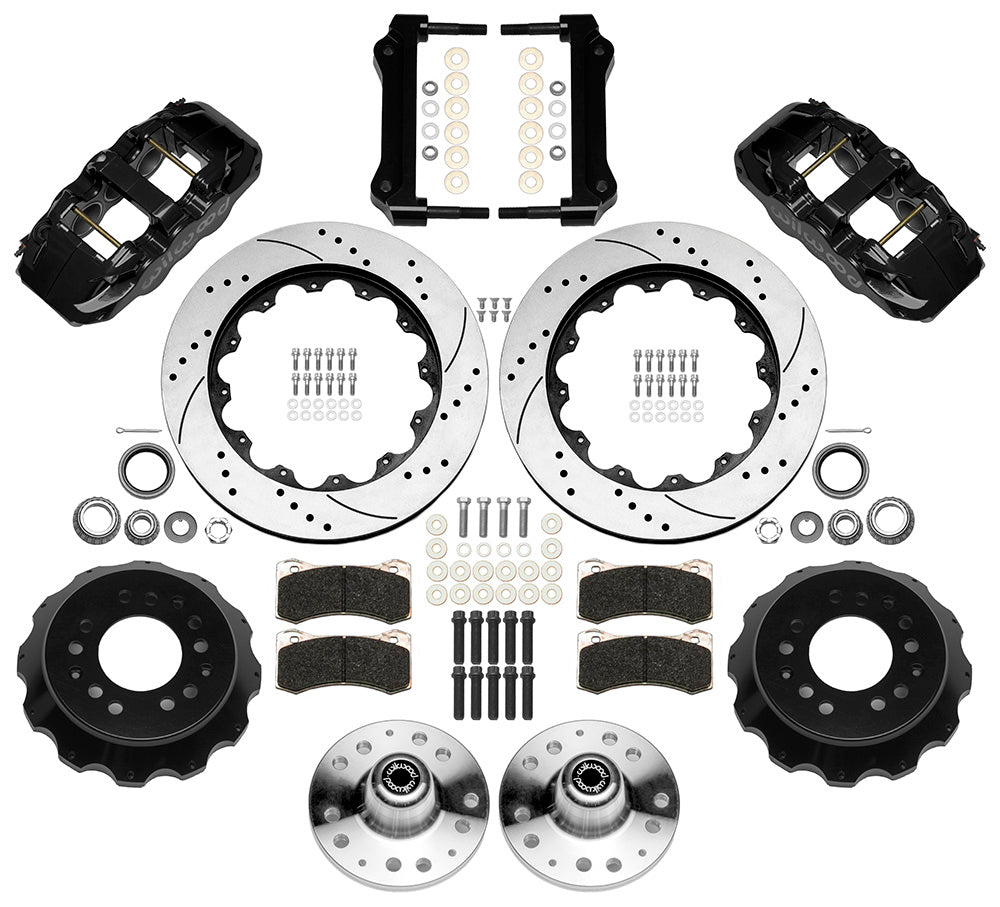

• Hardware supplied: mounting hardware, wheel hubs
• Components to provide separately: spindles, master cylinder, brake booster
• Manufacturer part number: 140-16197-D
• Kit function: Front Brake Kits - Street Performance; front position
• Quantity: Sold as a kit.

Fitment & Compatibility

Only the specified second-generation Wilwood AFX 2-inch drop ProSpindle is the intended hub interface; this is not a stock-spindle conversion. DS-1432 identifies ProSpindle kit 831-15958, purchased separately. The full application chart below identifies the vehicle and chassis combinations that use that spindle. The +0.65-inch hub change moves each wheel outward relative to the catalog comparison, so assess tire-to-fender space as well as caliper-to-wheel clearance. Supply suitable hydraulic hoses separately and match the front and rear brake balance.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.
