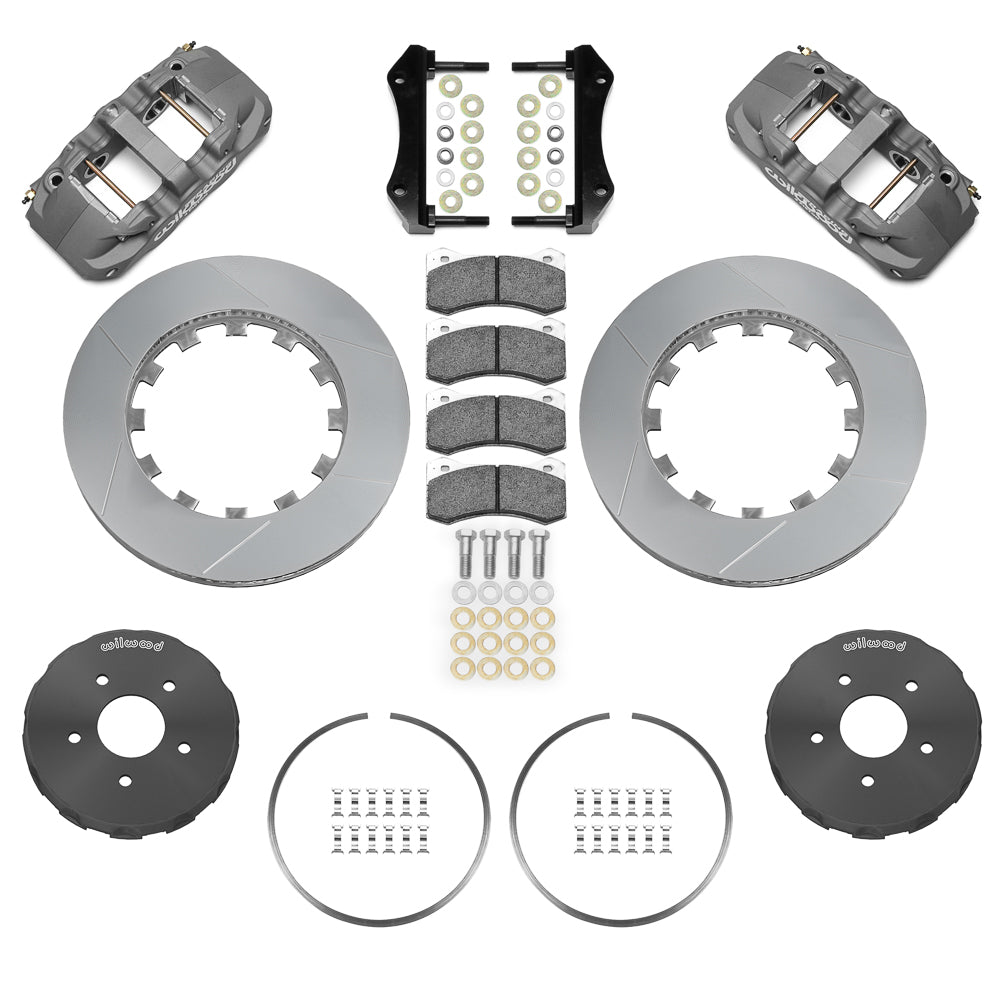

Wilwood gray anodized front brake kit for AERO4-ST GM road-race applications, laid out with slotted 14.00-inch rotors, hats, pads, brackets and hardware

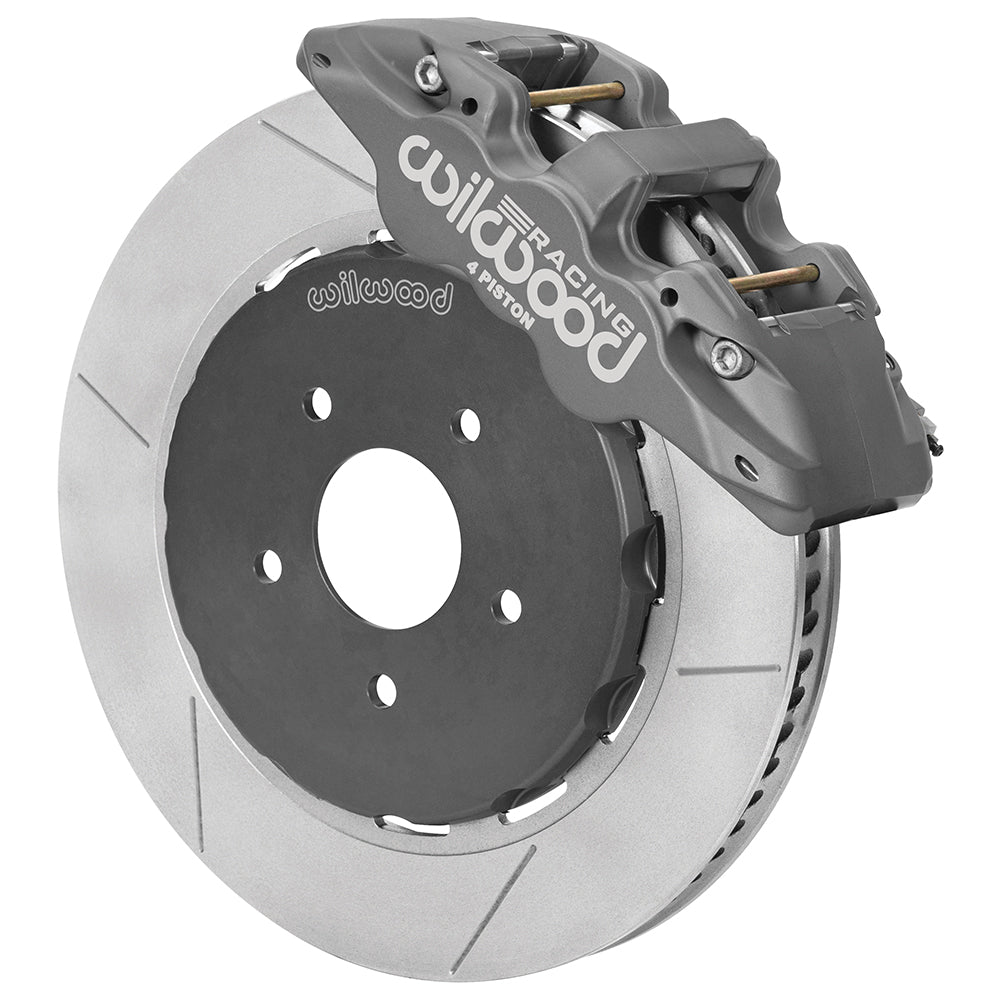

Wilwood gray anodized front caliper beside the assembled 14.00-inch slotted rotor for the AERO4-ST GM road-race brake conversion
Wilwood gray anodized front brake kit for AERO4-ST GM road-race applications, laid out with slotted 14.00-inch rotors, hats, pads, brackets and hardware
Wilwood gray anodized front caliper beside the assembled 14.00-inch slotted rotor for the AERO4-ST GM road-race brake conversion

Wilwood AERO4-ST Front Road Race Brake Kit, 14-Inch Dynamic Lug Drive GT Rotors, for Listed GM Hub-Spindle Applications

SKU: 140-16181

$3,310.24 Sale
Shipping calculated at checkout.

Fitment questions?

Call (855) 786-7101 or text (801) 304-3141. We check fitment by VIN.

Shipping policyRefund policy

Product details

Four-piston AERO4-ST front race brakes use 14-inch dynamic lug-drive rotors for listed GM applications. Verify spindle type and model-specific hoses. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

  • Manufacturer part number: 140-16181
  • Kit function: Front Brake Kits - Road Race; front position
  • Service calipers: 4-piston AERO4; Type III Anodize
  • Caliper mounting: Radial; piston material: Thermlock
  • Rotor package: 14.00 × 1.25 inches; Spec-37 Iron; vented; GT Slotted
  • Supplied service-pad compound: BP-35
  • Hydraulic inlet: 1/8-27 NPT
  • Rotor / hub bolt-circle specification: 5 x 4.75 in; 5 x 120.65 mm
  • Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
  • Hydraulic flexlines: Not included; listed optional reference 220-8176, 220-9100 must be checked for the actual application
  • Included installation items: mounting hardware
  • Not supplied: spindles, wheel hubs, master cylinder, brake booster
  • Quantity: Sold as a kit.

Fitment & Compatibility

This four-piston AERO4-ST package is a road-racing conversion with BP-35 high-temperature pads and Thermlock pistons. The table below separates Corvette C5/C6 and Cadillac XLR applications from older GM vehicles that require the listed Ridetech hub spindle. Factory early-GM spindles are not interchangeable with that aftermarket interface. Dynamic lug-drive hats carry the directional GT rotors. Select the flexline kit for the actual year and spindle arrangement; hoses are not included. Sustained low-temperature operation of racing pads accelerates rotor and pad wear.

Wilwood product specifications · Installation instructions

For a race-brake fitment check backed by more than 20 years of parts experience, send PMB Performance the hub, spindle, wheel and complete brake-system details. Selection depends on the actual competition installation.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.

Years Make Model Submodel Model option Front brakes Rear brakes Kit application Notes
1962-1967 Chevrolet Chevy II w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1963-1964 Chevrolet Corvette w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1972 Buick Skylark w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1969 Buick Special w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1972 Buick Sportwagon w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1972 Chevrolet Chevelle w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1972 Chevrolet El Camino w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1971 Oldsmobile 442 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1972 Oldsmobile Cutlass w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1972 Oldsmobile F85 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1972 Oldsmobile Vista Cruiser w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1969 Pontiac Beaumont w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1972 Pontiac GTO w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1972 Pontiac LeMans w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1964-1970 Pontiac Tempest w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1965-1967 Buick Gran Sport w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1965-1982 Chevrolet Corvette w/ Ridetech Hub Spindle Drop Disc Front Kit 1, 2, 3, 4, 5, 6, 7
1967-1969 Chevrolet Camaro w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1967-1972 Oldsmobile Cutlass Supreme w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1967-1969 Pontiac Firebird w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1968-1969 Buick GS 350 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1968-1969 Buick GS 400 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1969-1974 Chevrolet Nova w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1970-1972 Buick GS w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1970-1972 Buick GS 455 w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1971-1972 GMC Sprint w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1971-1974 Pontiac Ventura w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1974 Buick Apollo w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1973-1974 Oldsmobile Omega w/ Ridetech Hub Spindle Drop Drum Front Kit 1, 2, 3, 4, 5, 6, 7
1997-2004 Chevrolet Corvette C-5 & Z06 Disc Disc Front Kit 1, 2, 3, 6, 7
2004-2009 Cadillac XLR All Disc Disc Front Kit 1, 2, 3, 6, 7
2005-2008 Chevrolet Corvette Base C-6 - Base Disc Disc Front Kit 1, 2, 3, 6, 7
2006-2008 Chevrolet Corvette Z06 C-6 - Z06 Disc Disc Front Kit 1, 2, 3, 6, 7
2009-2013 Chevrolet Corvette Base Base Disc Disc Front Kit 1, 2, 3, 6, 7
2009-2013 Chevrolet Corvette Z06 Z06 Disc Disc Front Kit 1, 2, 3, 6, 7
2009-2013 Chevrolet Corvette ZR1 ZR1 Disc Disc Front Kit 1, 2, 3, 6, 7
2010-2013 Chevrolet Corvette Grand Sport Grand Sport Disc Disc Front Kit 1, 2, 3, 6, 7
2011 Chevrolet Corvette Z06 Carbon Z06 Carbon Disc Disc Front Kit 1, 2, 3, 6, 7
2013 Chevrolet Corvette 427 427 Disc Disc Front Kit 1, 2, 3, 6, 7
