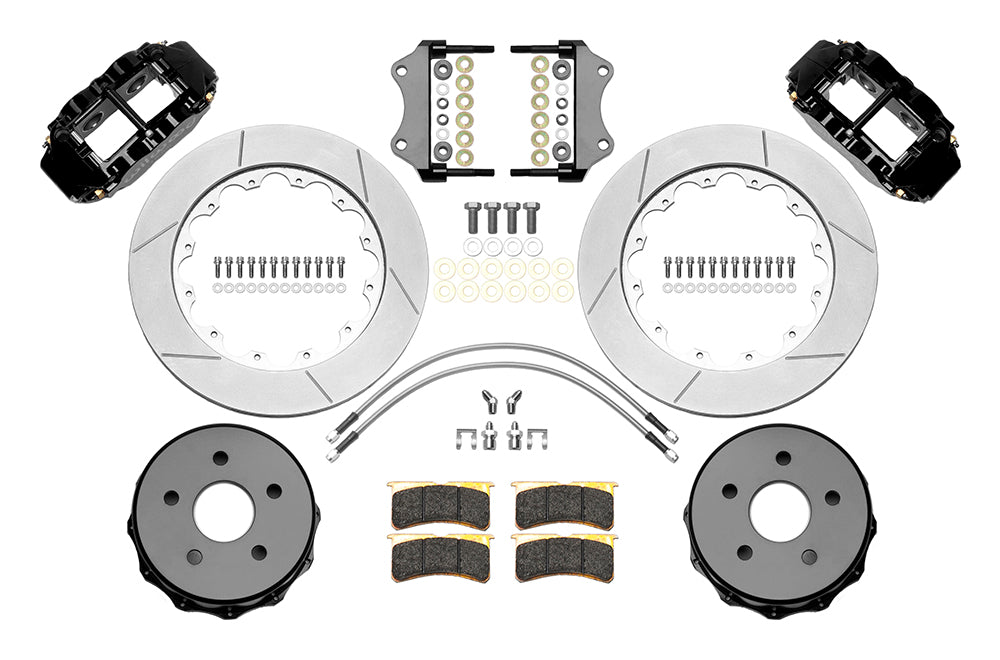

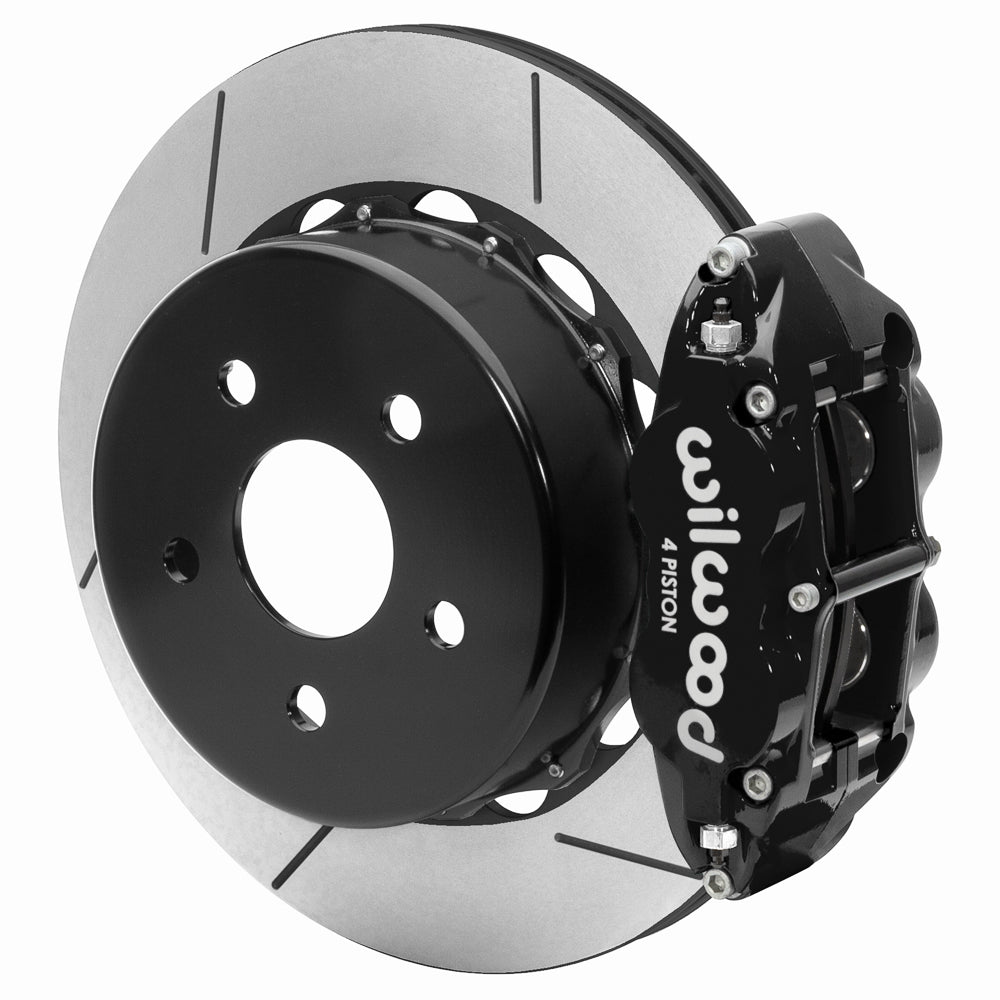

Wilwood Rear Superlite 4R Brake Kit for Jeep Gladiator JT (2020–2021), Black Calipers, 14-Inch GT Rotors and Hoses

Fit black Superlite rear brakes to listed 2020–2021 Jeep Gladiator JT models. GT rotors retain the factory parking brake; check 18-inch wheel space. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Manufacturer part number: 140-16179
• Kit function: Rear Brake Kits - Street Performance; rear position
• Service calipers: 4-piston Forged Narrow Superlite 4R; Black Powder Coat
• Caliper mounting: Radial; piston material: stainless steel
• Rotor package: 14.00 × 0.81 inches; Iron; vented; GT Slotted
• Supplied service-pad compound: BP-20
• Hydraulic inlet: 1/8-27 NPT
• Rotor / hub bolt-circle specification: 5 x 5 in; 5 x 127 mm
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Hydraulic flexlines: Included; 220-16180 (20.00 in)
• Included installation items: mounting hardware
• Not supplied: spindles, wheel hubs, master cylinder, brake booster
• Quantity: Sold as a kit.

Fitment & Compatibility

The listed 2020–2021 Jeep Gladiator JT applications retain the original internal parking brake arrangement. Check the Overland, Rubicon, Sport and listed 2021 trim rows individually rather than applying an open-ended year claim. DS-1393 requires the rear dust shield to be cut for rotor clearance; have that work performed by a competent installer. The included 20-inch braided flexlines must clear moving suspension and wheel parts throughout travel. The original hub is reused. Check the actual wheel shape with the manufacturer diagram; an 18-inch nominal diameter alone is insufficient.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions

PMB Performance has more than 20 years of parts and fitment experience. Provide the model, year, installed spindle or hub, existing brake package and wheel measurements so we can help check the complete conversion.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
