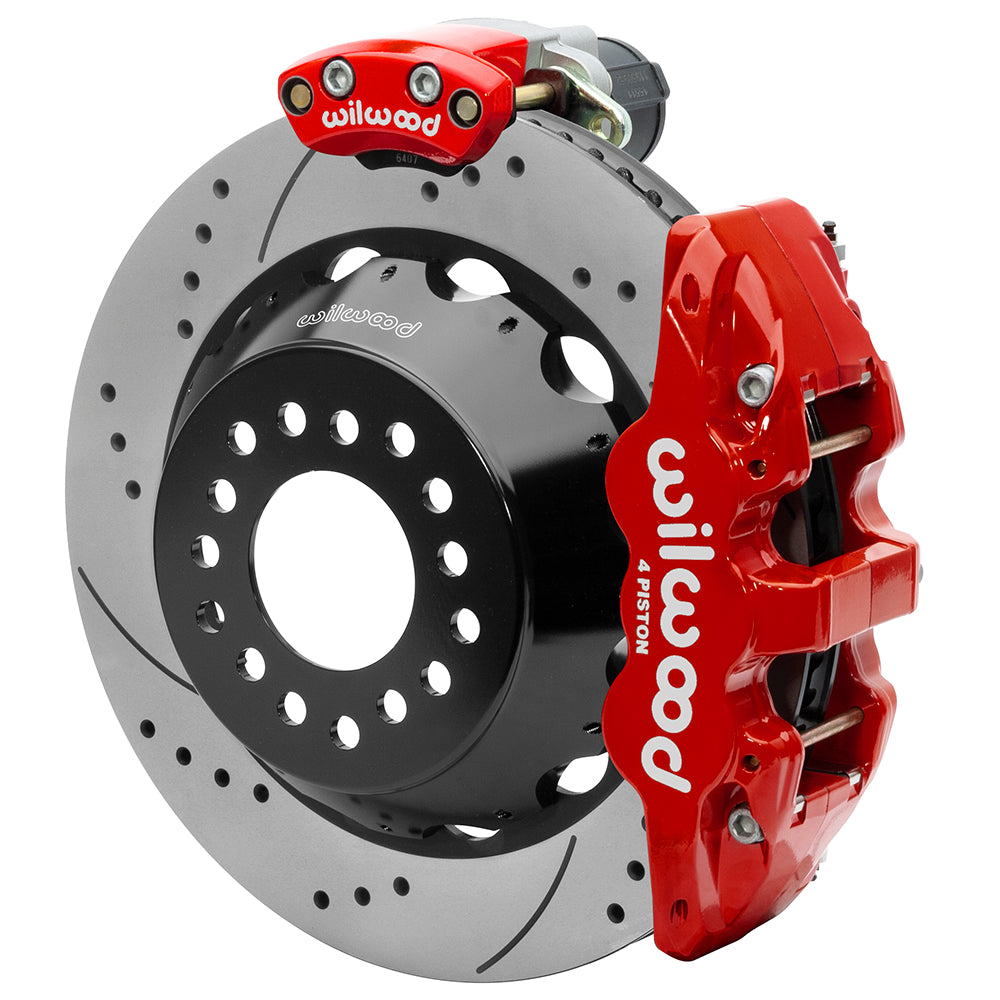

Wilwood 14-Inch Rear SRP Brake Kit with Red AERO4 Calipers and EPB, for Small Ford 2.66-Inch Axle Offset

Add electronic parking to a verified Small Ford rear axle using red AERO4 calipers and SRP rotors. The required axle offset is 2.66 inches. This conversion keeps hydraulic service braking and electric parking in separate calipers selected for the documented mounting arrangement. From its base in Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and components. Bill Wood founded the company in 1977. Its calipers, brake rotors, valves, master cylinders, brake lines and fittings serve street-performance, motorsport and specialized applications. Select each component according to the requirements of the complete braking system.

Technical Details

• Service-brake configuration: 4-piston AERO4; Red Powder Coat
• Brake pad selection supplied: BP-10
• Caliper fluid connection: 1/8-27 NPT
• Caliper mounting: Radial; piston material: stainless steel
• Rotor assembly dimensions and material: 14.00 × 1.10 inches; Spec-37 Iron; vented; SRP Drilled & Slotted
• Nominal wheel diameter reference: 18 in; verify the complete clearance drawing
• Required rear-axle interface: Small Ford; axle offset 2.66 in
• Rotor / hub bolt-circle specification: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm

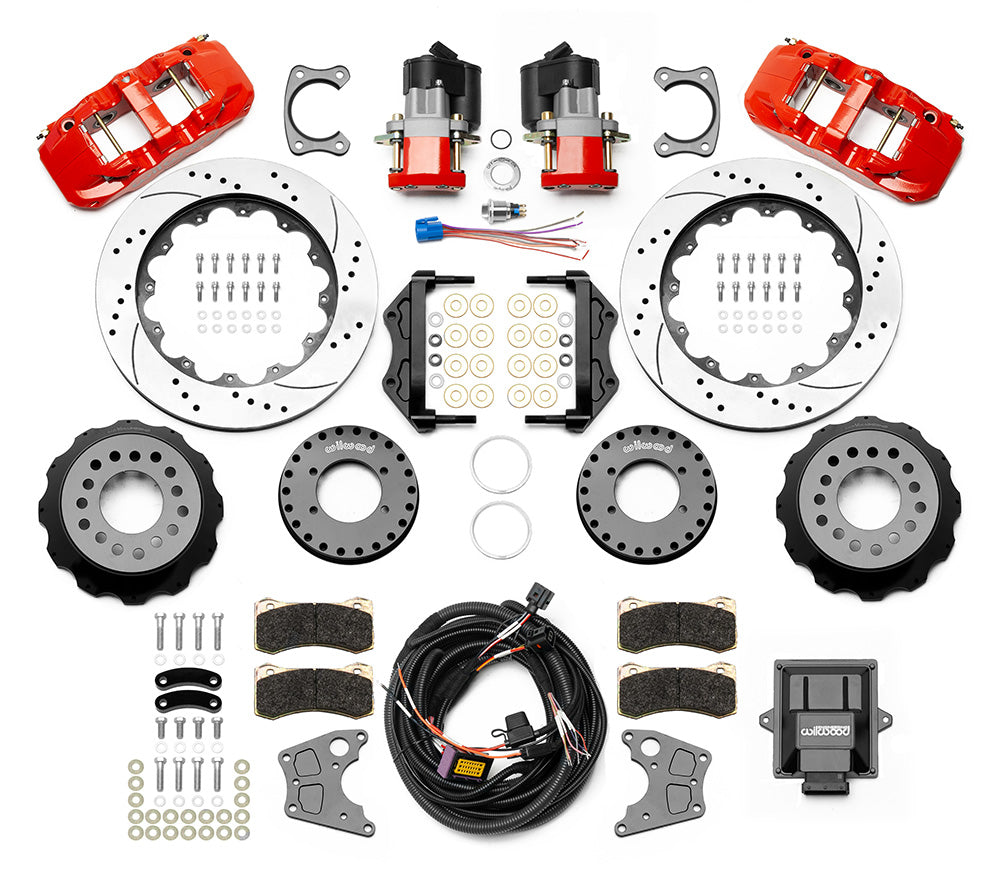

• Included installation items: mounting hardware
• Hydraulic flexlines: Not included
• Quantity: Sold as a kit.
• Separate components required: spindles, wheel hubs, master cylinder, brake booster
• Manufacturer part number: 140-16176-DR
• Kit function: Rear Brake Kits - Street Performance; rear position

Fitment & Compatibility

Measure 2.66 inches of axle offset at the Small Ford housing interface and check all flange and bearing-retainer dimensions before ordering. The Town Car table entry below is conditional on the actual axle configuration; do not select this kit by vehicle identity alone. AERO4 hydraulic calipers provide the service brake, while separate motor-operated parking calipers use the supplied controller and wiring harness. Electronic parking does not replace an emergency stopping system. Allow for wiring protection, the two-piece rotor envelope and separately sourced flexlines.

Use the fitment table below to check each listed year, model and brake configuration alongside these installation requirements.

Wilwood product specifications · Installation instructions · Technical bulletin

With over 20 years of parts and fitment experience, PMB Performance can help compare the actual axle flange, rotor relationship and hydraulic arrangement. Share measurements and photographs of the installed assembly before ordering.
